Delta DVP-PLC User Manual

9 Application Instructions API 150-199
DVP-PLC Application Manual
9-85
K0D214
M1029
DCIMR
Y0
END
K0D210DCIMR Y0
K0D206DCIMR Y0
K0D202DCIMR Y0
= D0 K1
= D0 K2
= D0 K4
M0
K1 D0
D0
M0 M1029

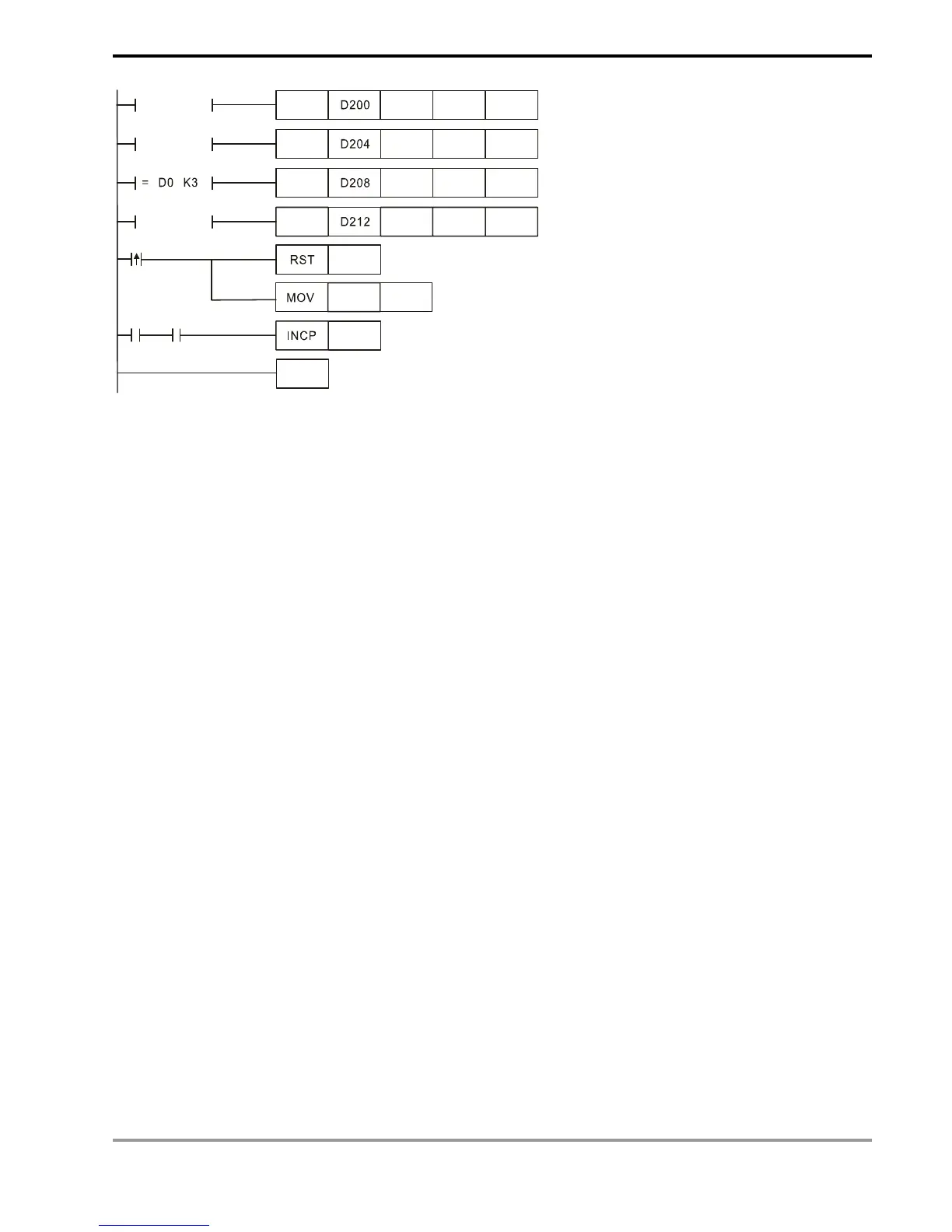

3. Motion explanation:
When PLC RUN and M0 = On, PLC will start the drawing of the first segment of the arc. D0 will plus 1 whenever a
segment of arc is completed and the second segment of the arc will start to execute automatically. The same
motion will keep executing until the fourth segment of arc is completed.

Delta DVP-PLC Specifications

General

Manufacturer	Delta Electronics
Model	DVP-PLC
Category	Controller
Humidity	5% to 95% RH, non-condensing
Programming Language	Ladder Diagram (LD), Instruction List (IL), Sequential Function Chart (SFC)
CPU Type	Various, depending on the specific model within the DVP series (e.g., ES2, EX2, SX2, SA2, EH3, etc.)
Operating Temperature	Typically 0°C to 55°C (32°F to 131°F)
Storage Temperature	Typically -25°C to 70°C (-13°F to 158°F)
