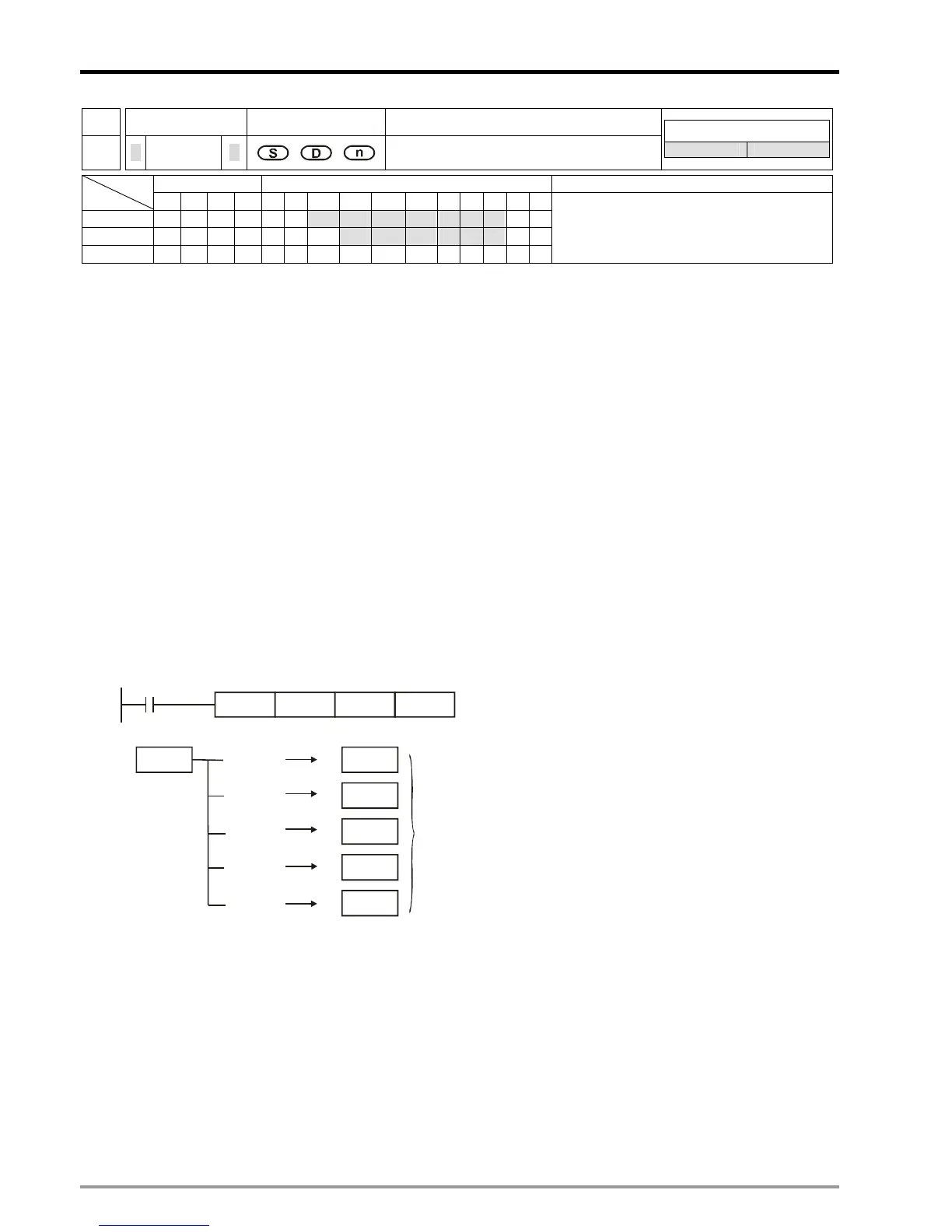

5 Categories and Use of Basic Application Instructions
DVP-PM Operation Instruction
5-32
API Mnemonic Operands Function
16
D FMOV P
Fill Move
Controllers
20PM 10PM
Bit Devices Word devices Program Steps Type
OP
X Y M S K H KnX KnY KnM KnS T C D E F
S
* ** * * * * * ***
D
* * * * * *
n * *
FMOV, FMOVP: 7 steps
DFMOV, DFMOVP: 13 steps
Operands:
S: Source of data D: Destination of data n: Number of data to be moved
Explanations:
1. The contents in n registers starting from the device designated by S will be moved to n registers starting from
the device designated by D. If n exceeds the actual number of available source devices, only the devices that
fall within the valid range will be used
2. When FMOV is used as 16-bit instruction, Z device cannot be adopted; when FMOV is used as 32-bit
instruction, V device cannot be adopted.
3. When specifying the bit device of KnX(Y/M/S), the starting No. should be a multiple of 16 in octal or decimal
format. For example, K1X0, K4Y20 (octal); K1M0, K4S16 (decimal).
4. The range of n: 1~ 512
Program example:
When X20 = ON, K10 will be moved to the 5 consecutive registers starting from D10
X20
D10 K5
FMOV
K10
K10
K10
K10
K10
K10
K10
D10
D11
D12
D13
D14
n=5
