Delta DVP-PM Series User Manual

8 Application Examples
DVP-PM Application Manual
8-9
further place other operations in the main program.

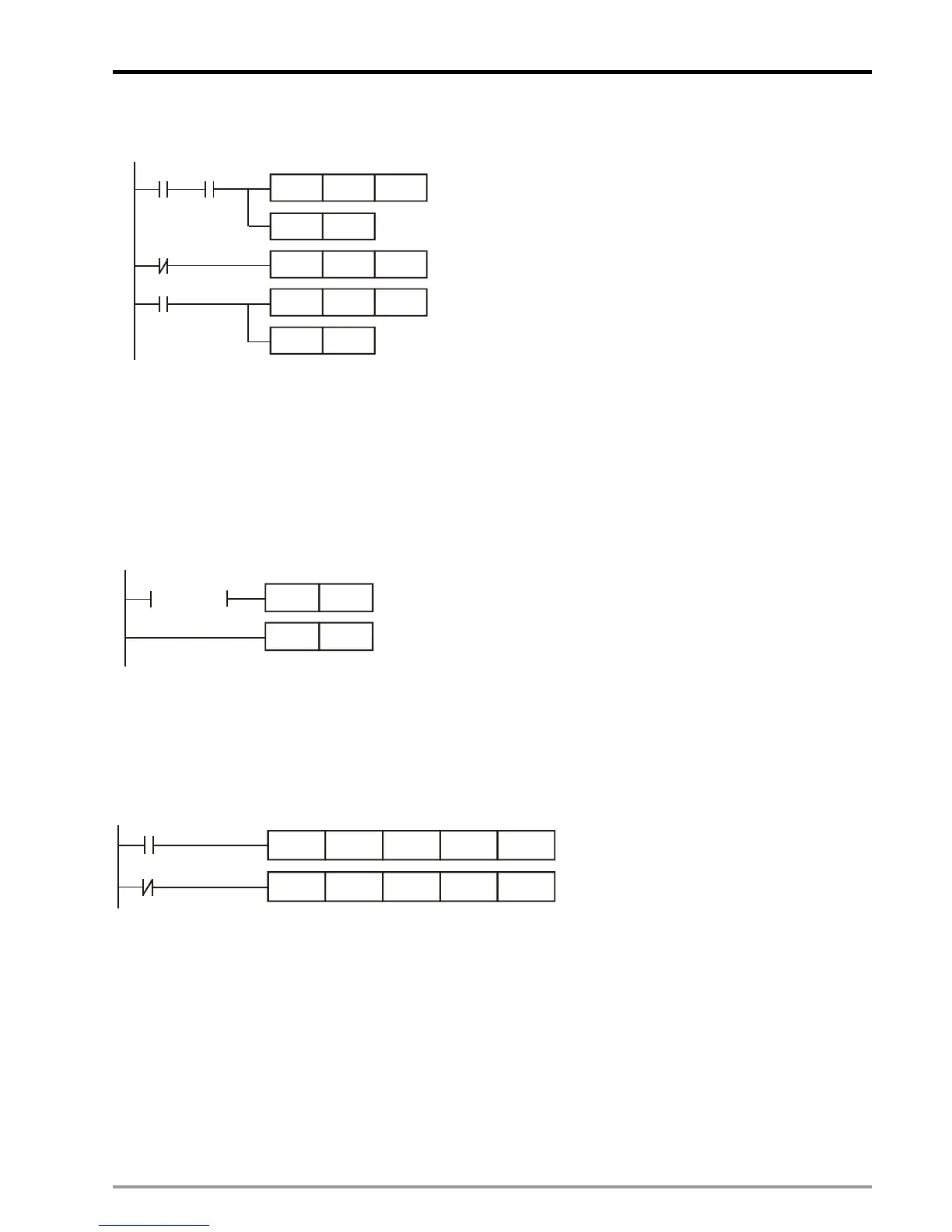

Ladder diagram: Operation:
When OX is ready (M1792 = ON), OX0 motion subroutine can
be enabled by X0
Enable OX0 motion subroutine
Other operations
Other operations
X0
MOV
D1868
H8000
OUT
M1074
M1792
T1
TMR
K100
T0
T0
TMR
K100
T1
OUT Y0
Other operations
3. P255 ~ SRET: set up 3
rd
axis (Z) control system
The 3rd axis control will activate according to the parameter setting of G00 and G01 instructions. When
G00/G01 sets target position of Z-axis (D1328), P255 will be enabled to drive Y7 (3
rd
axis control signal) and
enabe DVP-EH to control the lift or drop of a pen (i.e. up/down movement of Z axis). For more details, please
refer to G00 and G01 instructions in Chapter 6.
Ladder diagram: Operations:
Y7 (control signals for pen lifting) is controlled by the
target position (D1328) of Z axis.
Pause for 0.1 second
D1328 K0
DLD=
OUT Y7
TIM
K10
3-axis control signal (Y7) in P255 of DVP-PM drives the input contact X1 of DVP-EH. When X1 is ON, the
step motor controlled by pulses will lift the pen through DDRVI instruction; when X1 is OFF the step motor will
drop the pen through DDRVI instruction.
The program of DVP-EH:
DDRVI
K5000
X0
X0
K200000
Y0 Y1
DDRVI
K-5000
K200000
Y0 Y1
Connect the input devices Y0 and Y1 in DVP-EH to the pulse input terminals on the step motor.
4. P0 ~ SRET: 2-axis (X, Y) interpolation control
After converting the letters or graphs into G-Codes (NC-Codes), place the G-Code into OX0 subroutine but
into P0 subroutine in order to simplify the program. Operate the P0~SRET section with the 3 sections above
and the drawing of letters or graphs can be performed.
