Delta DVP-PM Series User Manual

9 Electrical CAM
DVP-PM Application Manual
9-8
 Method 3: Apply Virtual Master
In virtual Master mode, you can catch the output signals from internal Y axis as the signal source of
Master for X axis or Z axis. In this case, you don’t have to apply additional wirings.
To apply virtual Master mode, set ON M1909 and A0 will be internally linked with FP of Y axis; set ON
M1910 and B0 will be internally linked with RP of Y axis. After the 2 flags are ready, DVP-PM will
automatically apply the internal counter C200 as the source of counting pulses for virtual Master.
However, when M1909 is OFF and M1910 is ON, the source of Master will be the FP1signals of Y axis
on the previous MPU (DVP-PM).
In addition, care should be taken when setting the pulse type of MPG and the pulse type of Y axis.
Pulse types of the two sides should be the same. Please refer to 9.2.1.3 for the setting.

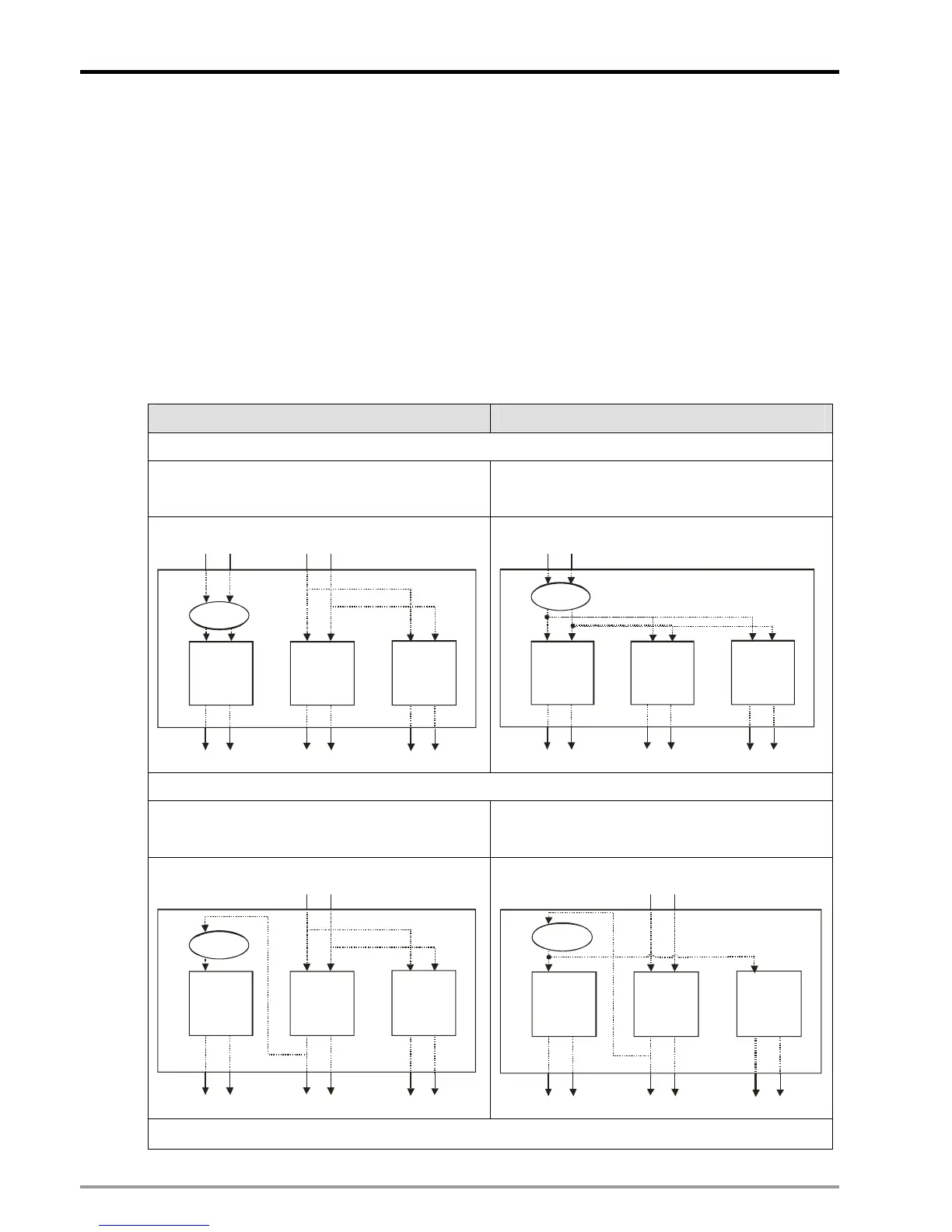

Single CAM Multiple CAM
 M1909 = OFF, M1910 = OFF
The source signal of X axis is from A0, B0 input of
MPG0, and the source signal of Y, Z axis is from
A1, B1 input of MPG1.
The source signal of X, Y, Z axis is from A0, B0
input of MPG0.
A0 B0
C200
A B
FP RP
FP0 RP0
FP1 RP
1
FP2 RP2
A B
A B
X axis
Y axis Z axis
A1 B1
FP RP FP RP
20PM
MPG0 MPG
1
A0 B0
C200
A B
FP RP
FP0 RP0
FP1 RP1
FP2 RP2
A B
A B
X axis
Y axis
Z ax is
FP RP FP RP
20PM
MPG0
 M1909 = ON, M1910 = OFF
The source signal of X axis is from FP1 (Y axis as
virtual Master), and the source signal of Y, Z axis
is from A1, B1 input of MPG1.
The source signal of X, Z axis is from FP1 (Y axis
as virtual Master), and the source signal of Y axis
is from A1, B1 input of MPG1.
C200
A B
FP RP
FP0 RP0
FP1 RP1
FP2 RP2
A B
A B
X axis Y axis
Z ax is
A1 B1
FP RP FP RP
20PM
MPG1
C200
A B
FP RP
FP0 RP0
FP1 RP1
FP2 RP2
A B
A B
X ax is
Y axis Z axis
A1 B1
FP RP FP RP
20PM
MPG1
 M1909 = ON、M1910 = ON
