9 Electrical CAM
DVP-PM Application Manual
9-22

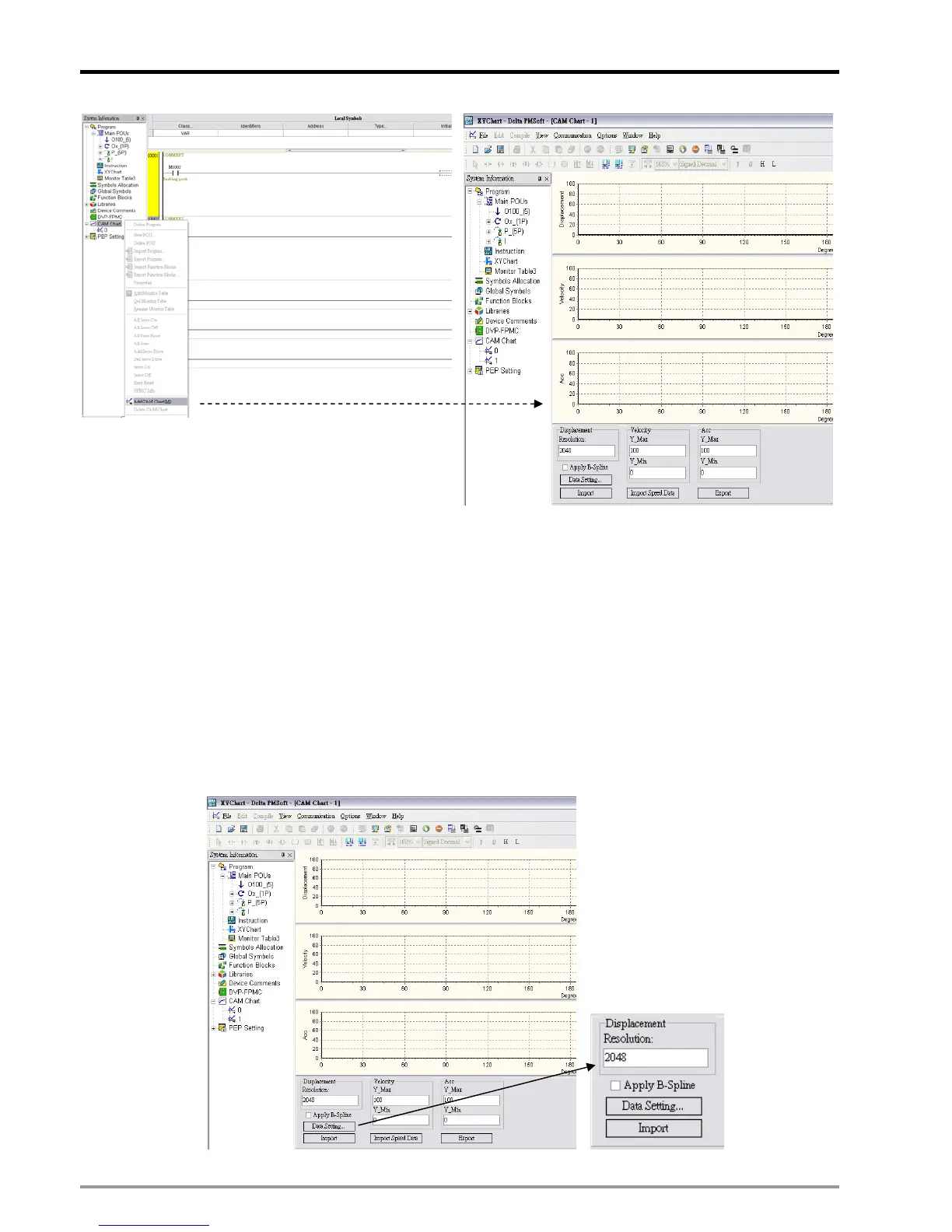

There are 4 parts in CAM Chart: Displacement / Degree (relative position of Master/Slave), Velocity / Degree
(relative speed of Master/Slave), Acc Speed / Degree (relative acceleration speed of Master/Slave), and Data
Setting Area in the bottom.
îš„ The first 3 charts indicate user-defined E-CAM Data with horizontal axis as Master position, and vertical
axis as Slave position, speed ratio of Slave/Master, and acc speed ratio of Slave/Master.
îš„ Data Setting Area:
1. Displacement Resolution: set up E-CAM Data resolution. Set range:10~2048 points. 1 point of E-CAM
Data occupies 10 steps of user program area (Total 64k steps). Max 2048 points can be set up for a
CAM Chart as below.
To Next Page
