9 Electrical CAM
DVP-PM Application Manual
9-35
Smooth curve interpolation conducts interpolation and magnification on data points of Master, so as to
smoothen the modified curve with higher resolution. The interpolation results will elevate the stability and
smoothness for machine operation.

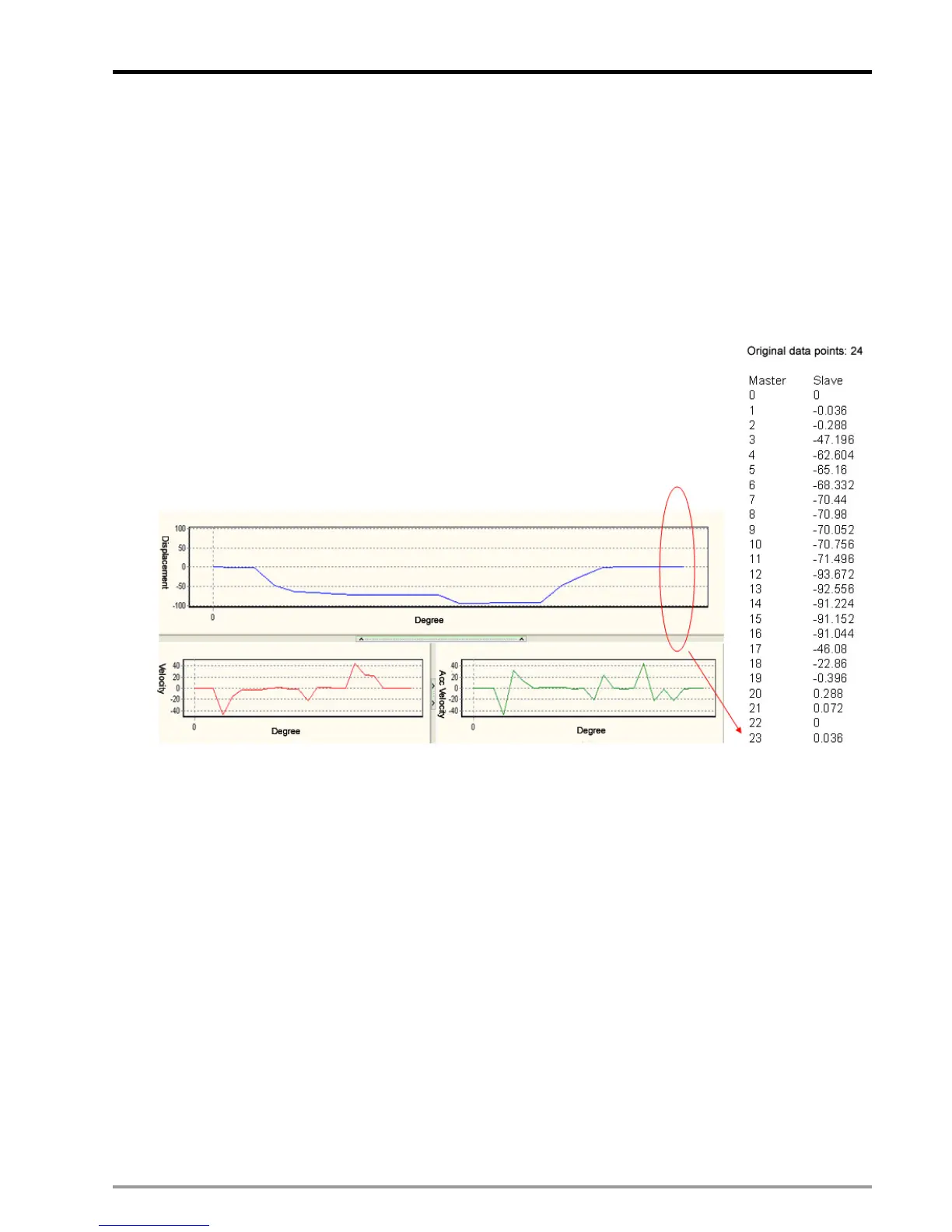

In the sample below, the original data points are 24 points, and the modified length of Master will be 10,000
points. In this case, the magnification rate of point-to-point section will be 10,000/23=434. On this basis,
PMSoft will automatically calculate the data of the inserting points according to the number of inserting points
and the smoothing coefficient. After this, the modified 10,000 points E-CAM curve will be drawn according to
the calculated results in the same proportion of the previous E-CAM curve.
After the interpolation, the original points of Master 0~23 are modified as 10,000 points as below.
