Delta MS300 - Communication Cable Specifications

MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual
10
3.2 Communication Cable

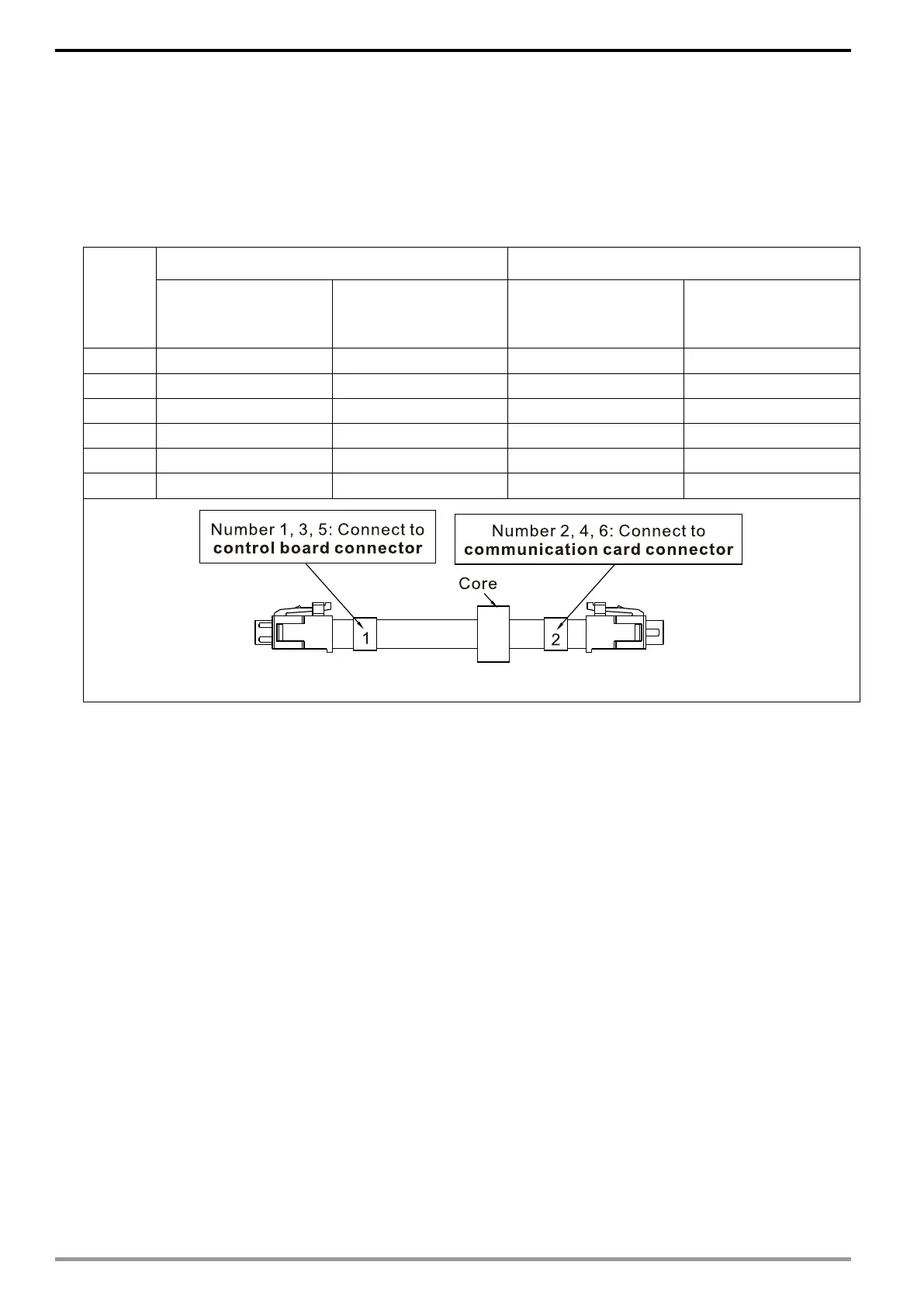

 Three types of cable length are available. As shown in the Fig.3-5, there are
numbers on two ends of the communication cable near the connector. The
connection methods of the communication card for different frames are shown in the
table below. Read the descriptions and numbers on the cables before wiring.
Frame
Mounting Position 1 Mounting Position 2
Connect to
control board
connector
Connect to
communication
card connector
Connect to
control board
connector
Connect to
communication
card connector
A
1
2
3
4
B
1
2
3
4
C
3
4
3
4
D
5
6
5
6
E
3
4
3
4
F
3
4
3
4
Fig. 3-5
