MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual
7

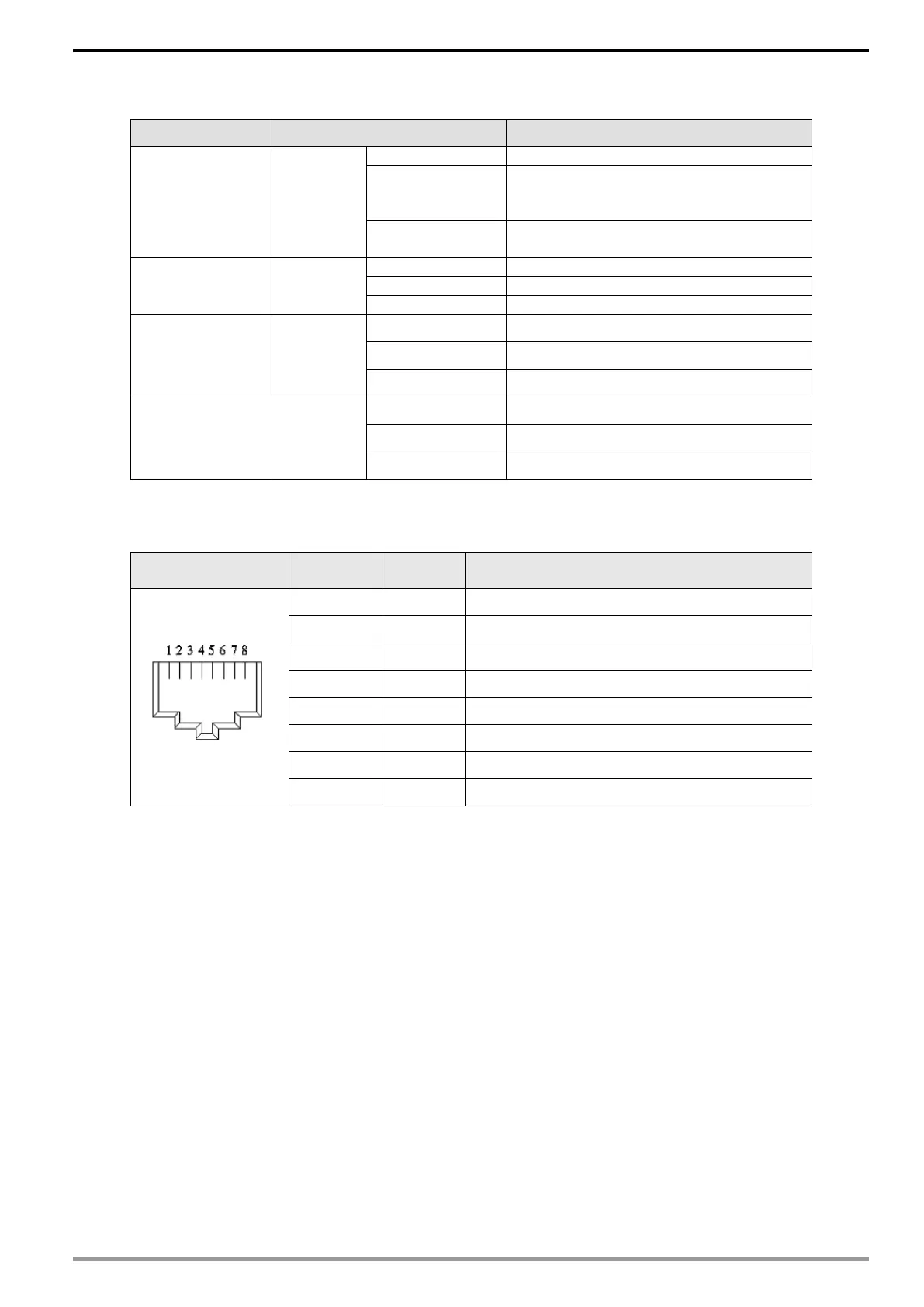

2.3 LED Indicators
Name Indicator Status Indication
BF indicator Red LED
Always on
Disconnected with PROFINET Controller
Flashing
Normal connection, but abnormal
communication with PROFINET
Controller.
Off
Normal connection with PROFINET
Controller
RDY indicator
Red/Green
LED
Always orange
Fault found on the Profinet comm. card.
Flashing
Profinet communication card is activating.
Always green
No fault found.
L/A1 indicator Green LED
Always on L/A1 has network signal.
Flashing L/A1 is handshaking data.
Off L/A1 doesn’t have network signal.
L/A2 indicator Green LED
Always on L/A2 has network signal.
Flashing rL/A2 is handshaking data
Off L/A2 doesn’t have network signal.
2.4 Definition of RJ45 Pin
RJ45 Pinout
Diagram
PIN Definition Description
1 Tx+ Positive pole for data transmission
2 Tx- Negative pole for data transmission
3 Rx+ Positive pole for receiving data
4 -- N/C
5 -- N/C
6 Rx- Negative pole for receiving data
7 -- N/C
8 -- N/C

Delta MS300 Specifications

General

Series	MS300
Cooling	Fan cooling
IP Rating	IP20
Input Voltage	3-phase 380 ~ 480VAC
Output Current	Varies by model
Overload Capacity	150% of rated current for 60 seconds
Braking Unit	Built-in or optional
Control Method	V/F control, Sensorless Vector Control
Speed Control Range	1:100 (SVC)
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication Interface	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Dimensions	Varies by model
Weight	Varies by model
