Delta MS300 User Manual

MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual
16
3.5 Connecting to the Network

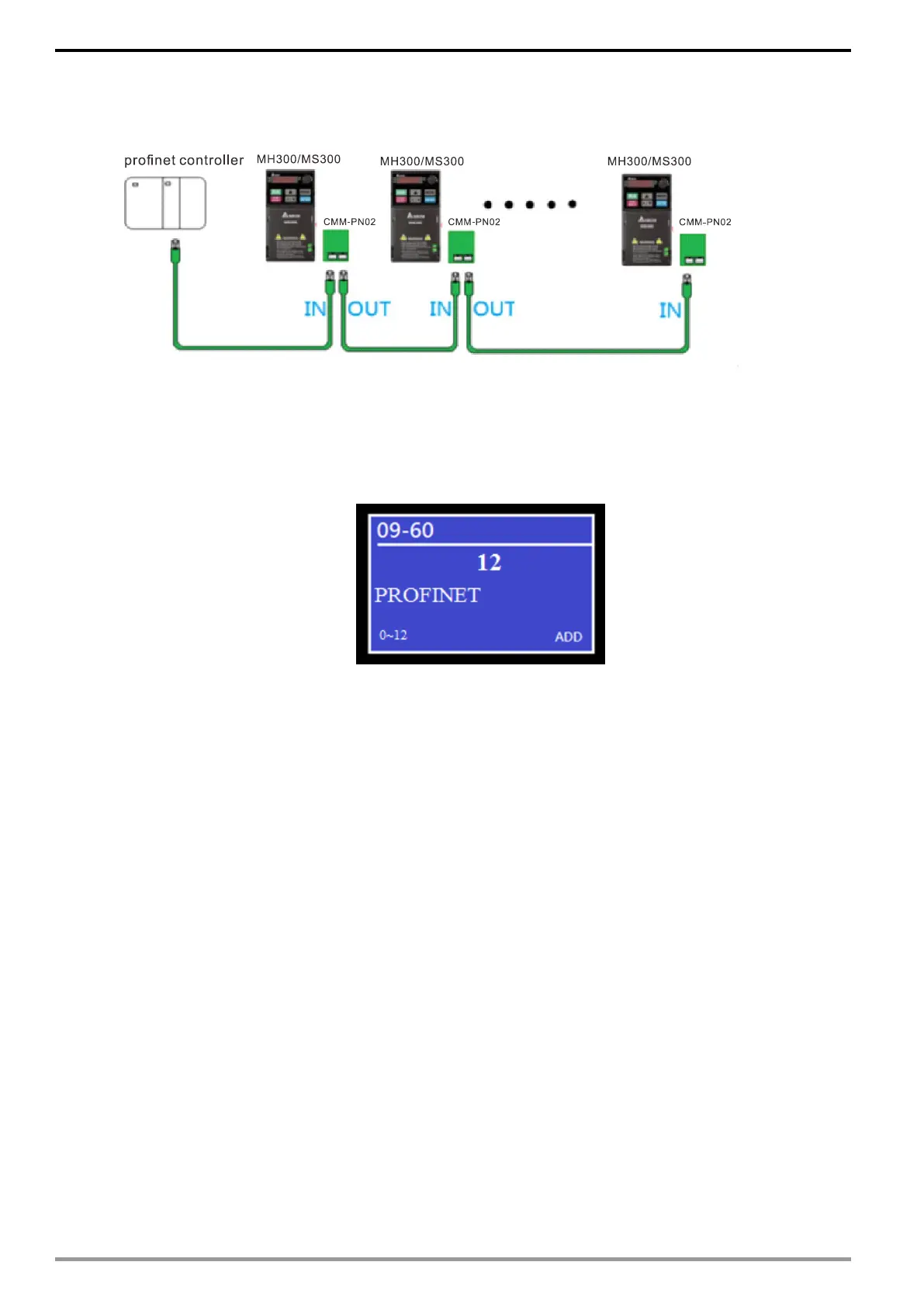

The wiring of CMM-PN02:
When the installation is finished, supply electricity to the drive. The Pr.09-60 of the drive
should be able to display “PROFINET” with a current value of 12. If not, make sure your
version of the drive is correct (MS300/MH300 needs v.2.04 or later versions) and the
communication card is correctly connected.

Delta MS300 Specifications

General

Series	MS300
Cooling	Fan cooling
IP Rating	IP20
Input Voltage	3-phase 380 ~ 480VAC
Output Current	Varies by model
Overload Capacity	150% of rated current for 60 seconds
Braking Unit	Built-in or optional
Control Method	V/F control, Sensorless Vector Control
Speed Control Range	1:100 (SVC)
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication Interface	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Dimensions	Varies by model
Weight	Varies by model
