6 Connection Configuration to Host Controller
This section introduces how Siemens STEP 7 and TIA PORTAL PLC integral software, as
well as Siemens PLC S7-300 and S7-1500 use PROFINET to connect MS300/MH300

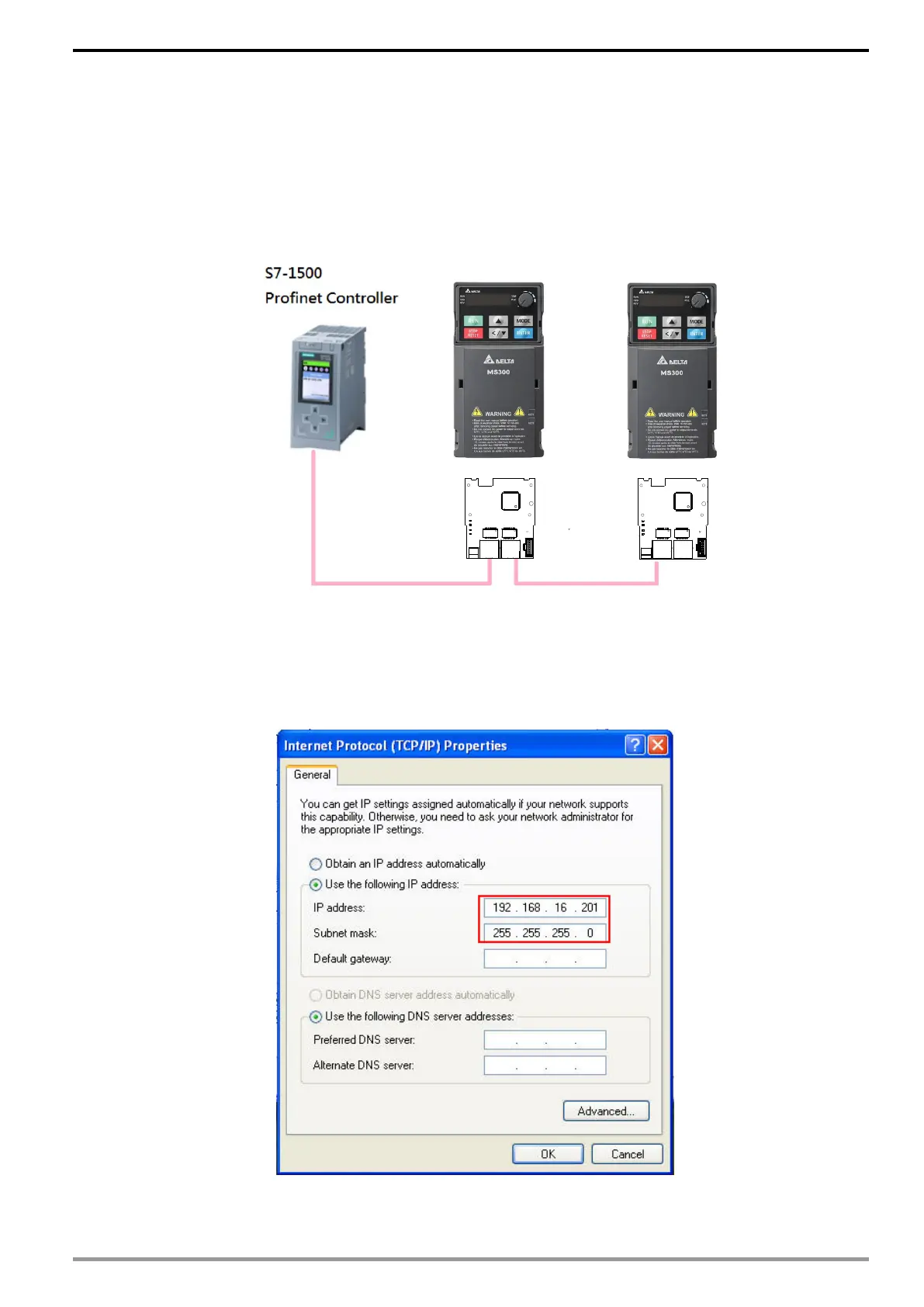

drives. The connection configuration shows as the figure below. Siemens PLC connects
CMM-PN02 communication card of MS300/MH300 drive through the EtherNet.
Delta MS300 Delta MS300
CMM-PN02 CMM-PN02
6.1 Basic Configuration

The Settings for Communication
1. Start your PC and set IP address configuration as static IP address. It is recommended
to set the address to 192.168.xxx.xxx in the red box as the figure below shows.

Delta MS300 Specifications

General

Series	MS300
Cooling	Fan cooling
IP Rating	IP20
Input Voltage	3-phase 380 ~ 480VAC
Output Current	Varies by model
Overload Capacity	150% of rated current for 60 seconds
Braking Unit	Built-in or optional
Control Method	V/F control, Sensorless Vector Control
Speed Control Range	1:100 (SVC)
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication Interface	RS-485
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Dimensions	Varies by model
Weight	Varies by model
