Delta MS300 - Product Appearance and Components Overview; Exterior Dimensions; Introduction to Each Component

MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual
6
2 Product Appearance and Components

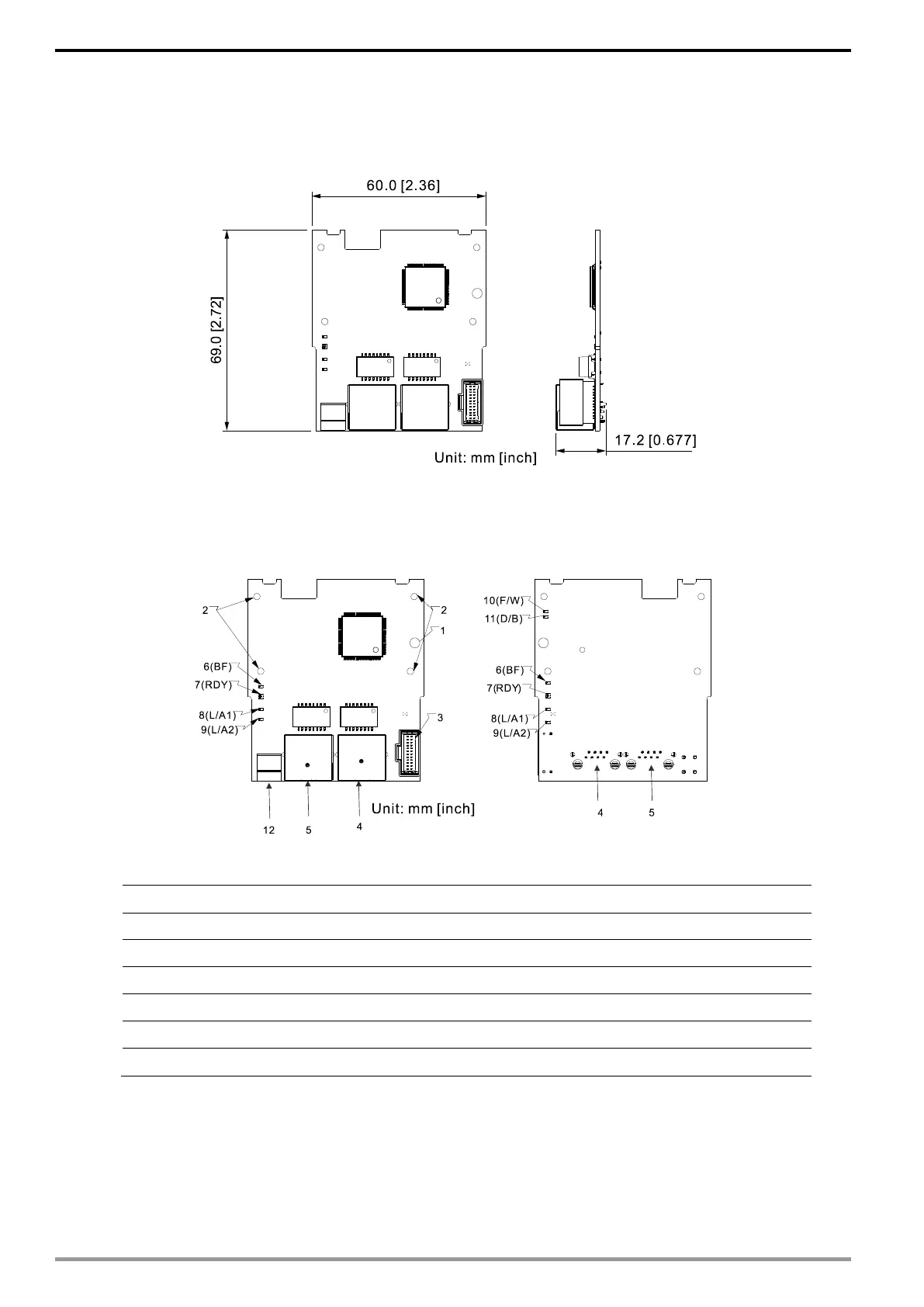

2.1 Exterior Dimensions
Unit: mm [inch]
2.2 Introduction to Each Component
1. Screw fastening hole 9. Link PHY2 indicator (Port 2)
2. Positioning hole for communication card 10. F/W indicator
3. Control Panel connection port 11. D/B indicator
4. RJ45 connection port (Port 2) 12. PE grounding terminal
5. RJ45 connection port (Port 1)
6. BF out indicator
7. Ready out indicator
8. Link PHY1 indicator (Port 1)
