3.3.2 MS300 Mounting Position 2 (See Section 3.1 for Details on Mounting Position) -
Frame A–D (Not Applicable for Frame E and F)
Installation method: Front-mount the communication card by connecting flat cables to
the control board.
Turn off the power of the motor drive, and then remove the front cover, as shown in Fig.3-11.
Assemble the communication card: Detach the upper cover of the mounting box for the
communication card by slipping and make the terminal block and connector of the
communication card face upward. Fix the front end of the communication card to the slots,
and then rotate it, as shown in the Fig.3-12.
Make sure that two clips properly engage the communication card on the backside, and then
tighten the screws (suggested torque value: 4–6 kg-cm [3.5–5.2 lb-in.] [0.39–0.59 Nm]), as
shown in Fig.3-13.
Assemble the connection cable: Connect the connector at one end of the connection cable
to the control board connector. Refer to Section 3.2 for more information on connection
methods.
Attach the front cover of the drive.
Assemble the connection cable: Connect the connector at the other end of the connection
cable to the connector of the communication card.
Attach the upper cover to the mounting box for the option card, as shown in Fig.3-14.
Assemble the mounting box for the option card: Aim the four clips of the mounting box for
the option card at the slots on the upper cover of the motor drive, and then press downward
to have the four clips engage the slots, as shown in the Fig.3-15.
Assembly is completed, as shown in Fig.3-16.

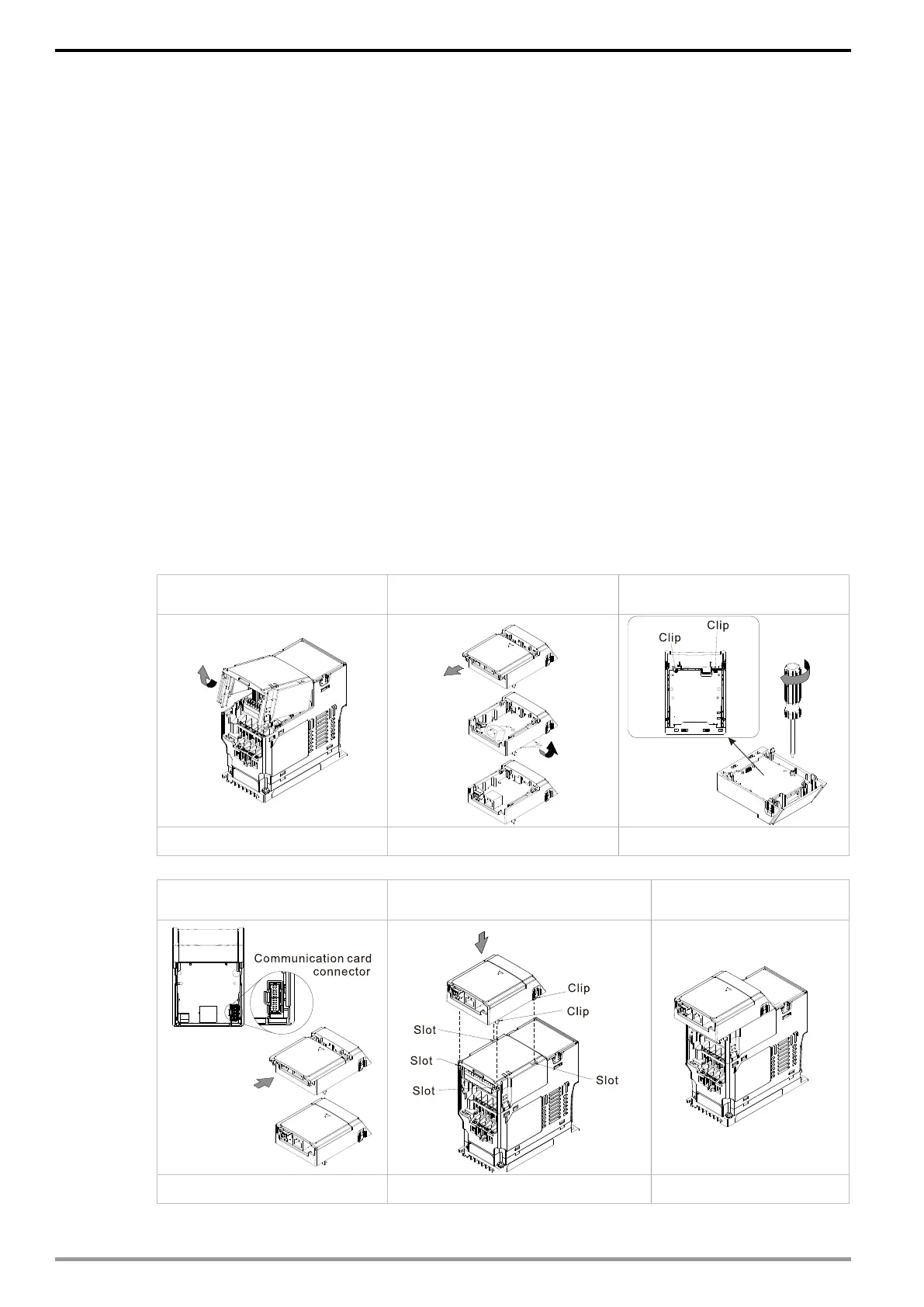

Step1: Remove the
front cover
Step 2: Assemble the
communication card
Step 3: Tighten the
screws
Fig. 3-11
Fig. 3-12 Fig. 3-13
Step 4: Attach the upper
cover to the mounting box
Step 5: Assemble the mounting
box for the option card
Step 5: Assembly
completed
Fig. 3-14
Fig. 3-15 Fig. 3-16
