MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual

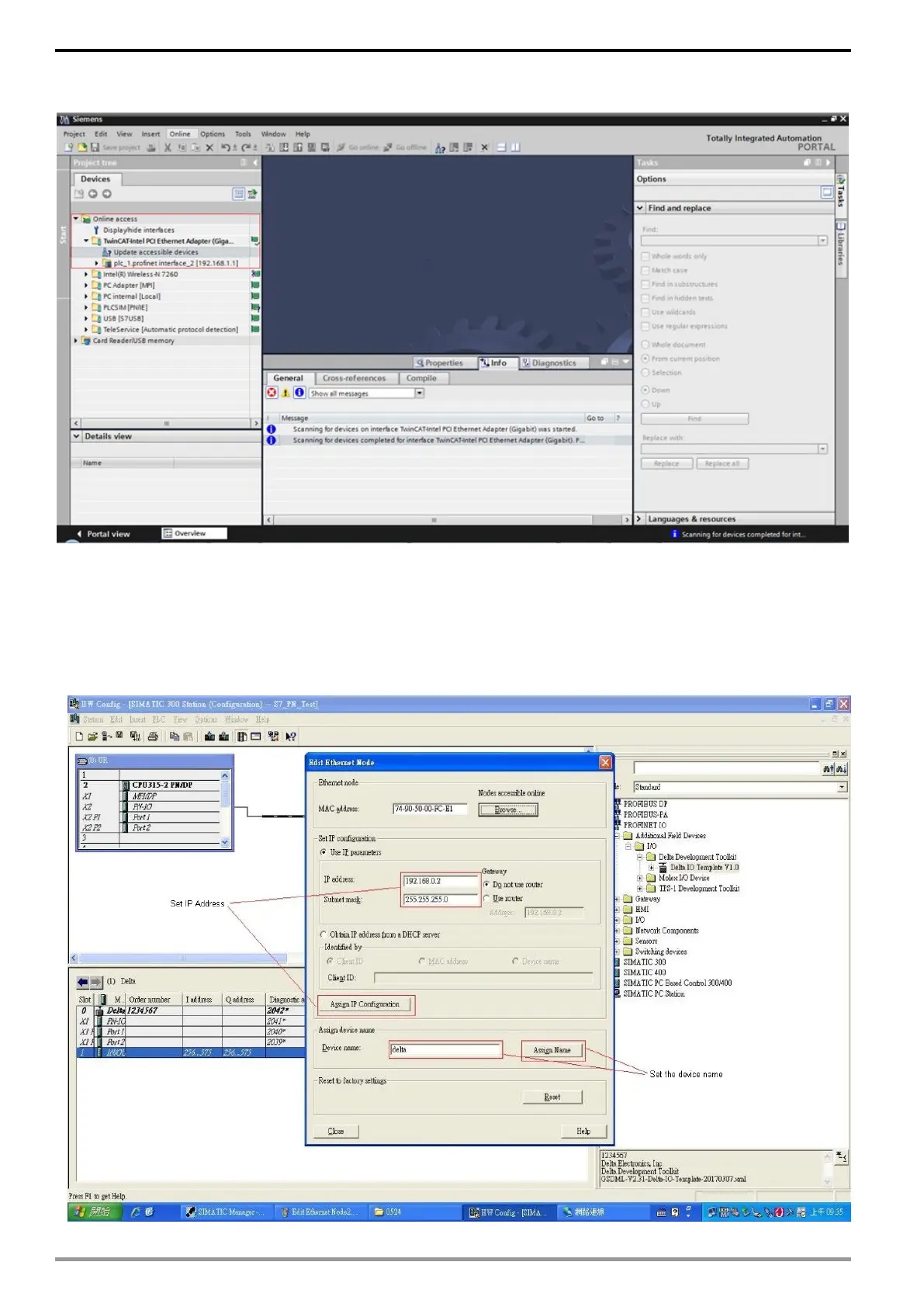

Select Online access, choose your PC network interface card, and then click Update
accessible devices continuously to search PLC.
NOTE: When you start TIA PORTAL, do not enable wireless network because it may lead to TIA
PORTAL’s false detection. If it happens (physical interface card cannot be found),
close the wireless network connection first and then restart TIA PORTAL.
4. Modify the name of CMM-PN02. The steps are the same as those for setting PLC address.
For STEP7, set the drive name as the figure below shows.
