Delta NT Series User Manual

43
Ultron NT Series
4. Connect the communication cables
&RQQHFWWKHWZRFDELQHWV¶SLQVFRPPXQLFDWLRQFDEOHV
&RQQHFWWKHWZRFDELQHWV¶SLQVFRPPXQLFDWLRQFDEOHV
Please see Figure 4-38.
5. Connect the control cables
&RQQHFWWKHSLQVÀDWZLUH$WRWKH0ERDUG¶V&10
&RQQHFWWKHSLQVÀDWZLUH$WRWKH0ERDUG¶V&10
Please see to Figure 4-38.
RESERVE
R
UPS OUTPUT
RESERVE
S
T
UPS OUTPUT
T
S
R
BYPASS
S
T
GROUND
BATT.CABINET
ſ
When use non-standard type of
external battery cabinet, please
refer to the user manual for
proper sizing of short-circuit
protection.
FAN
FUSE FUSE
P.S.
INPUT
INPUT
BATTERY
R
S
T
RECTIFIER
20-PINS FLAT WIRE (A4) &
CNM208 CONNECTION
14-PINS FLAT WIRE (A6) &
CNM202 CONNECTION
20-PINS COMMUNCATION
CABLES CONENCTION
18-PINS COMMUNCATION
CABLES CONENCTION

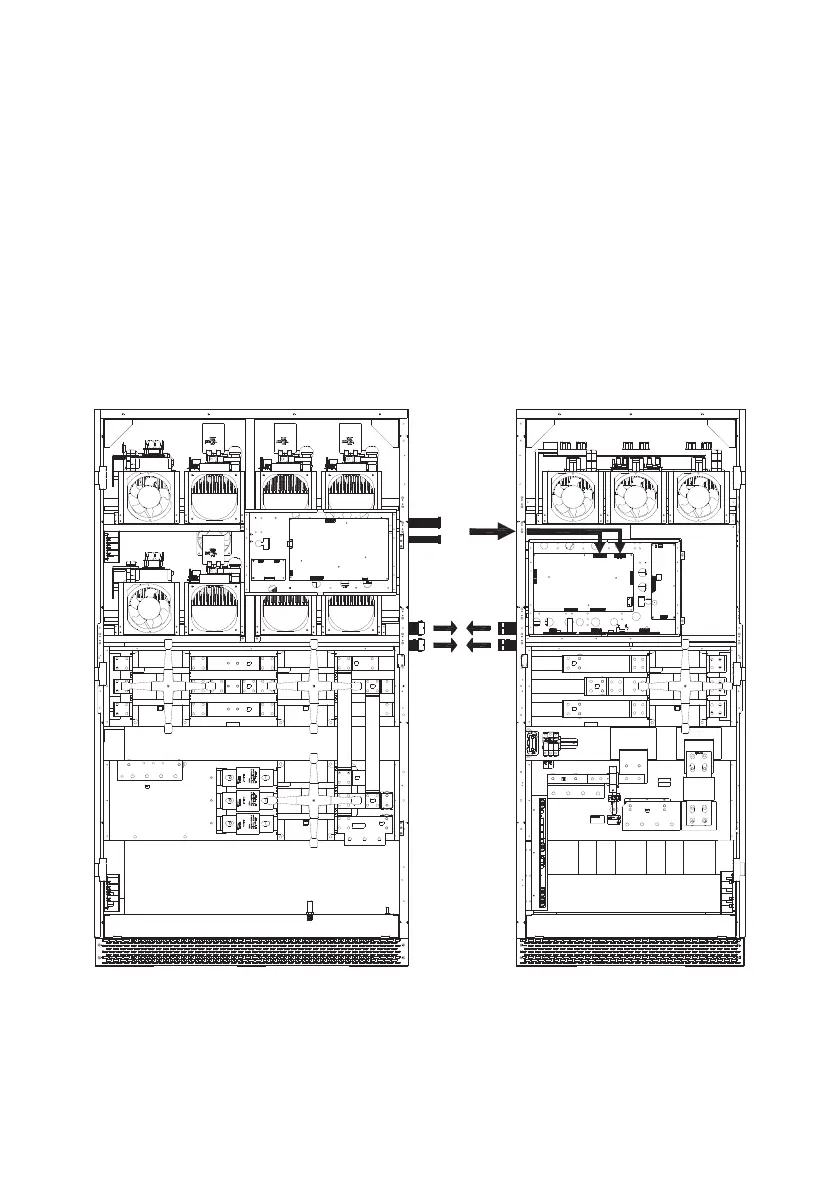

Figure 4-38
