Denon AVC-A1SR

11
ENGLISH
• The composition of the signals output from the different channels and the frequency response are adjusted
automatically according to the combination of speakers actually being used.
2

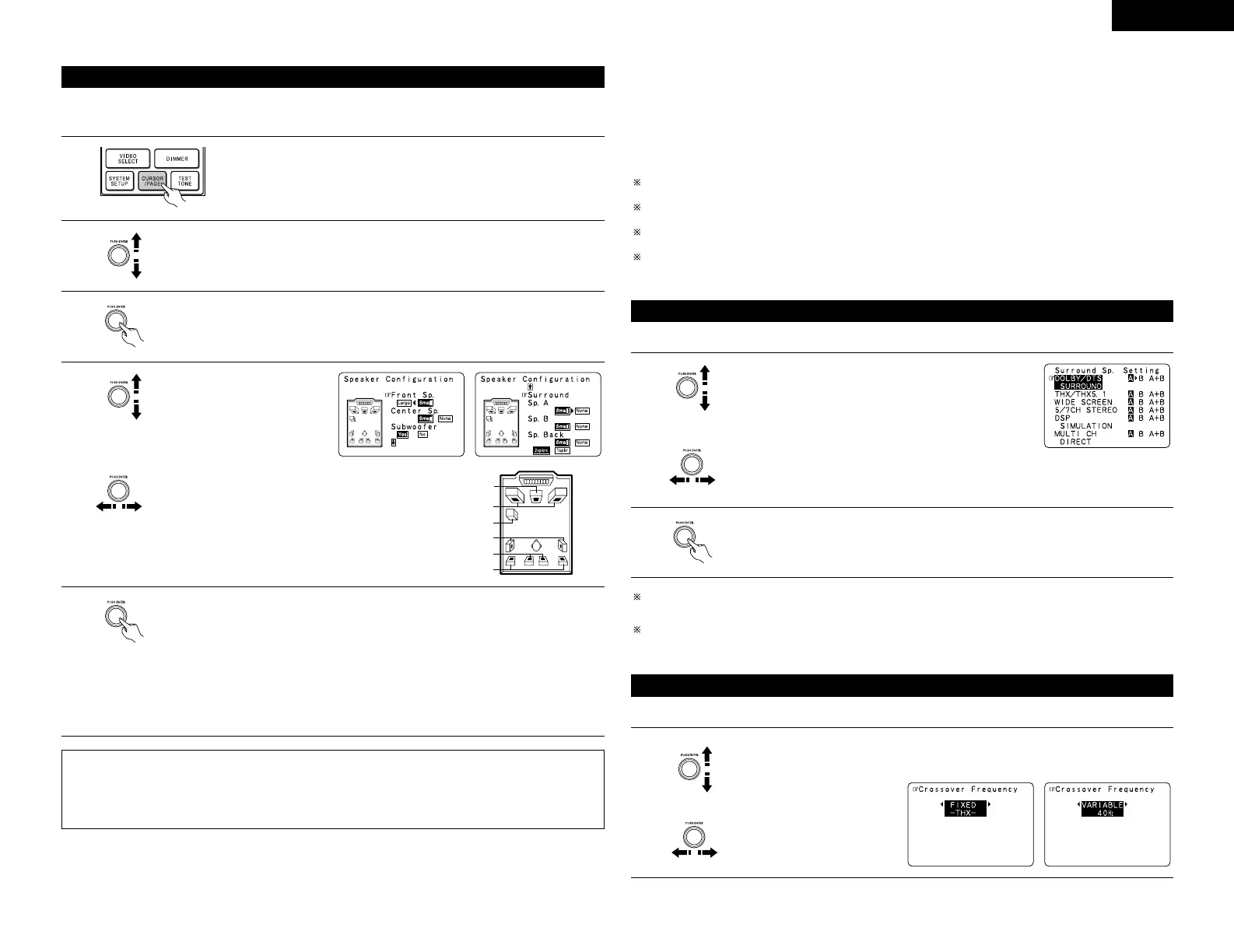

At the System Setup Menu select “Speaker Configuration”.
Setting the type of speakers
1
Press “CURSOR/PAGE” at the center of the bottom line on the “AV AMP’s”
“SETTING 3/5” page so that this part is displayed in half-tone dot mesh.
Make the system setups by pushing the jog stick on the remote control unit
forward and backward, left and right.
3
Switch to the speaker configuration screen.
Center Sp.
Front Sp.
Subwoofer
Surround Sp. A
Surround back Sp.
Surround Sp. B
NOTE:
• Select “Large” or “Small” not according to the actual size of the speaker but according to the speaker’s
capacity for playing low frequency (bass sound below frequency set for the Crossover Frequency mode and
below) signals. If you do not know, try comparing the sound at both settings (setting the volume to a level
low enough so as not to damage the speakers) to determine the proper setting.
4
Set whether or not speakers
are connected and, if so, their
size parameters.
• To select the speaker
• To select the parameter
5
Enter the setting.
a) If no surround speakers are used (if “None” is set for both A and B):
The Crossover Frequency screen appears.
b) If both surround speakers A and B are used (if either “Large” or “Small” is set for both
A and B):
The surround speaker setting screen appears.
c) When “Front” is set to “Large” and “Subwoofer” is set to “Yes”, the set switches to
the subwoofer mode.
d) If “None” is set for surround speakers A:
“None” is automatically set for surround speakers B and surround back speaker.
• Parameters
Large....................Select this when using speakers that can fully reproduce low sounds of below 80 Hz.
Small....................Select this when using speakers that cannot reproduce low sounds of below 80 Hz with
sufficient volume.
When this setting is selected, low frequencies of below 80 Hz are assigned to the
subwoofer.
None…….............Select this when no speakers are installed.
Yes/No…..............Select “Ye s” when a subwoofer is installed, “No” when a subwoofer is not installed.
2spkrs/1spkr ........Select the number of speakers to be used for the surround back channel.
If the subwoofer has sufficient low frequency playback capacity, good sound can be achieved even when
“Small” is set for the front, center and surround speakers.
To take full advantage of the performance of the Home THX certified speaker systems, set the front, center
and surround speaker size parameters to “Small” and the subwoofer to “Yes”.
For the majority of speaker system configurations, using the SMALL setting for all five main speakers and
Subwoofer On with a connected subwoofer will yield the best results.
When “Front” is set to “Small”, “Subwoofer” is automatically set to “Yes ”, and when “Subwoofer” is set
to “No”, “Front” is automatically set to “Large”.
Speaker type setting when using both surround speakers A and B
If “Small” is set for either surround speakers A or B, the output is the same as when “Small” is set for both
A and B.
For the “WIDE SCREEN” and “5/7CH STEREO” DSP simulation modes, the surround speakers can be set
separately.
• At this screen preset the surround speakers to be used in the different surround modes.
Selecting the surround speakers for the different surround modes
1
When either “Large” or “Small” has been set for both
speakers A and B on the System Setup Menu (when using
both A and B surround speakers), the surround speaker
setting screen appears.
Select the surround speakers to be used in the different
surround modes.
• To select the surround mode
• To select the surround speaker
A: When using surround speakers A
B: When using surround speakers B
A+B: When using both surround speakers A and B
2
Enter the setting.
When “Front” is set to “Large” and “Subwoofer” is set to “Yes”, the set switches to
the subwoofer mode.
Setting the Crossover Frequency
1
Select the “Crossover Frequency” mode.
• Set the crossover frequency and subwoofer mode according to the speaker system being used.
Select the Frequency.
