Denon AVR-1508 Service Manual

294
AVR-1708/1508/688/588/488 AVC-1508

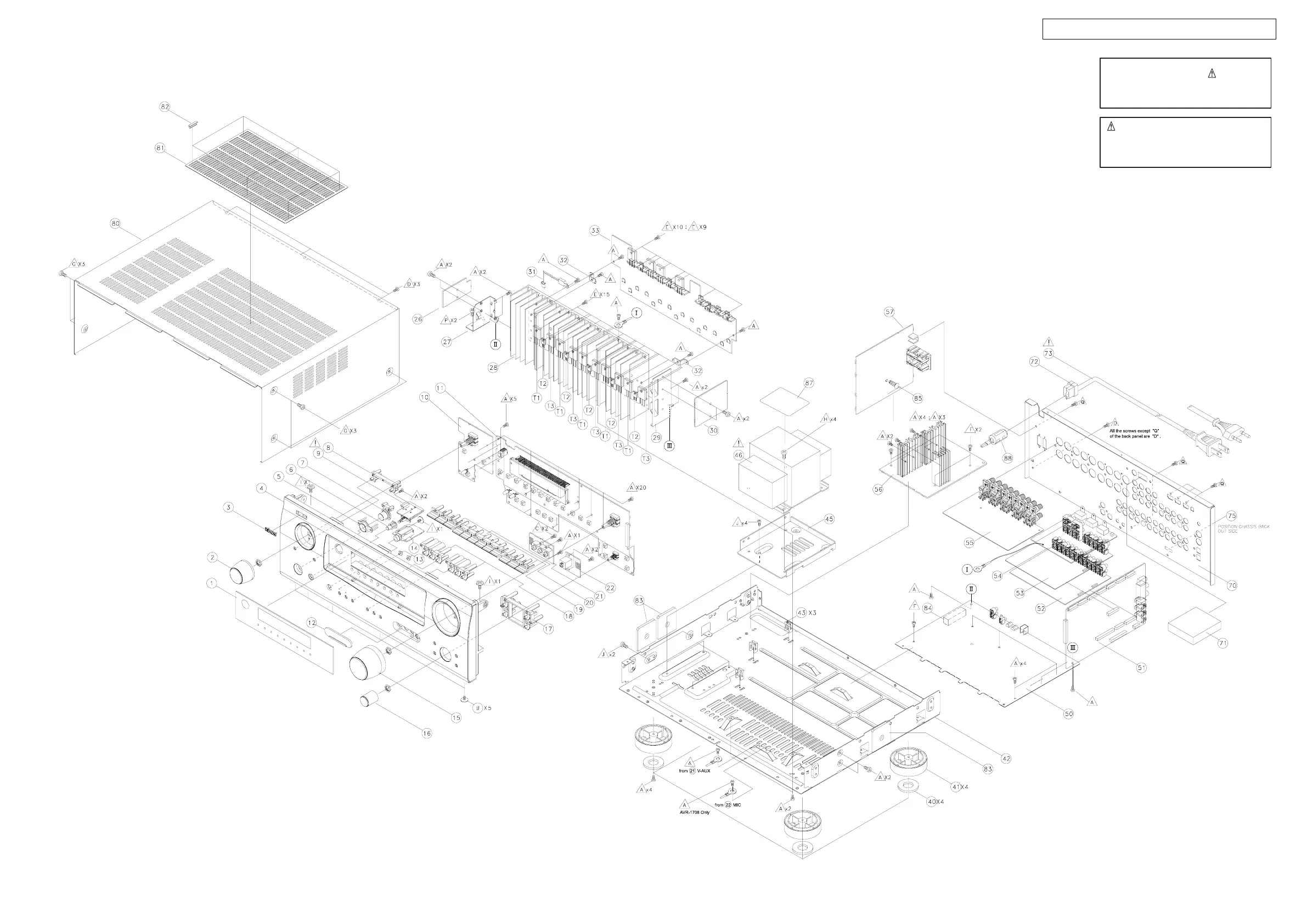

EXPLODED VIEW (for AVR-1708,AVR-1508 U.S.A.,Canada,Europe & Taiwan R.O.C. model)
Parts marked with this symbol have critical
characteristics.
Use ONLY replacement parts recommended by
the manufacturer.
WARNING:
印の部分は安全を維持するために重要
な部品です。従って交換時は必ず指定の
部品を使用してください。

Denon AVR-1508 Specifications

General

HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
AM/FM Tuner	Yes
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	98 dB
THD	0.08%
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Tuner Type	Digital
Preset Station Qty	56
HDMI Switching	Yes
Tuning Range	FM: 87.5 - 108 MHz, AM: 522 - 1620 kHz
Audio D/A Converter	24-bit / 192 kHz
Output Impedance / Channel	8 Ohm
Frequency Response	10 Hz - 100 kHz
Channels	7.1
Power Output	75W per channel (8 ohms, 20Hz-20kHz, 0.08% THD)
Output Power / Channel	75W (8 ohms)
