Denon AVR-1611 Service Manual

11

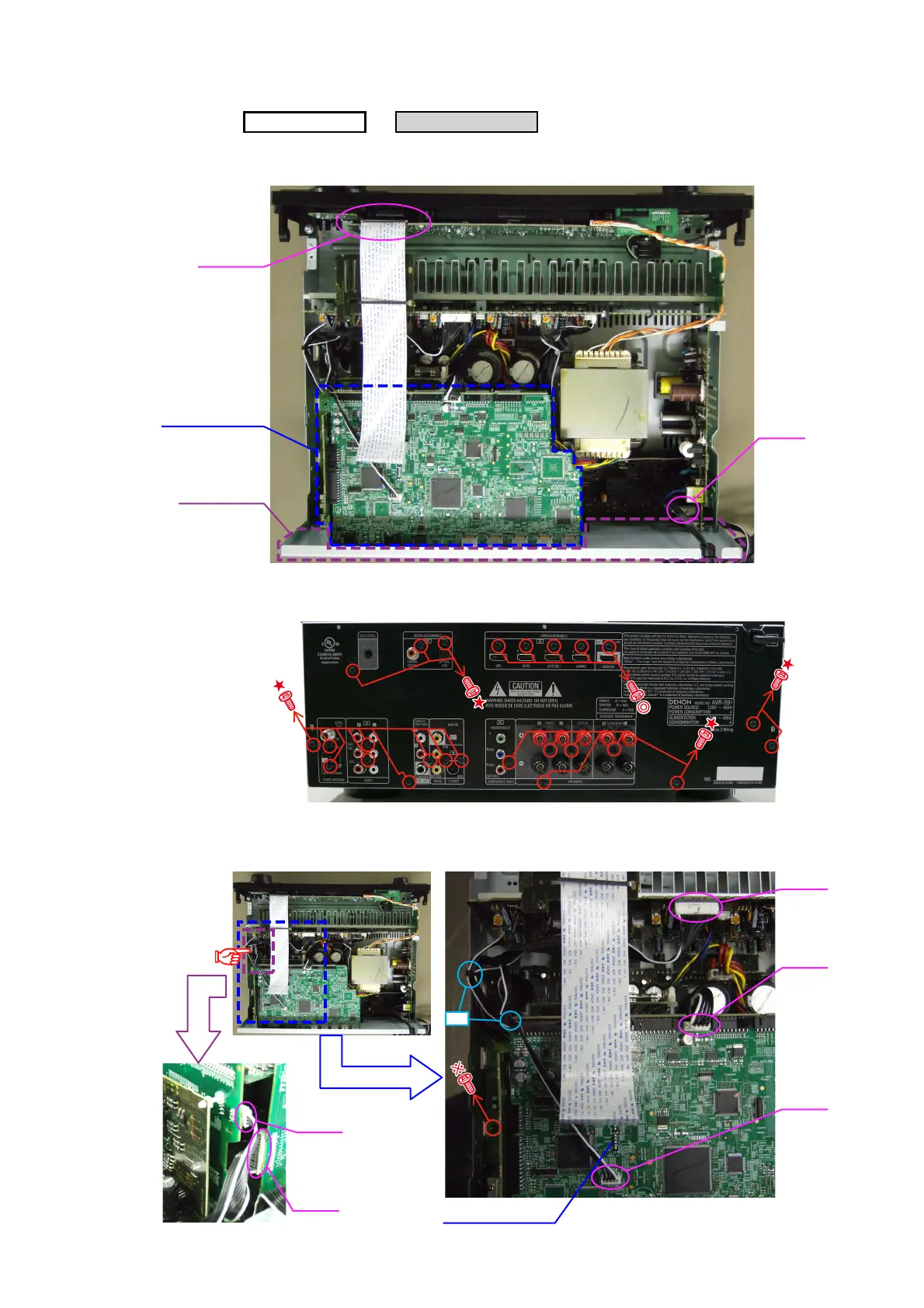

4. HDMI UNIT ASSY
(1) Disconnect the connector wire and FFC cable.
(2) Remove the screws, then remove the BACK PANEL.
(3) Cut the wire clamp band, then disconnect the and connector wires. Remove the screw.
CABINET TOP
HDMI UNIT ASSY
→
Proceeding :
BACK PANEL
HDMI UNIT ASSY
CX100
FFC cable
Direction of photograph: A
CP401
N2501
N2706
HDMI UNIT ASSY
cut
CP13B
CP13A

Denon AVR-1611 Specifications

General

Impedance	6 Ω
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.7 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	110 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
I/O ports	1 x Component 3 x Composite (Video) 5 x Analogue Audio (Tuner included) 1 x Composite Monitor 1 x Microphone Port 1 x Dock Control Port 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	9200 g
