Denon AVR-1611 Service Manual

23
4. Run the DFW

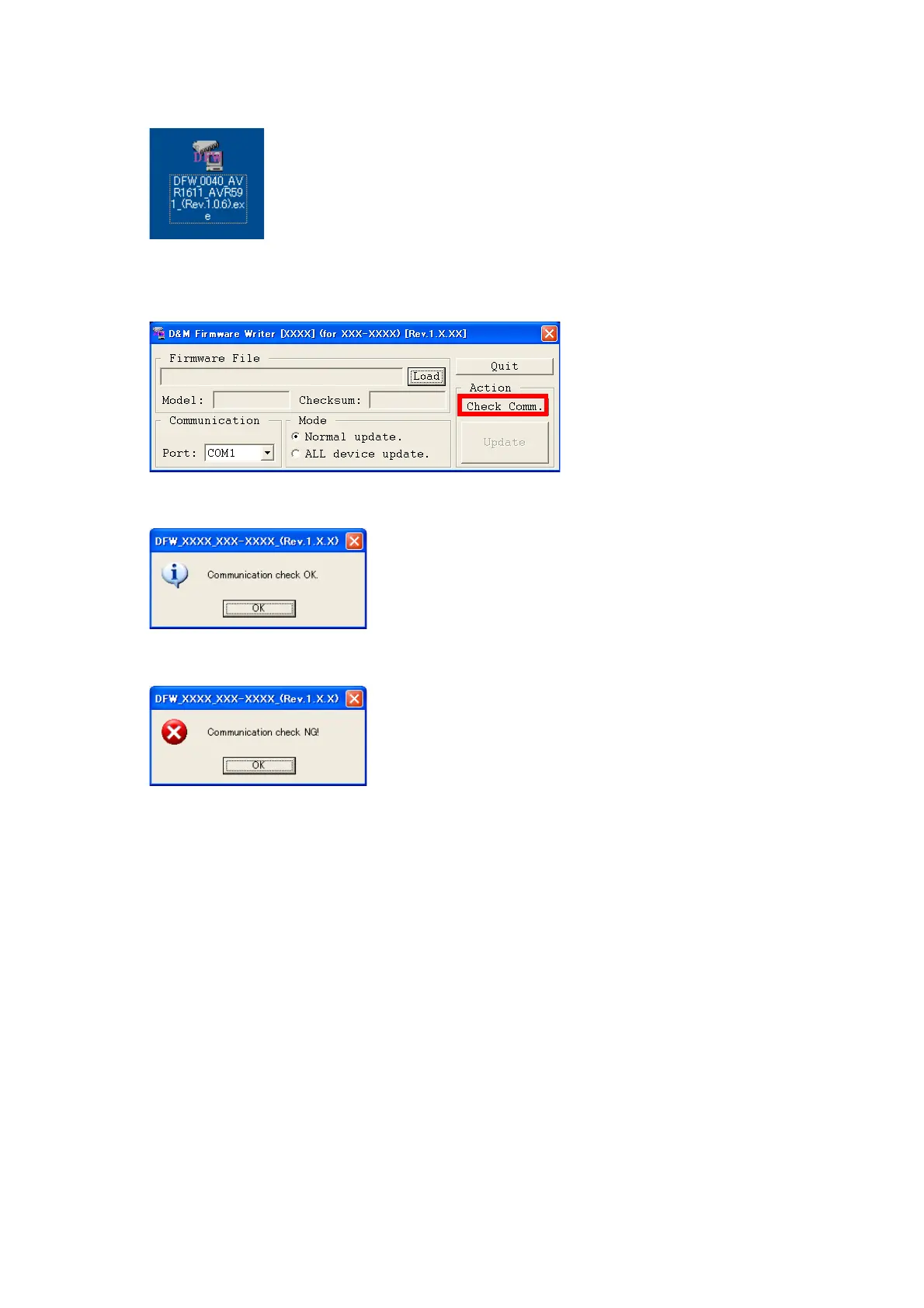

Run the “DFW_0040_AVR1611_AVR591_(Rev.1.0.6).exe”)” on desktop of PC.
5. Communication check
(1) Click the “Check Comm.” button.
(2) When connection is good, then you can see the “Communication check OK.” message.
(3) If connection is not good, then you can see the “Communication check NG” message.
Please confi rm the following
(a) Check the connection of the AV receiver/amplifi er and PC. (refer to “2.Connection to AV …” )
(b) Check the operation mode of the AV receiver/amplifi er. (refer to “3.Turn on the AV …”)
(c) Check the selection of the RS-232C port number of PC.

Denon AVR-1611 Specifications

General

Impedance	6 Ω
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.7 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	110 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
I/O ports	1 x Component 3 x Composite (Video) 5 x Analogue Audio (Tuner included) 1 x Composite Monitor 1 x Microphone Port 1 x Dock Control Port 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	9200 g
