5. PCB SPK/PCB SMPS

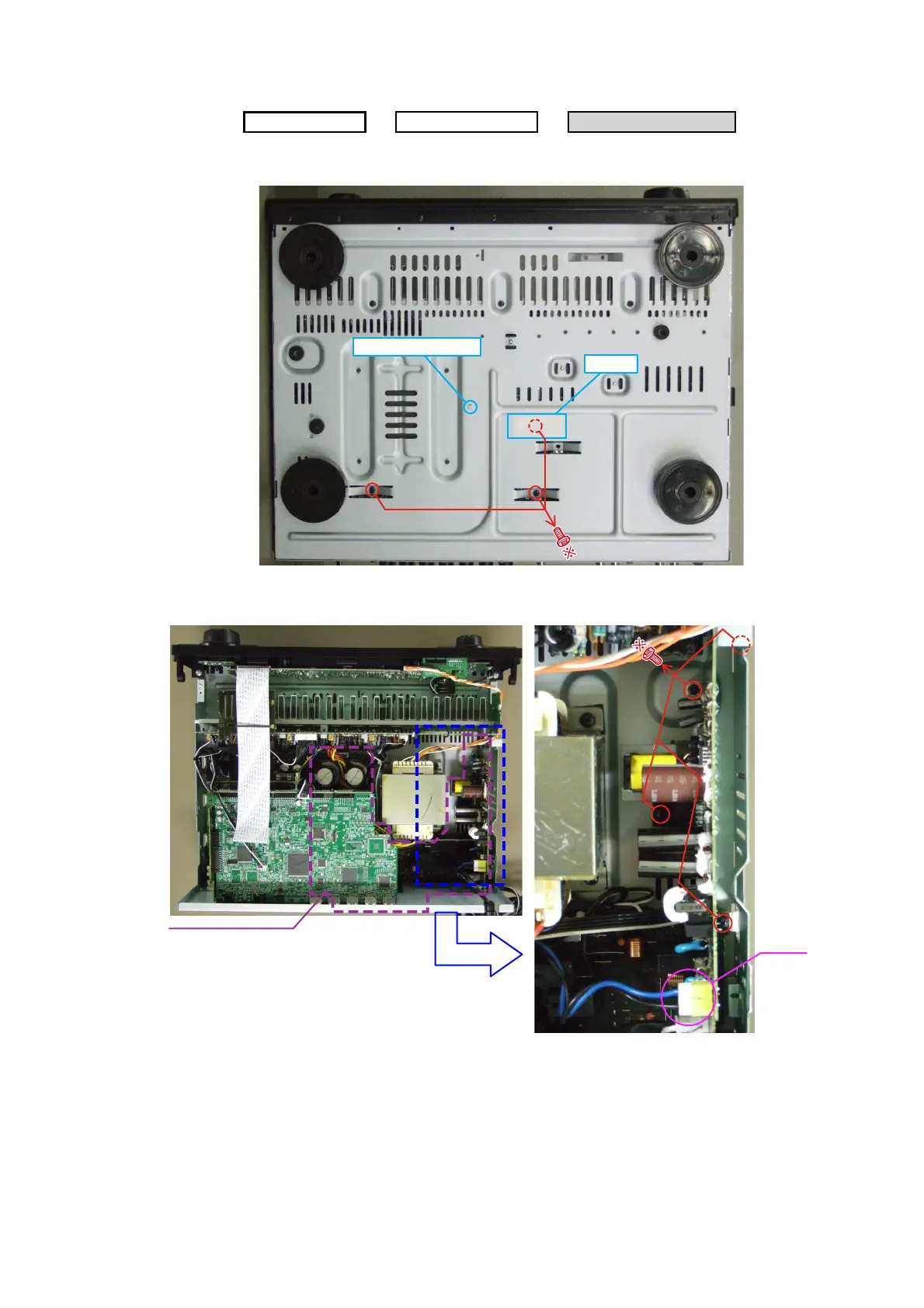

(1) Remove the Sheet, then remove the screws and SUPPORTER P.C.
(2) Disconnect the connector wire, then remove the screws.
CABINET TOP
HDMI UNIT ASSY
→
PCB SPK/PCB SMPS
→
Proceeding :
View from bottom
SUPPORTER P.C.
Sheet
PCB SPK/PCB SMPS
CX102
