Denon AVR-1611 Service Manual

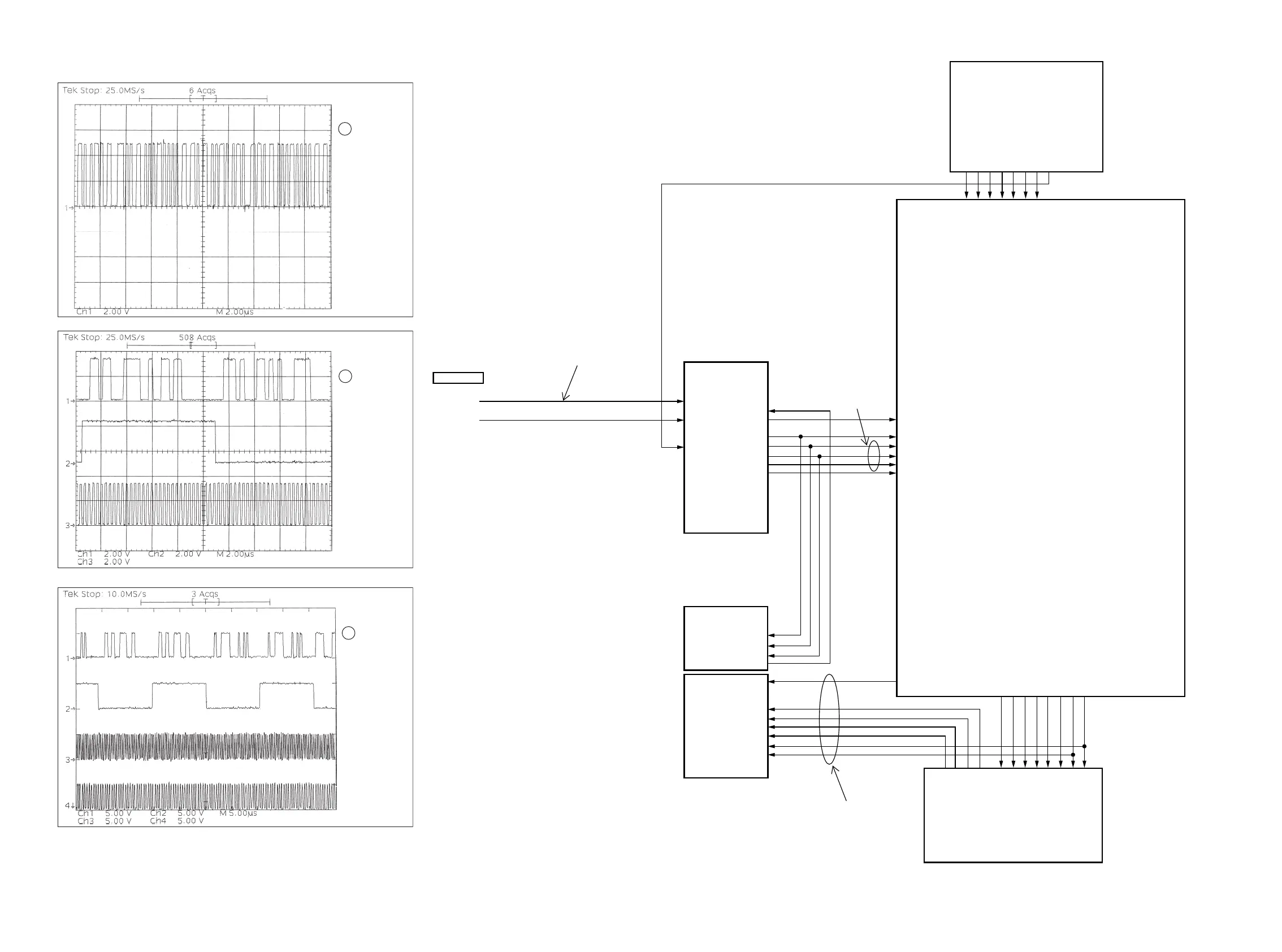

CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK
U1707
AUDIO PLD
EPM3032ATC
U1901
DSP
ADSP-21367
U1001
HDMI Rx
ADV7840
DIR/DIT
U1706
LC89058W-E
ADC
U2101
AAK5358B
DAC
U2102
AK4358VQ
MCLK(11)
SCLK(12)
LRCLK(10)
ADATA(9)
SDTI1(14)
SDTI2(15)
SDTI3(16)
SDTI4(13)
BICK(9)
LRCK(17)
DSDDATA4(11)
DSDDATA3(14)
DSDDATA2(15)
DSDDATA1(16)
DBCLK(17)
DLRCK(18)
MCLK(10)
SDIN(24)
SLRCK(23)
RMCK(16)
RBCK(17)
RLRCK(20)
RDATA(21)
SBCK(22)
TMCK(44)
TBCK(45)
TLRCK(46)
TDATA(47)
(42)SLRCK
(37)256fsDIR
(3)64fsDIR
(2)fsDIR
(44)DATADIR1
(43)SBCK
(21)DSPIN64fs (22)DSPINfs (28)DSPINSB (31)DSPINS (33)DSPINC (34)DSPINF (23)DSPOUTfs (25)DSPOUT64fs
(F3)HRMCK (B1)HR64fs/DCLK (A2)HRfs/DR0 (K3)HRSD0/DL0 (D5)HRSD1/DR1 (J3)HRSD2/DL1 (J4)HRSD3/DR2 (B2)HRSPDIF/DL2
HRMCK(5)
HR64fs/DCLK(6)
HRfs/DR0(8)
HRSD0/DL0(14)
HRSD1/DR1(13)
HRSD2/DL1(12)
HRSD3/DR2(10)
(2)RX0
(4)RX2
(9)RX5
COAXIAL-1
OPTICAL-1
(130) (125) (143) (137) (146) (144) (132) (131)
DAC_FL/FR(133)
DAC_C/SW(134)
DAC_SL/SR(135)
DAC_SBL/SBR(136)
INPUT
q
w
e
CH1: D-DATA
1
CH1: DATA
CH2: fs
CH3: 64fs
CH4: 256fs
3
CH1: DATA
CH2: fs
CH3: 64fs
2
Wave form
45
