Denon AVR-1611 - Connection Table of Board to Board

21

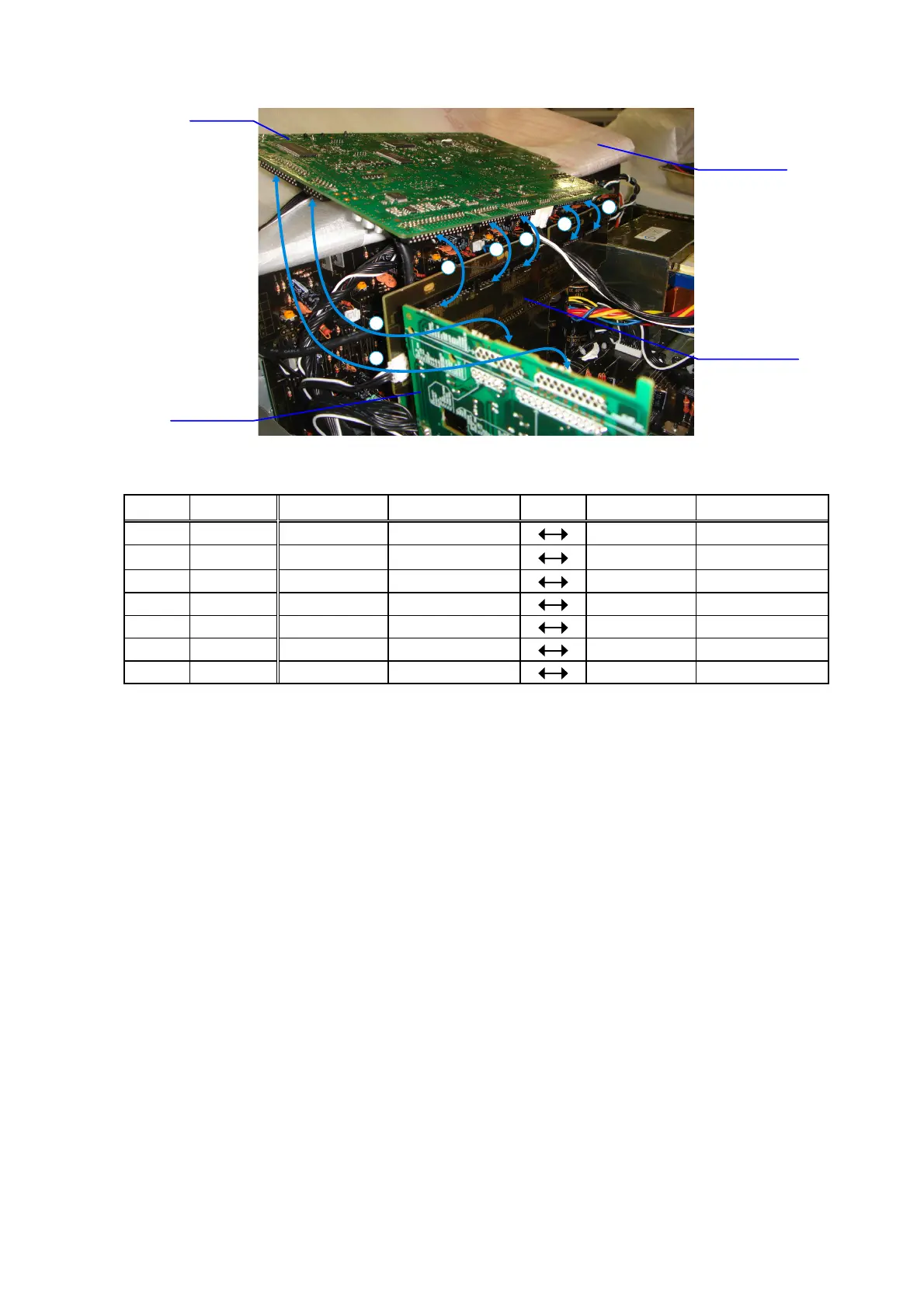

(4) Connect the four extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
11 pin CP3 SIDE CNT
N2709 HDMI
w
25 pin CP4 SIDE CNT
N2708 HDMI
e
19 pin CP105 FRONT CNT
N2701 HDMI
r
17 pin CP106 FRONT CNT
N2702 HDMI
t
19 pin CP108 FRONT CNT N2704 HDMI
y
17 pin CP109 FRONT CNT
N2705 HDMI
u
33 pin CP110 FRONT CNT
N2707 HDMI
1
2
3
4
5
6
7
PCB HDMI
PCB SIDE CNT
Insulation sheet
PCB FRONT CNT
