Denon AVR-1611 - Packing View; Parts List of Packing & Accessories

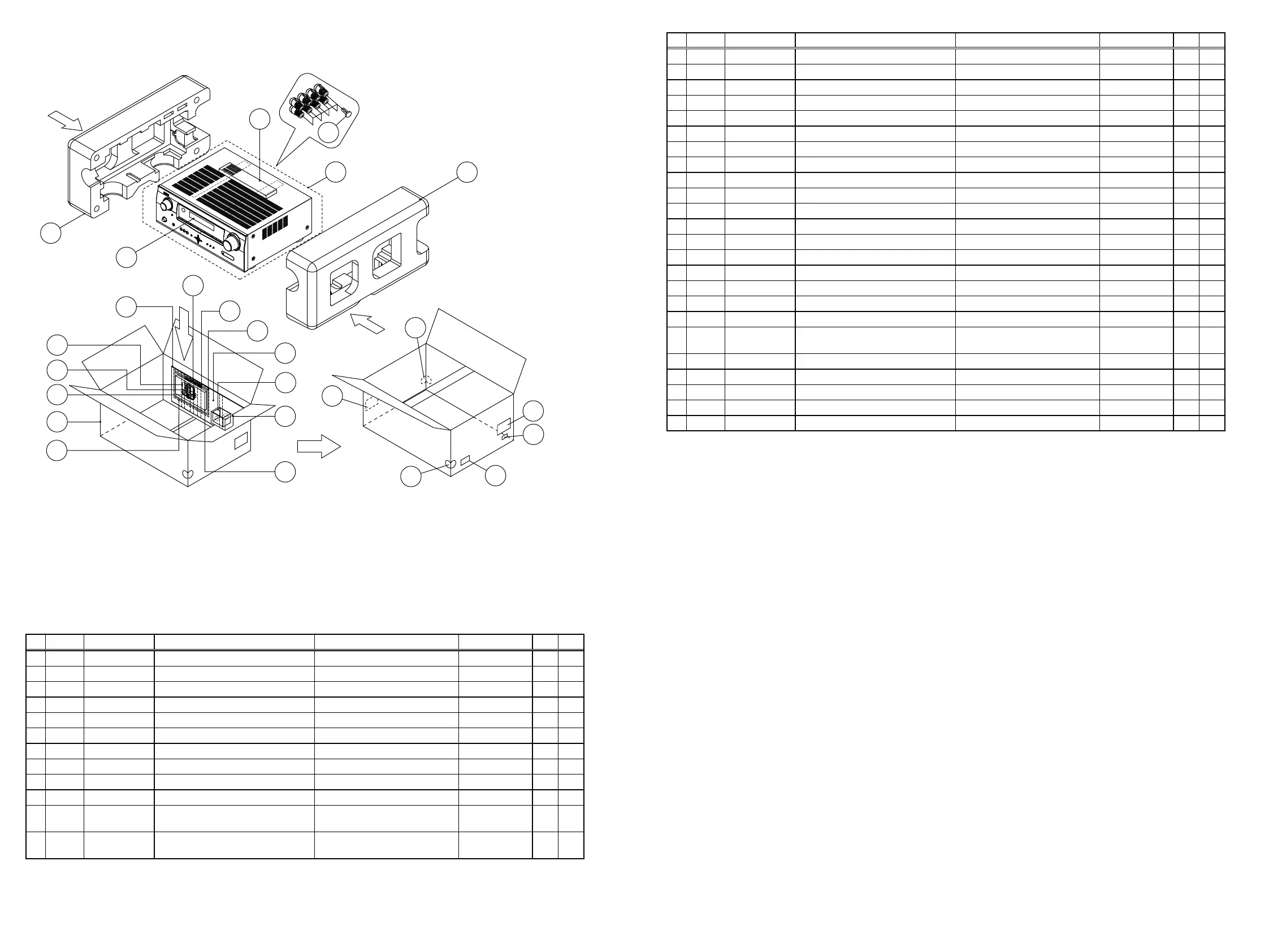

PACKING VIEW
sd
PARTS LIST OF PACKING & ACCESSORIES
sd
zParts for which "nsp" is indicated on this table cannot be supplied.
zPart indicated with the mark " ★ " is not illustrated in the exploded view.
zThe parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Note: The symbols in the column "Remarks" indicate the following destinations.
1611E3 : U.S.A. & Canada model 1611E2 : Europe model 1611E1C : China model
591E3 : U.S.A. & Canada model 591EA : Australia model 1621E1C : China model
BK : Black model SP : Premium Silver model
Ref. No. Part No. Part Name Remarks Q'ty New
1 - set --
2 541110411008D INSTRUCTION MANUAL 591BKE3 5707000003710S 1 *
2 541110413004D INSTRUCTION MANUAL 591BKEA 5707000003720S 1 *
2 541110410005D INSTRUCTION MANUAL 1611BKE3 5707000003730S 1 *
2 541110412001D INSTRUCTION MANUAL 1611SPE2,1611BKE2 5707000003740S 1 *
2 541110414007D INSTRUCTION MANUAL 1611SPE1C 5707000003760S 1 *
2 541110415000D INSTRUCTION MANUAL 1621SPE1C 5707000003770S 1 *
3 90M-ZA000260R ANTENNA,LOOP AM E601016000010S 1
4 00D9600187308 ANTENNA,WIRE FM E605010070001S 1
5 307010069004D REMOCON RC-1146 1611BKE3 8300114600010S 1 *
5 307010070004D REMOCON RC-1147
1611SPE2,1611BKE2,1611SPE1C,
1621SPE1C,591BKE3,591BKEA
8300114700010S 1 *
6 nsp POLY BAG
1611BKE3,1611SPE1C,1621SPE1C,
591BKE3
6330000240000S 1
DENON
DENON
1
2
12
3
6
6
E2,EA model
E2,E1C,EA
model
E2,EA model
SP model
SP model
E1C model
E1C model
15
16z
8
7
18
18
19
7
5
13
17
4
11
9
14
21
12
20
10
d
d
Ref. No. Part No. Part Name Remarks Q'ty New
6 nsp POLY BAG 1611SPE2,1611BKE2,591BKEA 6330000240000S 2
7 963533010090D CUSHION,SNOW 6230212814000S 1 *
8 963531010580D BOX GIFT 591BKE3 6007211690040S 1 *
8 963531011450D BOX GIFT 591BKEA 6007211730110S 1 *
8 963531011460D BOX GIFT 1611BKE3 6007211730120S 1 *
8 963531011470D BOX GIFT 1611SPE2,1611BKE2 6007211730130S 1 *
8 963531011480D BOX GIFT 1611SPE1C 6007211730140S 1 *
8 963531011490D BOX GIFT 1621SPE1C 6007211730150S 1 *
9 nsp WARRANTY CARD 1611BKE3,591BKE3 5727000003002S 1
9 nsp WARRANTY CARD 1611SPE1C,1621SPE1C 5777001670010S 1
10 nsp CARD S.S LIST 577700162001GS 1
11 nsp BATTERY DRY (AA) G670001R50190S 2
12 nsp LABEL DENON CONTROL 5507000007000S 1 *
13 nsp PE SHEET SET 6327040059000S 1
14 324010001003D MIC CONDENSER M040000310040S 1
15 nsp PAD BOX BACK 6240210730000S 1
z
16 90M-ZC000600R CORD ASSY 1611SPE2,1611BKE2 L068250160020S 1
z
16 963611001490S CORD ASSY 591BKEA L068250100070S 1
17 nsp BUSHING TERMINAL
1611SPE2,1611BKE2,1611SPE1C,
1621SPE1C,591BKEA
2410040353010S 10
18 nsp COLOR LABEL 1611SPE2,1611SPE1C,1621SPE1C 5507020170680S 2
19 nsp LABEL PRODUCTION-BOX 1611SPE2,1611SPE1C,1621SPE1C 5507100500970S 1
20 nsp LABEL CRoHS 1611SPE1C,1621SPE1C 5507000000850S 1
21 nsp POLY BAG ACCESSORY 6330210222000S 1
★
23 nsp LABEL HOT-SURFACE 1611BKE3 1008HK0923010 1
