Denon AVR-1611 Service Manual

16

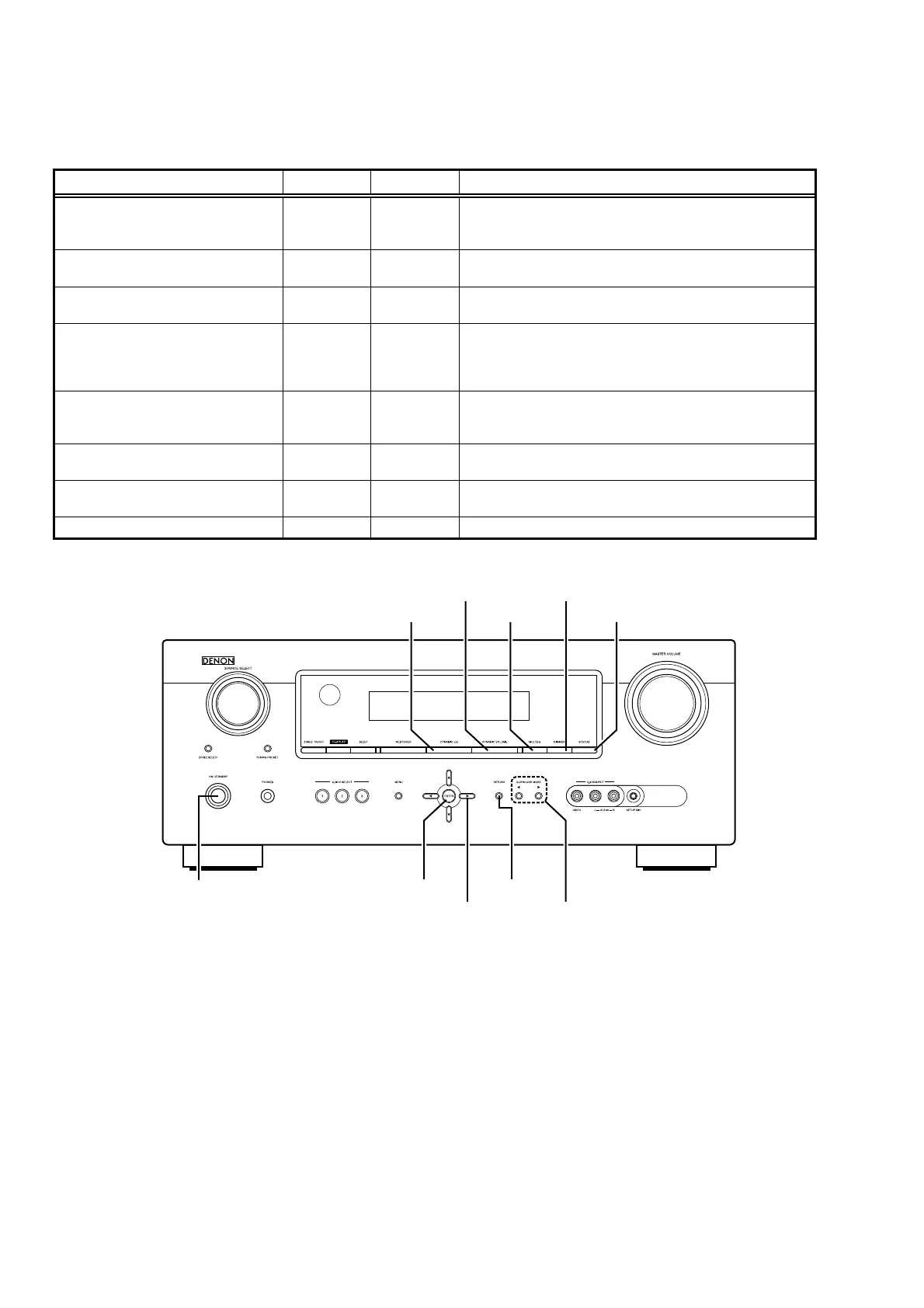

SPECIAL MODE
Special mode setting button
b
Press the ON/STANDBY button to turn on while pressing both buttons A and B at the same time.
Mode Button A Button B Contents
com/DSP Version display mode STATUS DIMMER
Firmware versions such as Main, Sub, DSP are displayed in
the FL manager. Errors are displayed when they occur. (Refer
to 17 page.)
Errors checking mode
(Displaying the protection history)
STATUS MULT EQ
Displaying the protection history
(Refer to 18 page.)
Initialization mode
SURROUND

MODE
0
SURROUND

MODE
1
Backup data initialization is carried out.
(Refer to 5 page.)
Mode for switching tuner frequency step DINAMIC EQ
DINAMIC
VOLUME
---E2 model only---
Select with the SOURCE
0 d 1 f
button.
Change tuner frequency step to AM9k/FM50kHz STEP or
AM:10k/FM:200kHz.
Mode for preventing remote control
acceptance
DINAMIC
VOLUME
RETURN
Operations using remote control are rejected.
(Mode cancellation: Turn off power and execute the same
button operations as when performing setup.)
Panel lock mode DINAMIC EQ ENTER
Operations using main unit panel buttons or master volume are
rejected.
Panel lock mode
(Remove Master volume)
DINAMIC EQ CURSOR
1
Operations using main unit panel buttons are rejected.
Cancellation of panel lock mode DINAMIC EQ RETURN Panel lock mode is cancelled.
ON/STANDBY
CURSOR 1 SURROUND MODE 0 1
ENTER
DINAMIC EQ MULT EQ
DINAMIC VOLUME DIMMER
STATUS
RETURN

Denon AVR-1611 Specifications

General

Impedance	6 Ω
Frequency range	10 - 100000 Hz
Audio output channels	5.1 channels
Audio A/D Converter (ADC)	24-bit/96kHz
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.7 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Audio system	Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Pro Logic II, Dolby Pro Logic IIx, Dolby Pro Logic IIz, DTS-HD, DTS 96/24
Output power	110 W
Dimensions (WxDxH)	434 x 381 x 171 mm
Power requirements	AC 230, 50 Hz
HDMI ports quantity	5
I/O ports	1 x Component 3 x Composite (Video) 5 x Analogue Audio (Tuner included) 1 x Composite Monitor 1 x Microphone Port 1 x Dock Control Port 1 x FM Tuner Antenna 1 x AM Tuner Antenna
Connectivity technology	Wired
Digital audio optical in	1
Product color	Black
Power consumption (standby)	0.1 W
Power consumption (typical)	360 W

Weight and Dimensions

Weight	9200 g
