Denon AVR-2313CI Service Manual

12

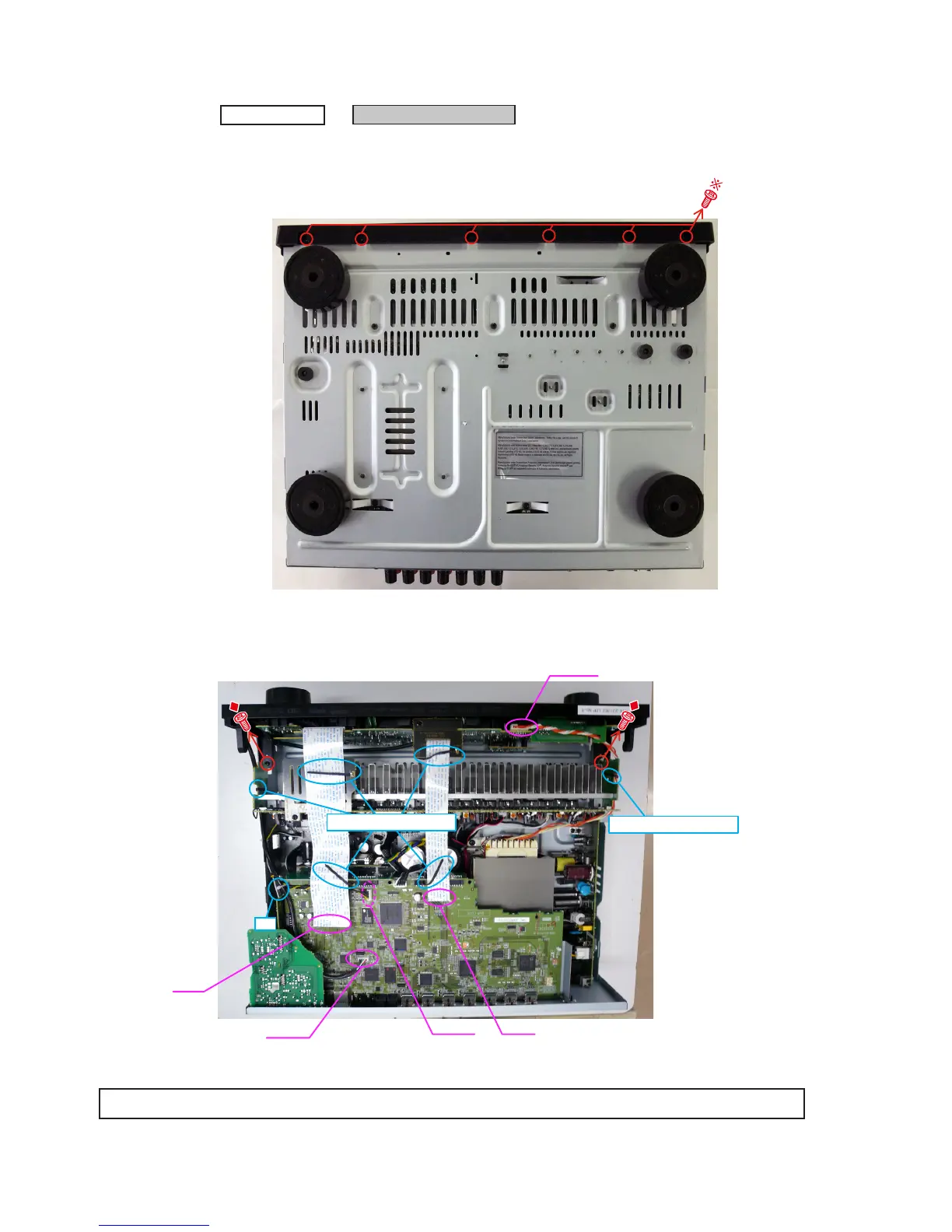

1. FRONT PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC. Remove the screws.
TOP COVER
FRONT PANEL ASSY
→
Proceeding :
View from the bottom
N2801
FFC
CP4400
FFC
N3405
STYLE PIN : Loosen
STYLE PIN : Loosen
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.
