Denon AVR-2313CI Service Manual

55
JIG FOR SERVICING
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order it from DENON Ofcial Service. Distributor in your region if necessary.
NOTE
: The incorrect connection with in the JIG (EXTENSION UNIT KIT) may cause damage.
8U-110084S : EXTENSION UNIT KIT : 1 Set

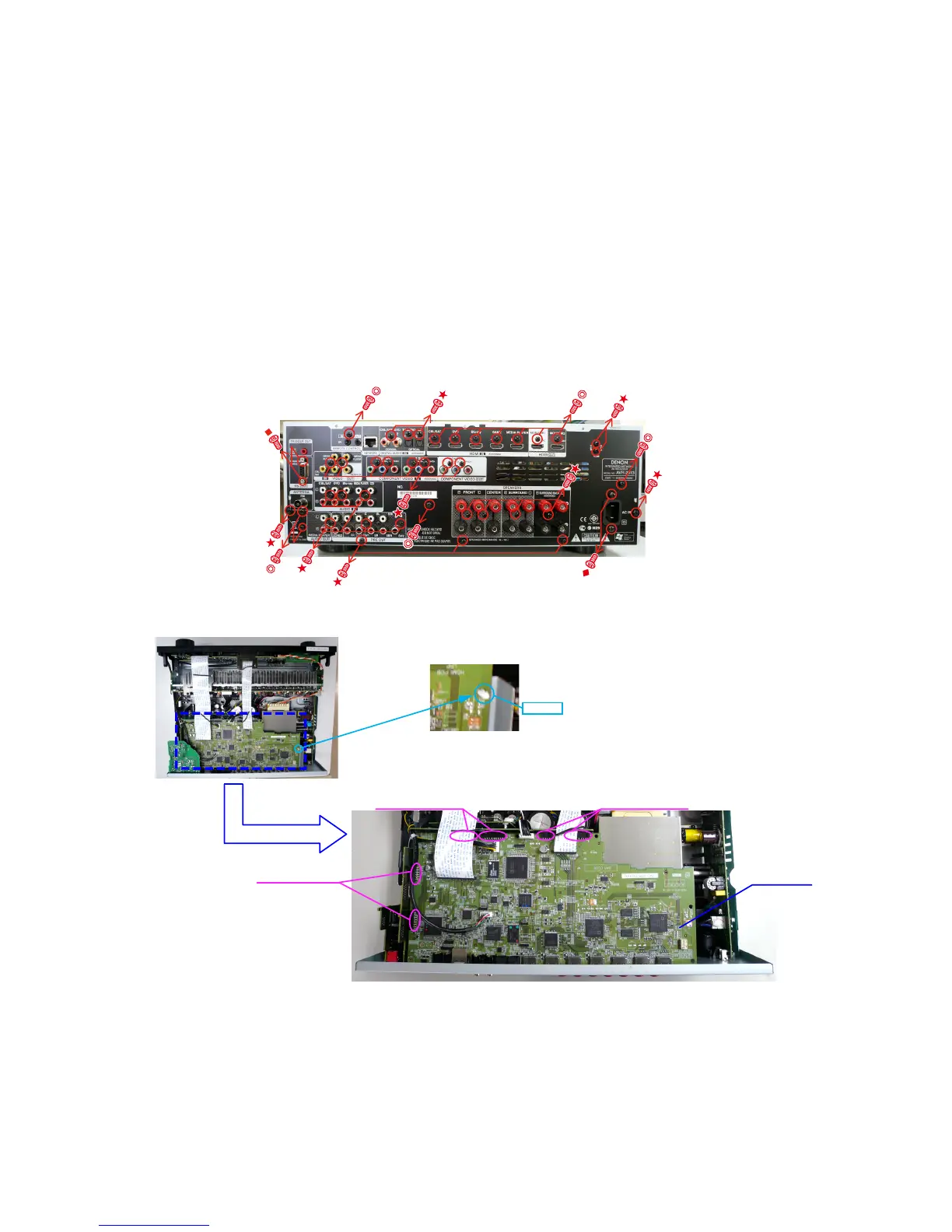

• Connection of PCB HDMI JIG
-Preparation-
8U-110084S : EXTENSION UNIT KIT : 1 Set
Insulation sheet (Do not supply it) : 1 sheet
Ground lead (Do not supply it) : 2 pc
-Procedures-
(1) Remove the screws.
(2) Disconnect the connector board.
Board to board
Board to board
Board to board
PCB HDMI
remove

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
