20

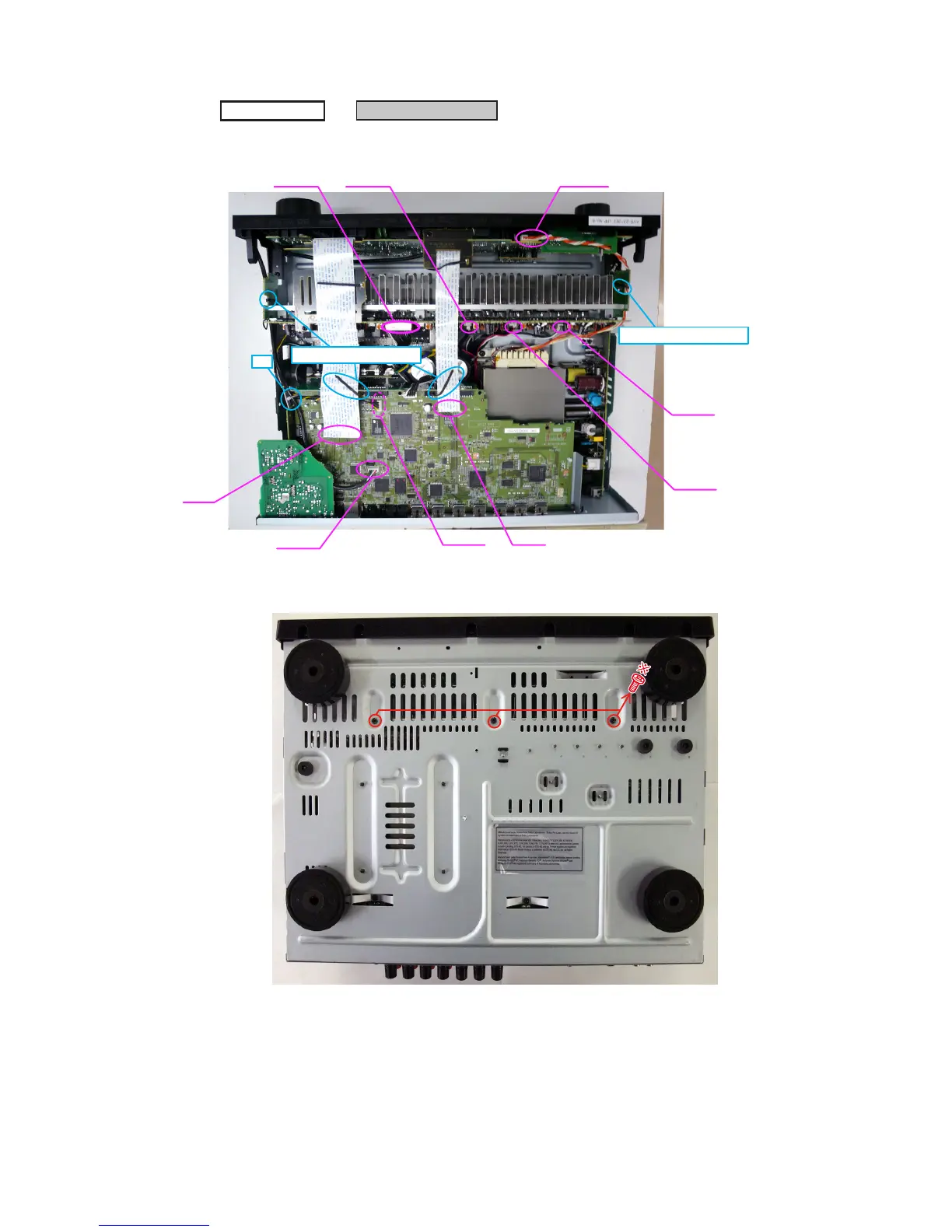

10. RADIATOR ASSY

(1) Cut the wire clamp band. Remove the screws, then disconnect the connector wires.

(2) Remove the screws.

TOP

COVER

RADIATOR

ASSY

→

Proceeding :

N2801

FFC

CP4400CP402CP401

FFC

N3405

CP405

CP403

STYLE PIN : Loosen

STYLE PIN : Loosen

cut

View from the bottom
