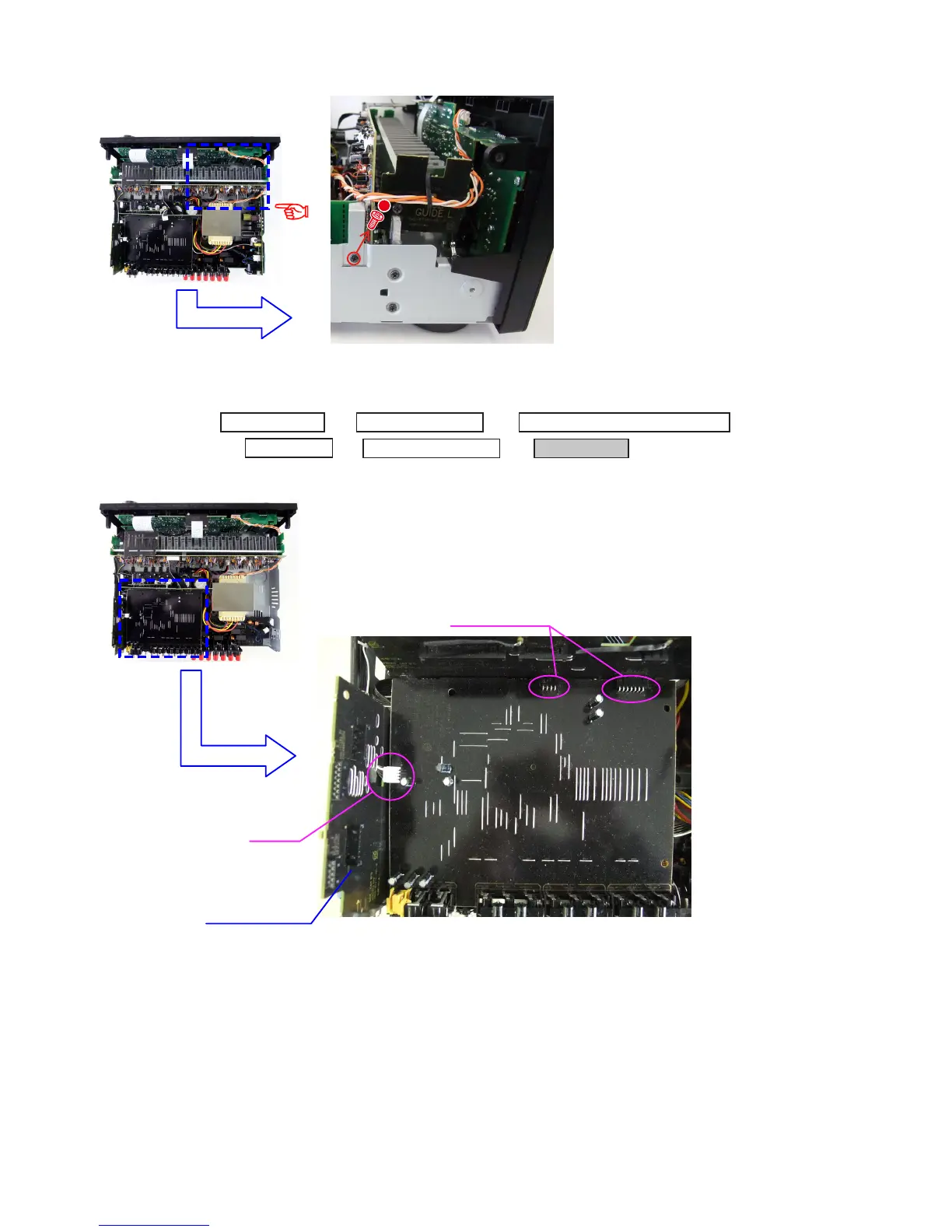

(2) Remove the screws.
6. PCB VIDEO
(1) Disconnect the connector wire and connector board.
Shooting of photograph: D
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
→ →
PCB SMPS ASSY PCB VIDEO
TOP COVER
BACK CHASSIS
→
Proceeding :
CP4800
Board to Board
PCB SIDE CNT
