Denon AVR-2313CI Service Manual

58
WHEN THE MICROPROCESSOR IS REPLACED WITH A NEW ONE
When the U-PRO (Microprocessor) or the Flash ROM is replaced, conrm the following.
PCB Name Ref. No. Description
After
replaced
Remark
HDMI U3002 R5F56108VNFP
B
SOFTWARE: Main
HDMI U2003 EN29LV160BB-70TIP
B
SOFTWARE: DSP ROM
HDMI U2206 EPM240T100C5N
B
SOFTWARE: AUDIO PLD
HDMI U1602 MX25L6406EM2I-12G
C
SOFTWARE: GUI ROM
After replacing
A
: Mask ROM (With software). No need for write-in of software to the microprocessor.
B
: Flash ROM (With software). Usually, no need for write-in of software. But, when the software was updated, you should
write the new software on the microprocessor or ash ROM. Please check the software version.
C
: Empty Flash ROM (Without software). You should write the software on the microprocessor or ash ROM.
Refer to "Update procedure" or "writing procedure", when you write the software.
PROCEDURE FOR UPGRADING THE VERSION OF THE FIRMWARE
NOTE
: When the following are replaced, always rewrite with updated rmware using DFW.
• PCB HDMI ASSY
• U1602 (MX25L6406EM2I-12G)
• U2206 (EPM240T100C5N)
• U3002 (R5F56108VNFP)
• U2003 (EN29LV160BB-70TIP)
1. How to update by DFW
1.1. Preparations before starting the operation
(1) Personal Computer (Installed "DFW_0059_AVR2313_(Rev.X.X.X).exe".
(2) RS-232C cable (9P (Male), Straight).

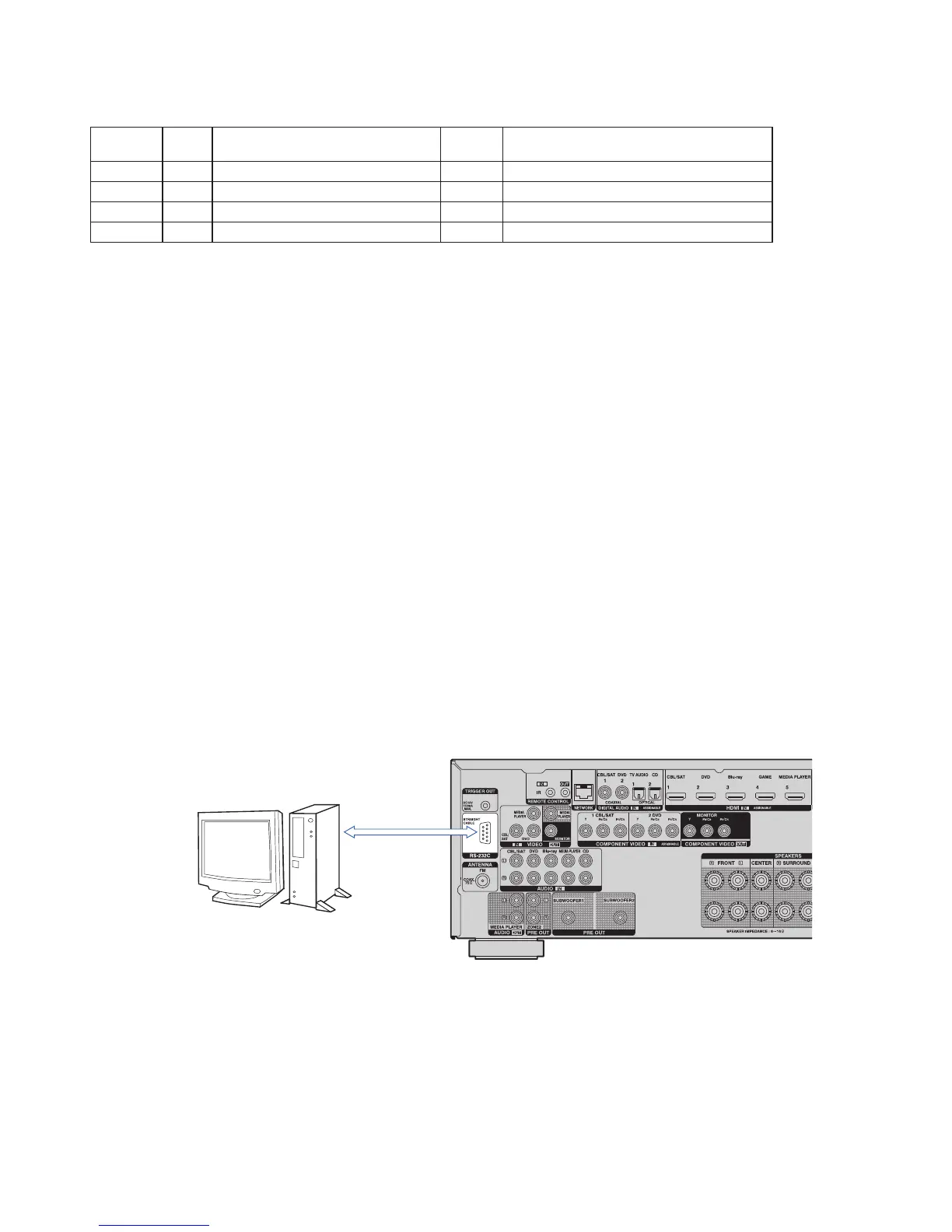

1.2. Connection of AV receiver
(1) Conrm the power on/off switch of the AV receiver is turning off.
(2) Connect the RS-232C cable from PC with the "RS232C Terminal of AV receiver".
1.3. Turn on the AV receiver
Operate the following. Turn on the AV receiver.
(1) Connect the power cable to the AC outlet while simultaneously pushing the "TUNER PRESET CH +", "TUNER
PRESET CH -" and "ZONE2/REC SOURCE" button of the front panel.
(2) Conrm the power indicator is red.
s
PC
RS-232C Cable

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
