Denon AVR-2313CI Service Manual

57

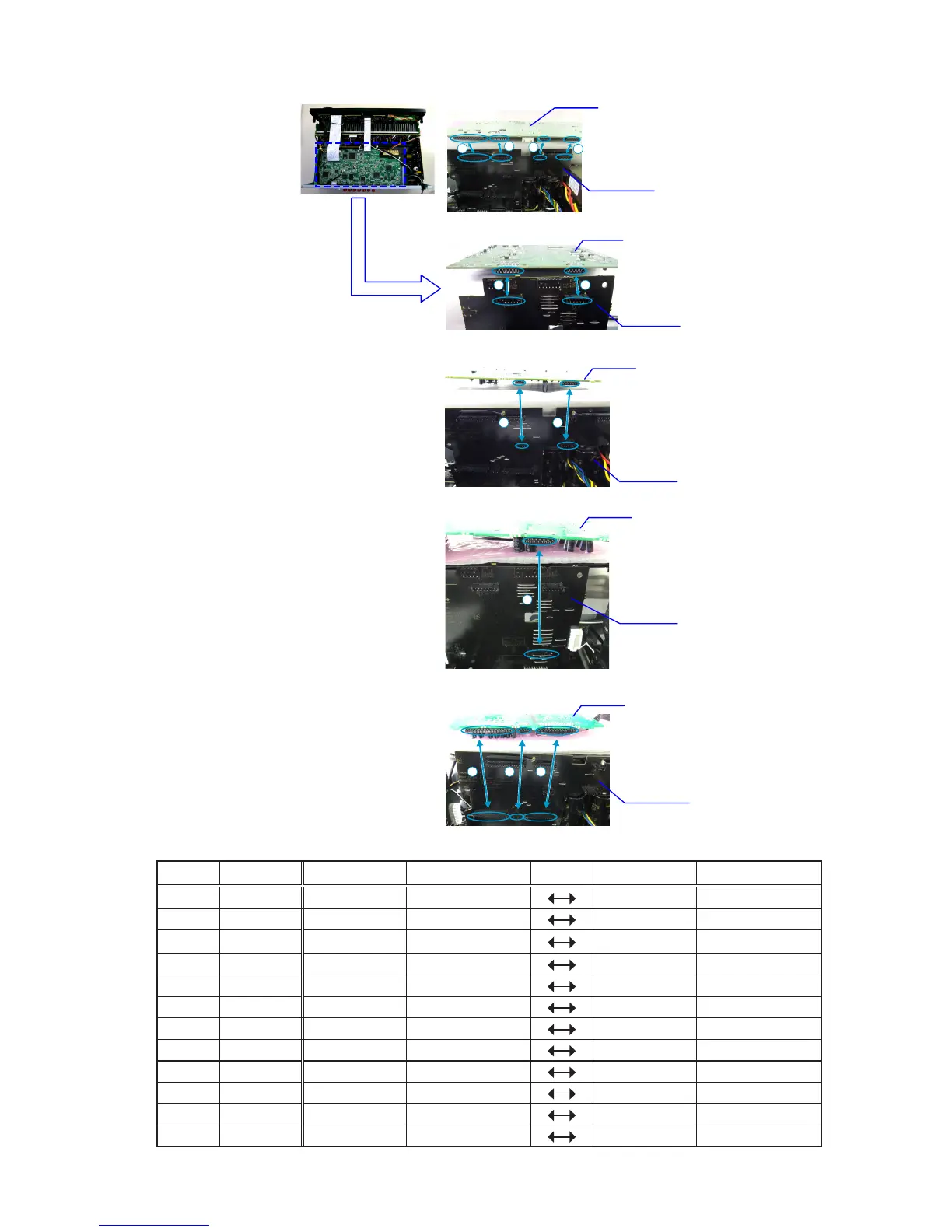

(4) Connect the 12 extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
33pin CP3403 FRONT CNT N3403 HDMI
w
17pin CP3404 FRONT CNT N3404 HDMI
e
7pin CP3402 FRONT CNT N3402 HDMI
r
13pin CP3401 FRONT CNT N3401 HDMI
t
13pin CP3407 SIDE CNT N3407 HDMI
y
11pin CP3406 SIDE CNT N3406 HDMI
u
7pin CP4614 FRONT CNT CN4614 VIDEO
i
13pin CP4613 FRONT CNT CN4613 VIDEO
o
15pin CP4605 SIDE CNT CN4605 AUDIO
Q0
33pin CP4617 FRONT CNT CN4617 AUDIO
Q1
7pin CP4615 FRONT CNT CN4615 AUDIO
Q2
27pin CP4612 FRONT CNT CN4612 AUDIO
PCB HDMI
PCB FRONT CNT
PCB SIDE CNT
PCB SIDE CNT
PCB SIDE CNT
PCB HDMI
PCB VIDEO
PCB AUDIO
PCB AUDIO
PCB FRONT CNT
1
3
4
5 6
7 8
10
9
11 12
2

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
