Denon AVR-2313CI Service Manual

8
TECHNICAL SPECIFICATIONS
n
Audio Section
• Power amplier
Rated output (for 2313CI model) :
Front :
105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
105 W + 105 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
135 W + 135 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 6 – 16 Ω
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 100 dB (IHF–A weighted, DIRECT mode)
n
Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input/output level and impedance : Y (brightness) signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz – 60 MHz — 0, –3 dB
n
Tuner section
(Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range (for E3 model) :
87.5 MHz – 107.9 MHz
Usable Sensitivity :
1.2 μV (12.8 dBf)
50 dB Quieting Sensitivity :
MONO 2.8 μV (20.2 dBf)
S/N :
MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
Total harmonic Distortion :
MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
n
General
Power supply (for E3 model) : AC 120 V, 60 Hz
Power supply (for E2 model) : AC 230 V, 50/60 Hz
Power supply (for E1C model) : AC 220 V, 50 Hz
Power consumption : 600 W
Power consumption in standby mode : 0.1 W
Power consumption in CEC standby mode : 0.5 W
Power comsumption in network standby mode : 2.7 W
Weight : 10.9 kg
434
344
60
86.035.8 30.2
338.518.5
152 167
15
54.0 214.5
22.0
245

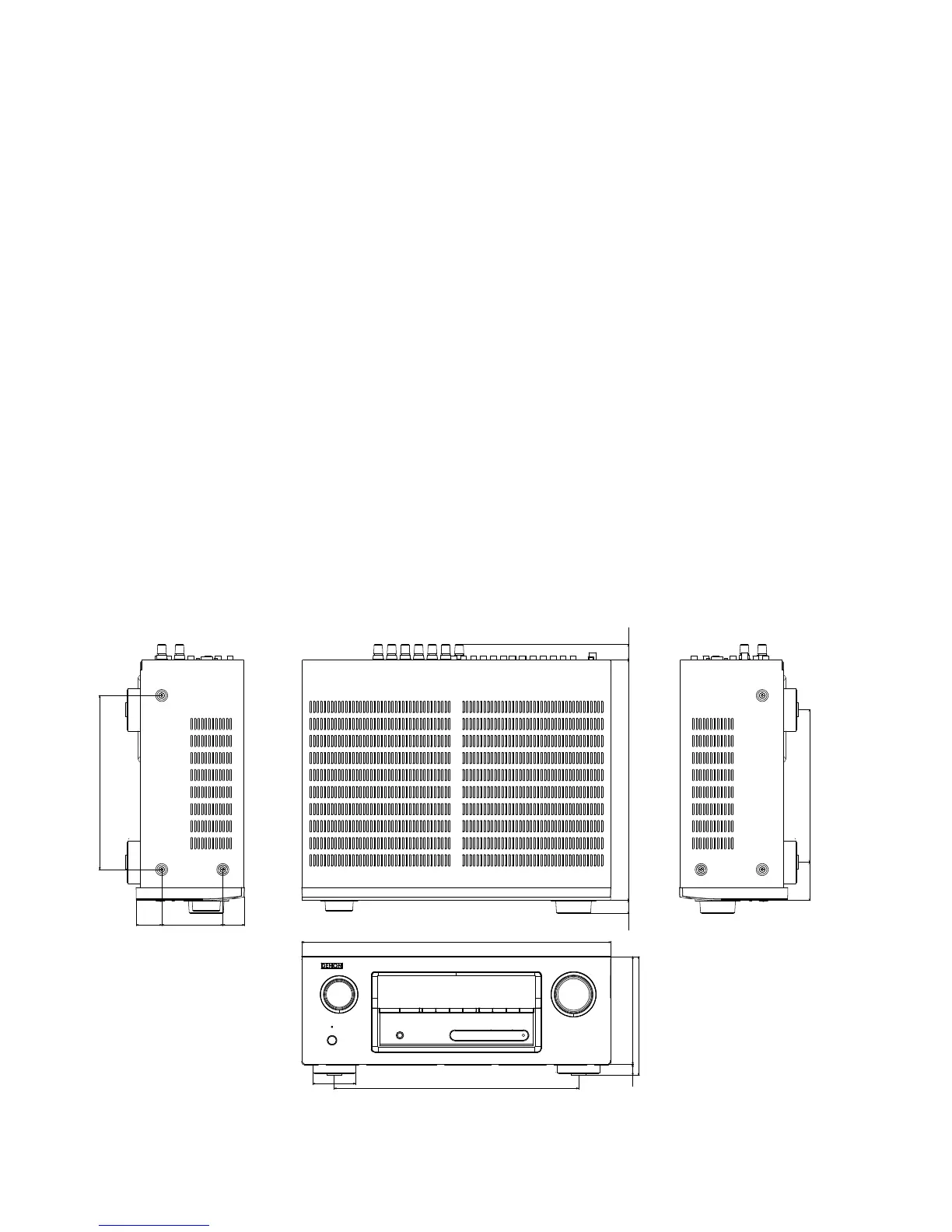

DIMENSION
[AVR-2313CIE3 model]

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
