Denon AVR-2313CI Service Manual

19
9. PCB SPK

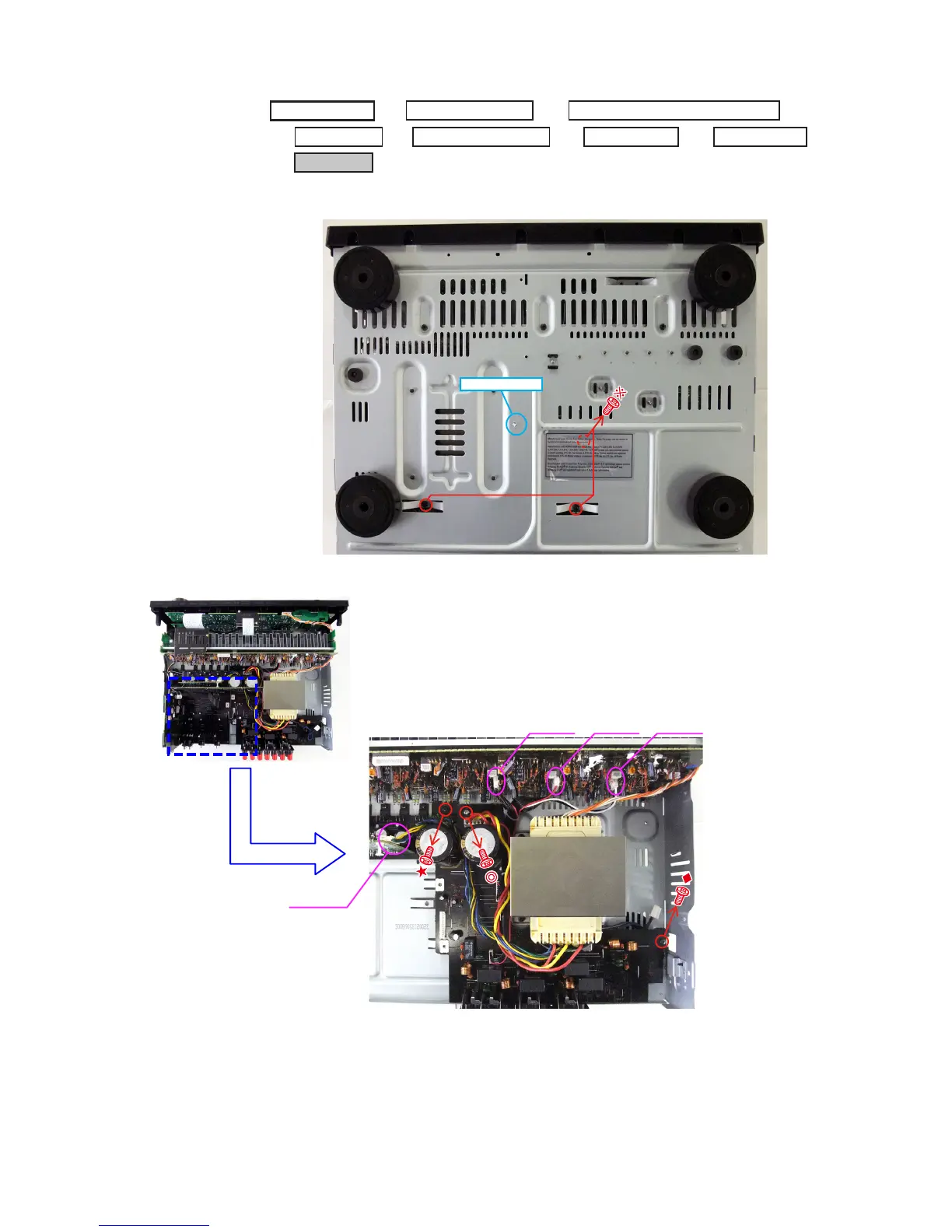

(1) Remove the screws and SUPPORT PC.
(2) Remove the screws, then disconnect the connector wires.
→
PCB SMPS ASSY PCB VIDEO
→
PCB AUDIO
→
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
→
PCB SPK
TOP COVER
BACK CHASSIS
→
Proceeding :
View from the bottom
SUPPORT PC
CP405CP403CP402
CP4602

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
