Denon AVR-2313CI Service Manual

15

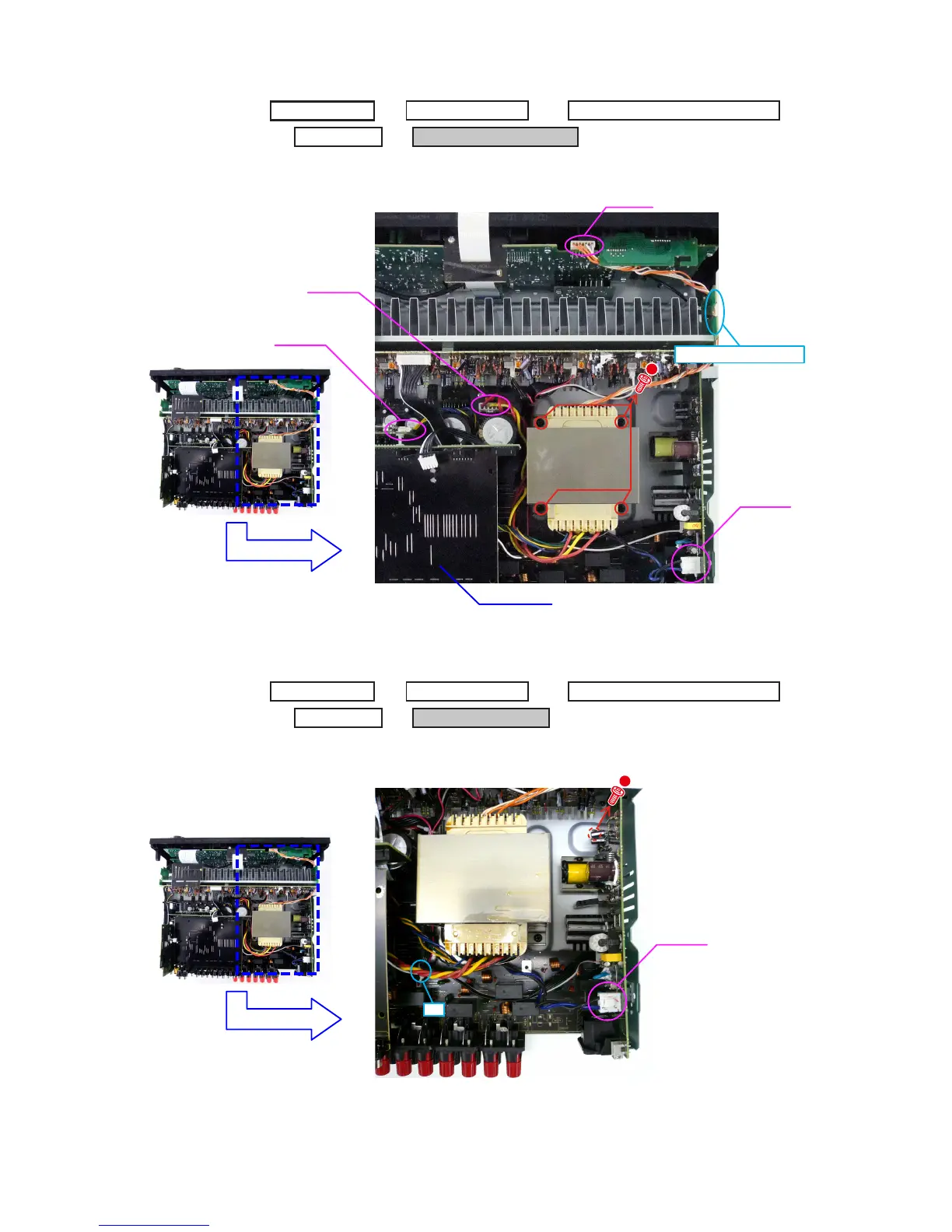

4. POWER TRANS MAIN
(1) Disconnect the connector wires, then remove the screws
.
5. PCB SMPS ASSY
(1) Cut the wire clamp band, then disconnect the connector wire. Remove the screw.
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
POWER TRANS MAIN
→
TOP COVER
BACK CHASSIS
→
Proceeding :
CP4142
CP4602
CP4001
CP4400
STYLE PIN : Loosen
PCB VIDEO
PCB MX PORT/PCB RS232C
→
PCB HDMI
→
→
PCB SMPS ASSY
TOP COVER
BACK CHASSIS
→
Proceeding :
CP4142
cut

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
