Denon AVR-2313CI Service Manual

13

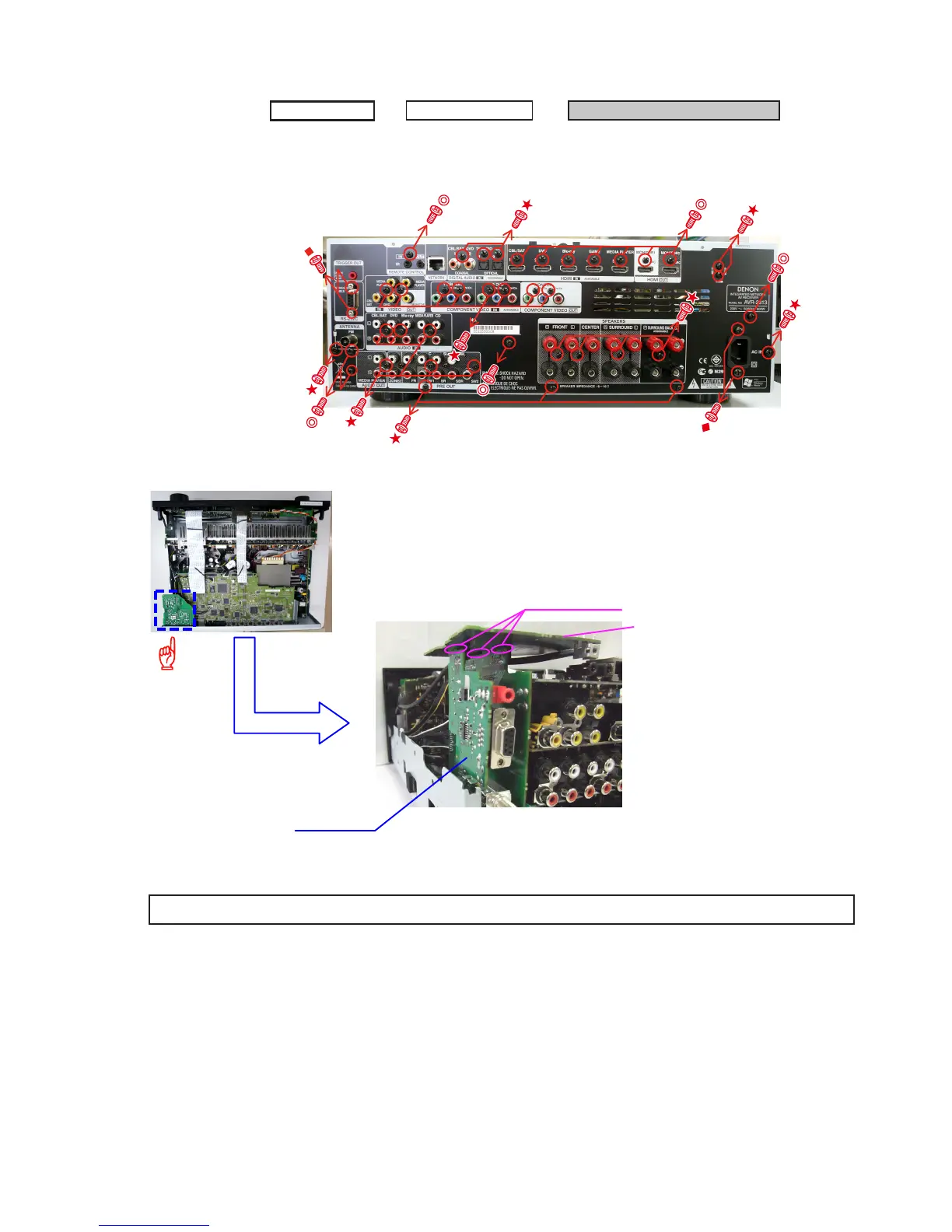

2. PCB MX PORT/PCB RS232C
(1) Remove the screws.
(2) Disconnect the connector board.
TOP COVER
BACK CHASSIS
→
PCB MX PORT/PCB RS232C
→
Proceeding :
Shooting of photograph: A
Shooting of photograph: A
Board to board
PCB RC5_MXPORT
PCB RS232C
Please refer to "EXPLODED VIEW" for the disassembly method of PCB MX PORT/PCB RS232C.

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
