1.4. Run the DFW

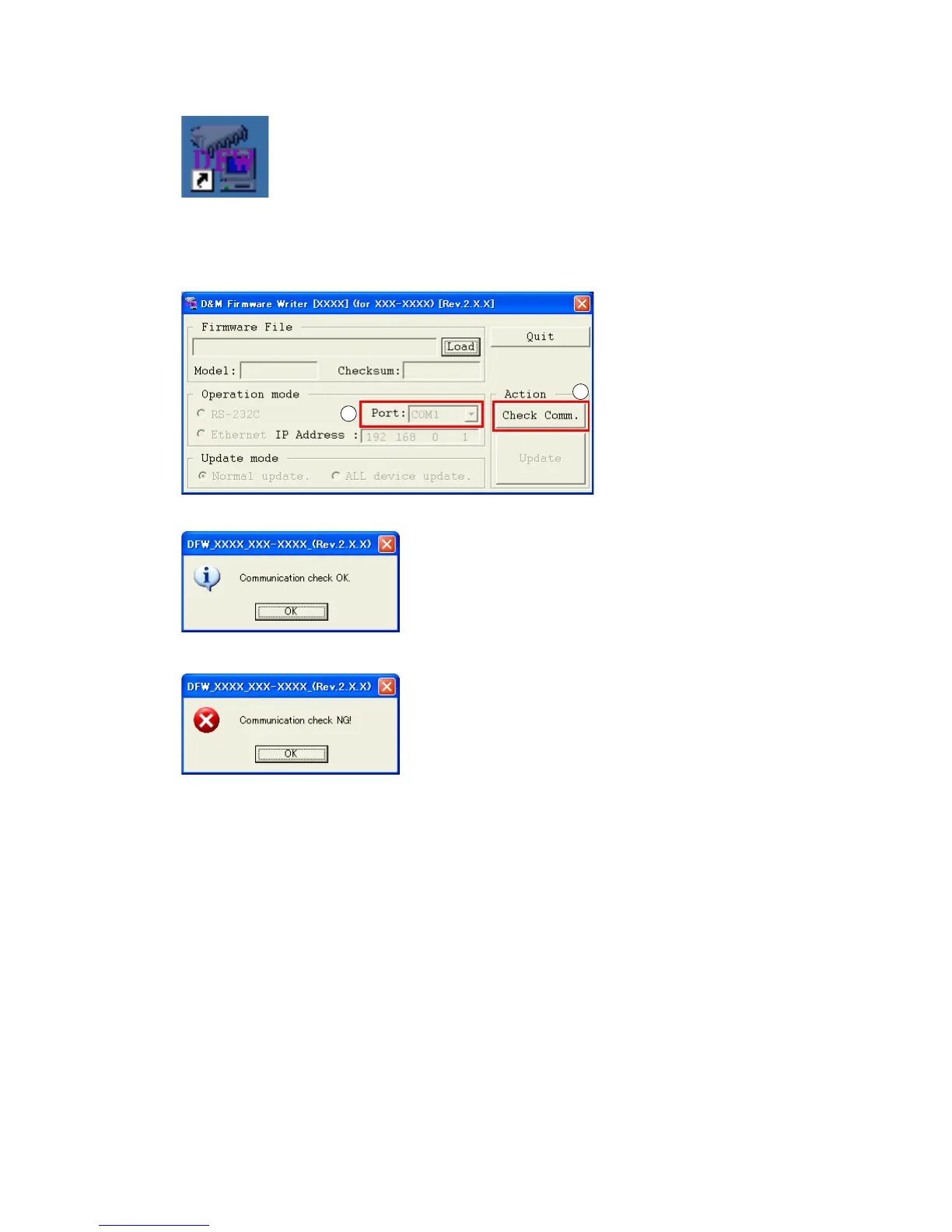

Run the "DFW_0059_AVR2313_(Rev.X.X.X).exe" on desktop of PC.
1.5. Communication check
(1) Select the serial port number of RS-232C in PC.
(2) Click the "Check Comm." button.
(3) When connection is good, then you can see the "Communication check OK." message.
(4) If connection is not good, then you can see the "Communication check NG" message.
Please conrm the following
(a) Check the connection of the AV receiver and PC. (refer to "
1.2. Connection of the AV receiver
" )
(b) Check the operation mode of the AV receiver. (refer to "
1.3.Turn on the AV receiver
")
(c) Check the selection of the RS-232C port number of PC.
1
2

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
