Denon AVR-2313CI Service Manual

92

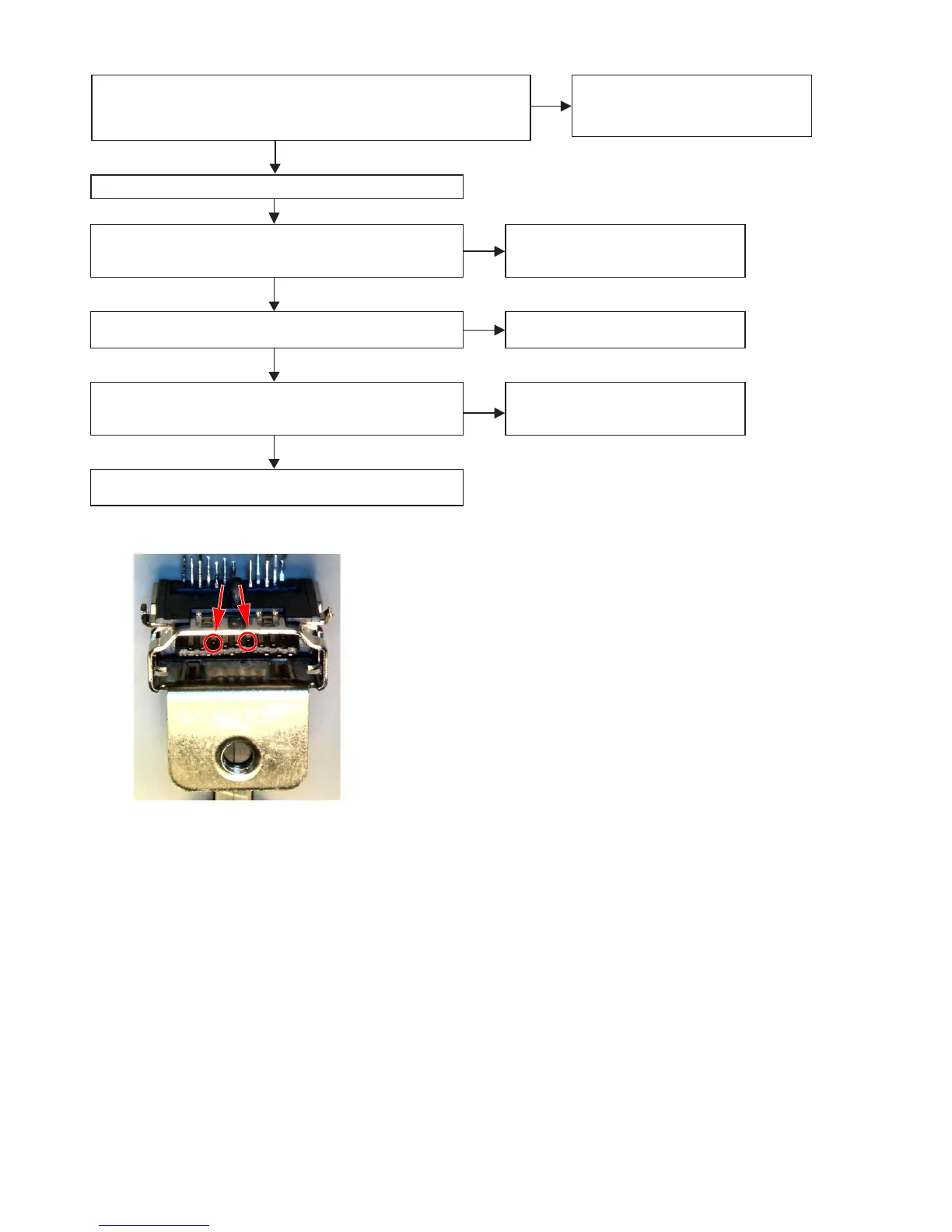

(*1) Abnormal sample of HDMI connector : The internal terminal has bent.
YES
YES
YES
Check operation of U1601 (ADV8003)
(30) Check xtal oscillator.
Is oscillation of X1601(27MHz) transmitted?
(31) Check RESET.
Is RESET waveform conrmed in TP[8003RESET], when power
is turned on? (If not reference waveform, proceed to "NO".)
The pattern and circuit from the HDMI connector (N1602/N1802) to
the IC(U1601) is defective, or HDMI output circuitry is defective.
(29) Check power supply.
Are 1.8V supplied to L3622?
Are 3.3V supplied to Q3610 1pin?
The power supply circuitry is defective.
The X1601 or U1601 is defective.
The RESET circuitry or U1601 is defective.
NO
NO
NO
(28) Check RESET.
Is RESET waveform conrmed in TP[7850RESET], when power is turned on?
(If the waveform is not the reference waveform, proceed to NO.)
The RESET circuitry or U1302 is defective.
YES
NO

Denon AVR-2313CI Specifications

General

Receiver type	-
Audio output channels	7.1 channels
Power output per channel (1KHz@6 Ohm)	135 W
Power output per channel (20-20KHz@8 Ohm)	105 W
HDMI in	8
Audio (L/R) in	6
Composite video in	4
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
12V trigger	Yes
FM band range	87.5 - 107.9 MHz
Supported radio bands	FM
Internet radio services supported	Pandora, SIRIUS Internet Radio, Spotify, vTuner
Card reader integrated	No
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS 96/24, DTS Digital Surround, DTS Neo:6, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Volume control	Rotary

Weight and Dimensions

Depth	378.9 mm
Width	434.3 mm
Height	166.8 mm
Weight	10899 g
