Carefully check the left (L) and right (R) channels and the inputs and outputs, and be sure to interconnect
correctly.

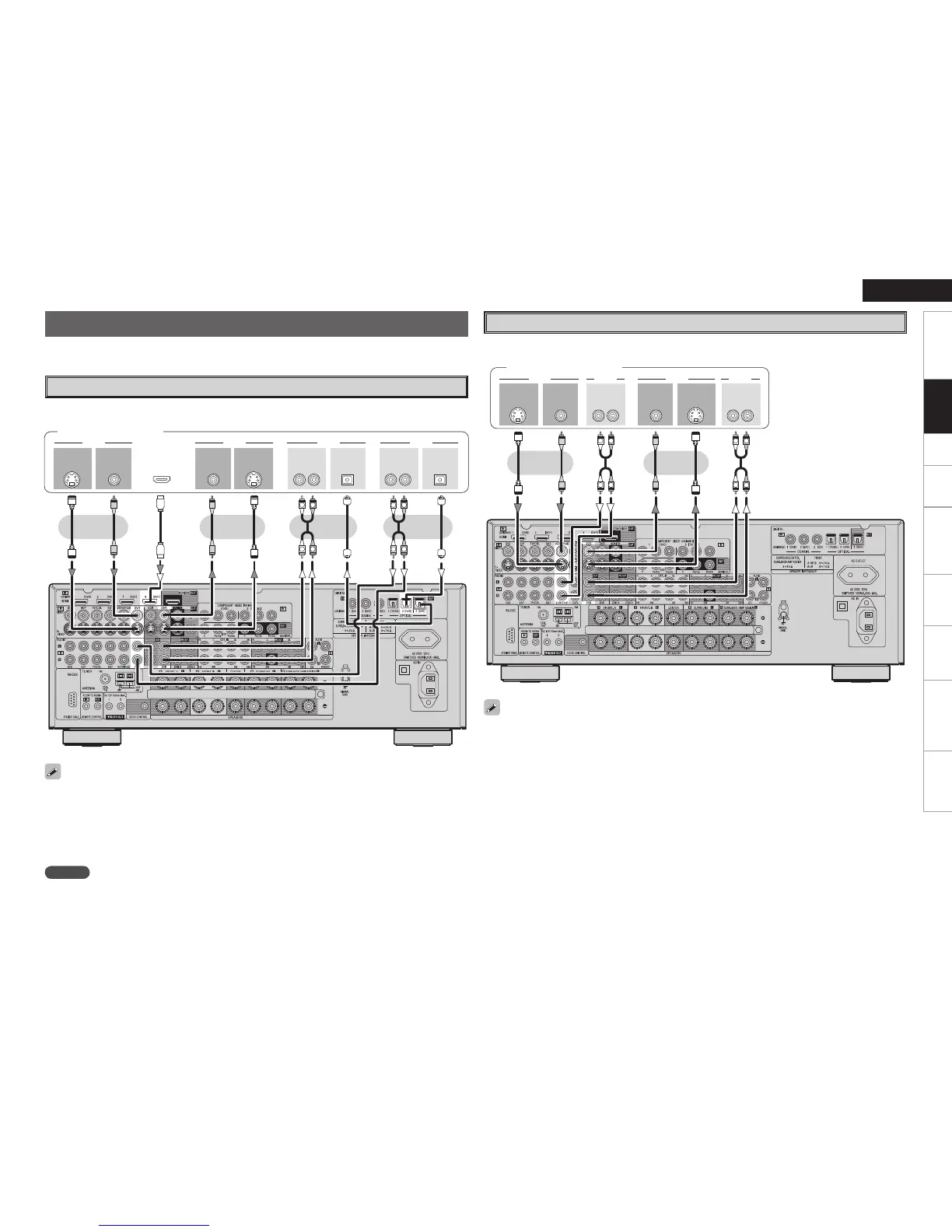

Connecting the Recording Components
Digital Video Recorder
Select the terminal to use and connect the device.
R
L
R
L
R
L
R
L
47*%&0 47*%&0
*/
3-3-
065
*/
"6%*0 "6%*07*%&07*%&0
065*/
015*$"- 015*$"-
*/
"6%*0 "6%*0
065
7*%&0 7*%&0
065
065
)%.*
Digital video recorder
NOTE
Do not connect the output of the component connected to the AVR-2809’s OPTICAL2 output connector to
any input connector other than OPTICAL2.
• Make analog connections if you wish to record analog audio signals.
• When recording via the AVR-2809, the playback device´s cable must be of the same type as the cable
used to connect the AVR-2809´s DVR OUT connector.
Example: TV IN → S-Video cable : DVR OUT → S-Video cable
TV IN → Video cable : DVR OUT → Video cable
• When using a component video cable for the video connection, make the settings at menu “Input Setup”
– “Assign” – “Component In” (vpage 37).
R
L
R
L
R
L
R
L
47*%&0 7*%&0
*/
3-3-
*/
*/
065
"6%*0 "6%*07*%&0 7*%&0
065
"6%*0 "6%*07*%&0 47*%&0
065
Video Cassette Recorder
Select the terminal to use and connect the device.
Video cassette recorder
• When recording via the AVR-2809, the playback device’s cable must be of the same type as the cable
used to connect the AVR-2809’s VCR OUT connector.
Example: TV IN → S-Video cable : VCR OUT → S-Video cable
TV IN → Video cable : VCR OUT → Video cable
• When using a component video cable for the video connection, make the settings at menu “Input Setup”
– “Assign” – “Component In” (vpage 37).

