For buttons not explained here, see the page indicated in parentheses ( ).
Part Names and Functions

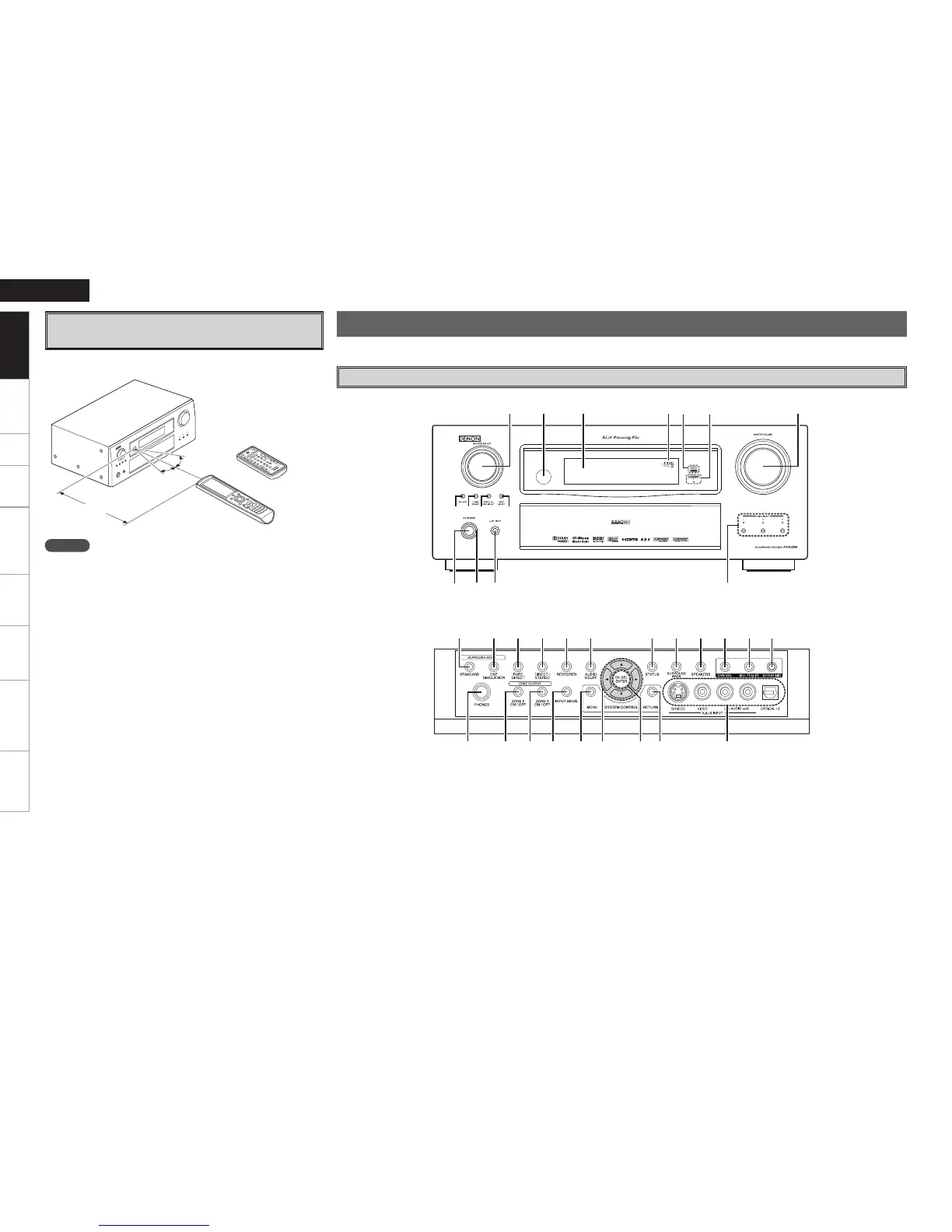

Front Panel
Getting Started
30°
30°
Approx. 7 m
Operating Range of the Remote Control
Unit
Point the remote control unit at the remote sensor when operating it.
NOTE
The set may function improperly or the remote control unit may not
operate if the remote control sensor is exposed to direct sunlight,
strong artificial light from an inverter type fluorescent lamp or infrared
light.

Connections Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifications
or
(RC-1102)
(RC-1106)
q w e
r
tQ1 Q0 o i u y
Q2 Q3 Q4 Q5
q Power operation button (ON/STANDBY) ····························· (48)
w Power indicator ······································································· (48)
e Power switch (hON jOFF) ·················································· (48)
r QUICK SELECT buttons / indicators ······································ (48)
t MASTER VOLUME control knob ············································ (48)
y AUDYSSEY DYNAMIC VOLUME indicator ··························· (44)
u HD AUDIO indicator ································································ (39)
i Master volume indicator
o Display
Q0 Remote control sensor ····························································· (3)
Q1 SOURCE SELECT knob ··························································· (48)
Q2 SOURCE button ······································································· (48)
Q3 TUNING PRESET button ························································· (49)
Q4 ZONE2/3 / REC SELECT button ············································· (64)
Q5 VIDEO SELECT button ···························································· (35)
Q6 Headphones jack (PHONES) ··················································· (48)
Q7 ZONE2 ON/OFF button ··························································· (64)
Q8 ZONE3 ON/OFF button ··························································· (64)
Q9 INPUT MODE button ··························································(16, 36)
W0 MENU button ············································································(19)
W1 Cursor buttons (uio p) ························································(19)
W2 CH SEL / ENTER button ·····················································(19, 55)
W5W6W7W8W9E0E1E2E3E4E5E6
W4Q6 Q7 Q8 Q9 W0 W3W1 W2
GWith the door openH
