Multi-zone

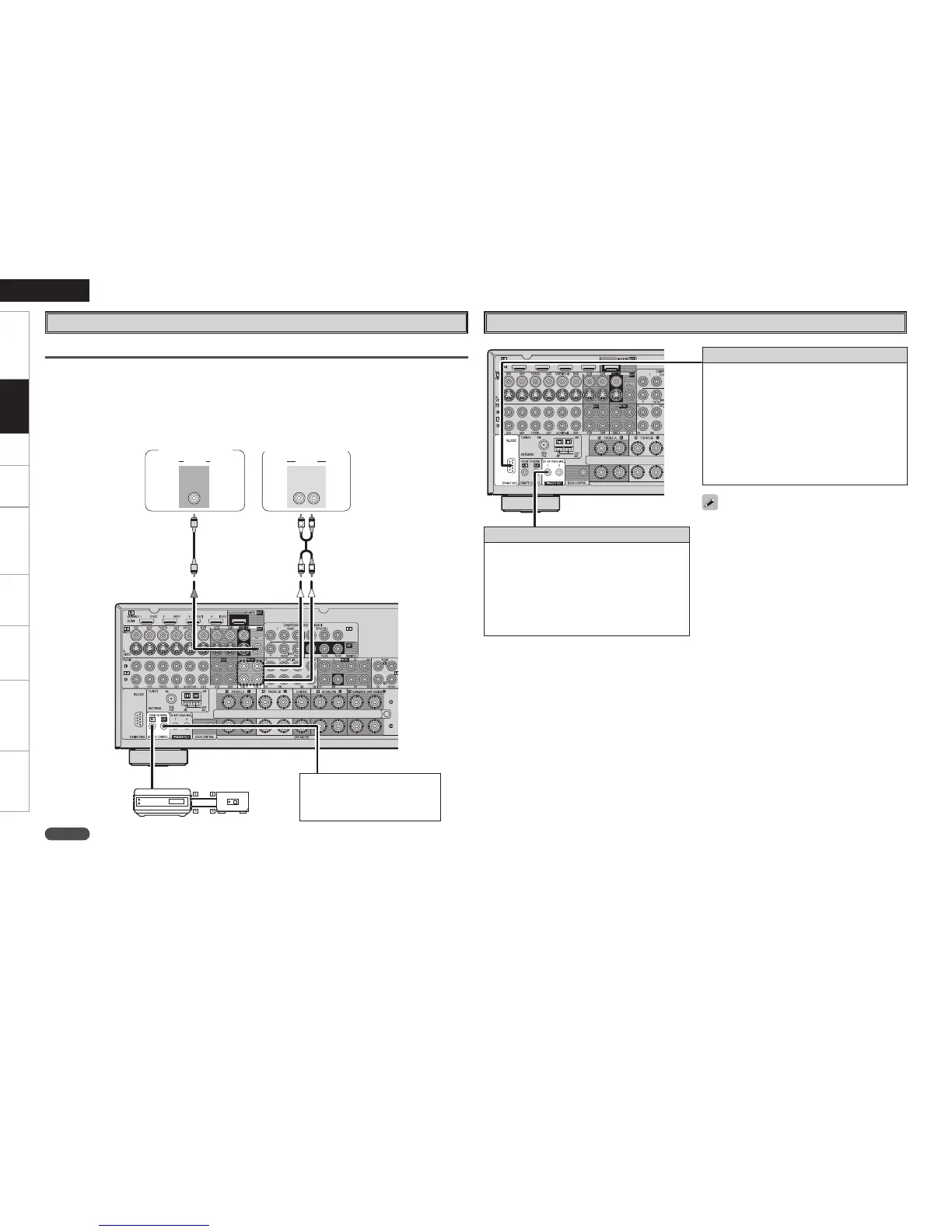

ZONE2 or ZONE3 Pre-out Connections
• If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 or ZONE3 pre-out
(variable or fixed level) connectors can be used to play a different program source in ZONE2 or ZONE3
the same time (vpage 62 ~ 64).
• When using an S-Video cable or a video cable for connection between the AVR-2809 and an input device,
connect to the video connectors.
• The ZONE2 video out is only for ZONE2.
Pre-main amplier
(ZONE2 or ZONE3)
Input
Output
Infrared
retransmitter
Infrared
sensor
NOTE
• For the audio output, use high quality pin-plug cords so that no induction humming or noise is produced.
• For instructions on installing and operating separately sold devices, refer to the respective devices’
operating instructions.
• To conduct multi-zone playback, see “Amp Assign / Multi-zone Connections and Operations” (vpage
62, 63).
External Controller
• When using in combination with an RF Remote
Controller (RC-7000CI, sold separately) or RF
Remote Receiver (RC-7001RCI, sold separately)
two-way communication with an RF Remote
Controller is possible.
The AVR-2809’s status information as well as
iPod can be browsed watching the RF Remote
Controller’s display. For details, refer to the
operating instructions of the respective devices.
• When used in combination with an RF Remote
Controller or RF Remote Receiver, make the
settings at menu “Manual Setup” – “Option
Setup” – “232C Port” – “2Way Remote”
(vpage 33).
• On the menu, when setting “Manual Setup”
– “Option Setup” – “232C Port” to “2Way
Remote”, you cannot use the RS-232C connector
as an external controller (vpage 33).
RS-232C connector
This connector is used for an external controller.
b If you wish to control the AVR-2809 from
an external controller using the RS-232C
connector, perform the operation below
beforehand.
q Turn on the AVR-2809’s power.
w Turn off the AVR-2809’s power from the
external controller.
e Check that the AVR-2809 is in the standby
mode.
Trigger output jack
The power of an external device equipped with
a trigger input jack can be turned on and off in
association with operations on the AVR-2809.
For details, see menu “Manual Setup” – “Option
Setup” – “Trigger Out” (vpage 33).
• Output: DC 12 V 150 mA MAX.
Check the trigger input conditions of the
connected device.
Monitor (ZONE2)
Extension jack for future use.
(Connect devices corresponding
with room to room function to
this jack.)
