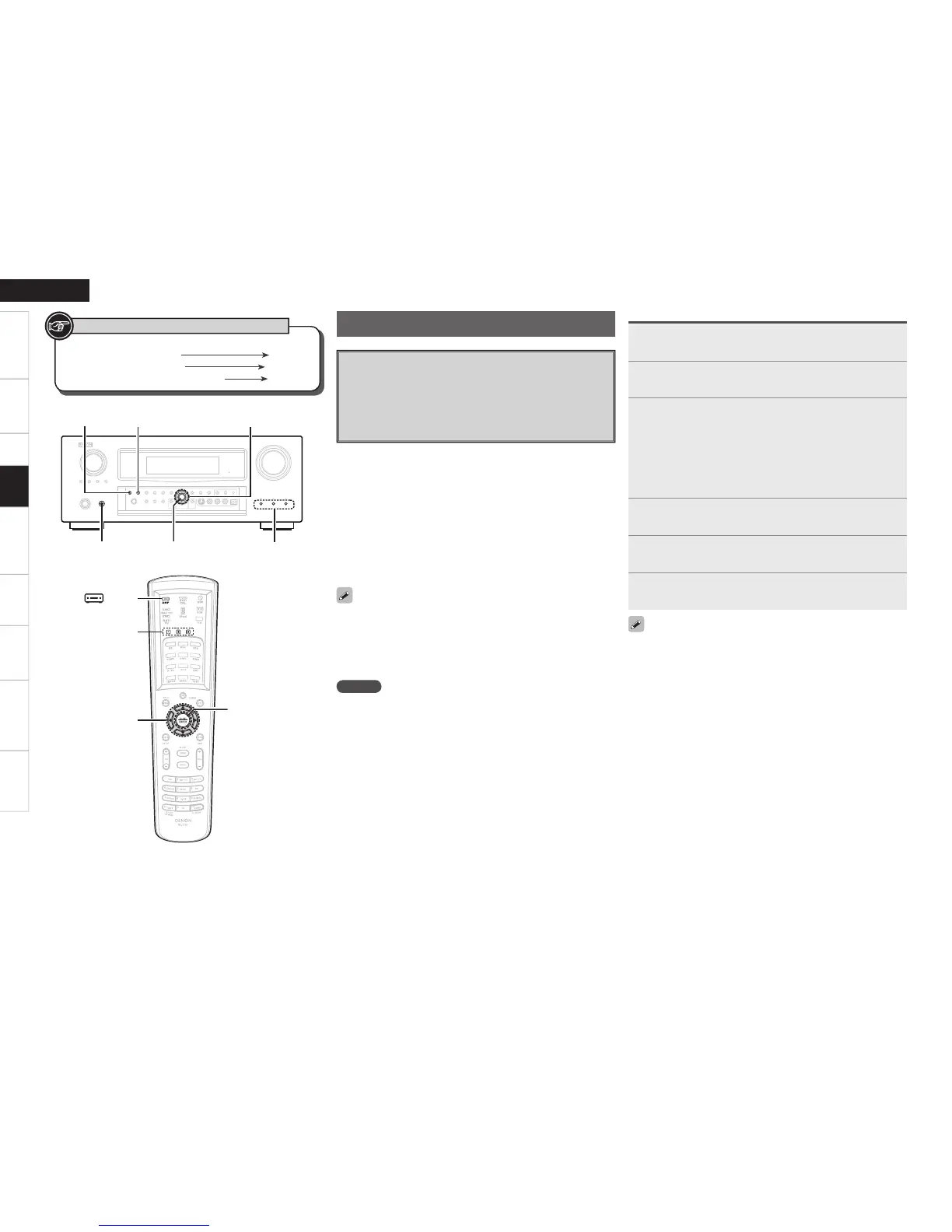

Getting Started Connections Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifi cations
Button located on both the main unit
and the remote control unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
Symbols used to indicate buttons in this manual
Convenient Functions
HDMI Control Function
When AVR-2809 is connected to a TV and player compatible
with HDMI control function, you can perform the following
operations.
Settings other than AVR-2809 settings must be made on the
respective devices. (Check the operating instructions of each
device for details.)
NOTE
When using the HDMI control function, do not assign HDMI input to “TV/
CBL” by setting “Input Setup” – “Assign” – “HDMI In” in the menu.
• When you want to listen to TV audio by AVR-2809, connect optical
digital or analog (vpage 14).
If the TV you are using has both connection jacks, use the optical
digital connection.
• When using these functions set as follows: menu “Manual Setup” –
“HDMI Setup” – “HDMI Control” set to “ON” (vpage 28).
• AVR-2809 power off can be linked to the TV power off step.
When you set “Output audio from amp” in the TV audio output
setup operation, you can switch the amp power on.
• You can switch audio output devices with a TV operation.
(When outputting from the TV speakers, output switches from
speakers connected to AVR-2809).
• You can adjust AVR-2809 volume in the TV volume adjustment
operation.
• You can switch AVR-2809 functions through linkage to TV input
function switching.
• When playing the player, the AVR-2809 input function switches to
the function of that player.
1
Connect the HDMI to the AVR-2809 with equipment
compatible with the HDMI control function.
2
Put the power on for all the equipment connected to
the HDMI.
3
Check the settings for all the equipment connected to
the HDMI and make HDMI available to them.
b Please consult the operating instructions for the connected
equipment to check the settings.
b Steps 1~3 do not have to be repeated once started.
b Carryout steps 2 and 3 should any of the equipment be plugged
out.
4
Switch the television input to the HDMI connected to
the AVR-2809.
5
Switch the AVR-2809 input to the HDMI input source
and check if the picture from the player is ok.
6
Put the television power on standby and check if the
AVR-2809 goes into standby.
If the AVR-2809 does not work please check the following.
• Is the menu “Manual Setup” – “HDMI Setup” – “HDMI Control”
(vpage 28) set to “ON”?
• Is the menu “Manual Setup” – “HDMI Setup” – “Power Off Control”
(vpage 29) set to “ON”?
• Is the control function used for the television HDMI properly set?
(Check the television operating instructions for details.)
• Should any of the operations below be performed, the interlocking
function may be reset, in which case, repeat step’s 2 and 3.
•
Menu “Input Setup” – “Assign” – “HDMI In” (vpage 37) setting
has changed.
•
There is a change to the connection between the equipment and
the HDMI, or an increase in equipment.
Operations
