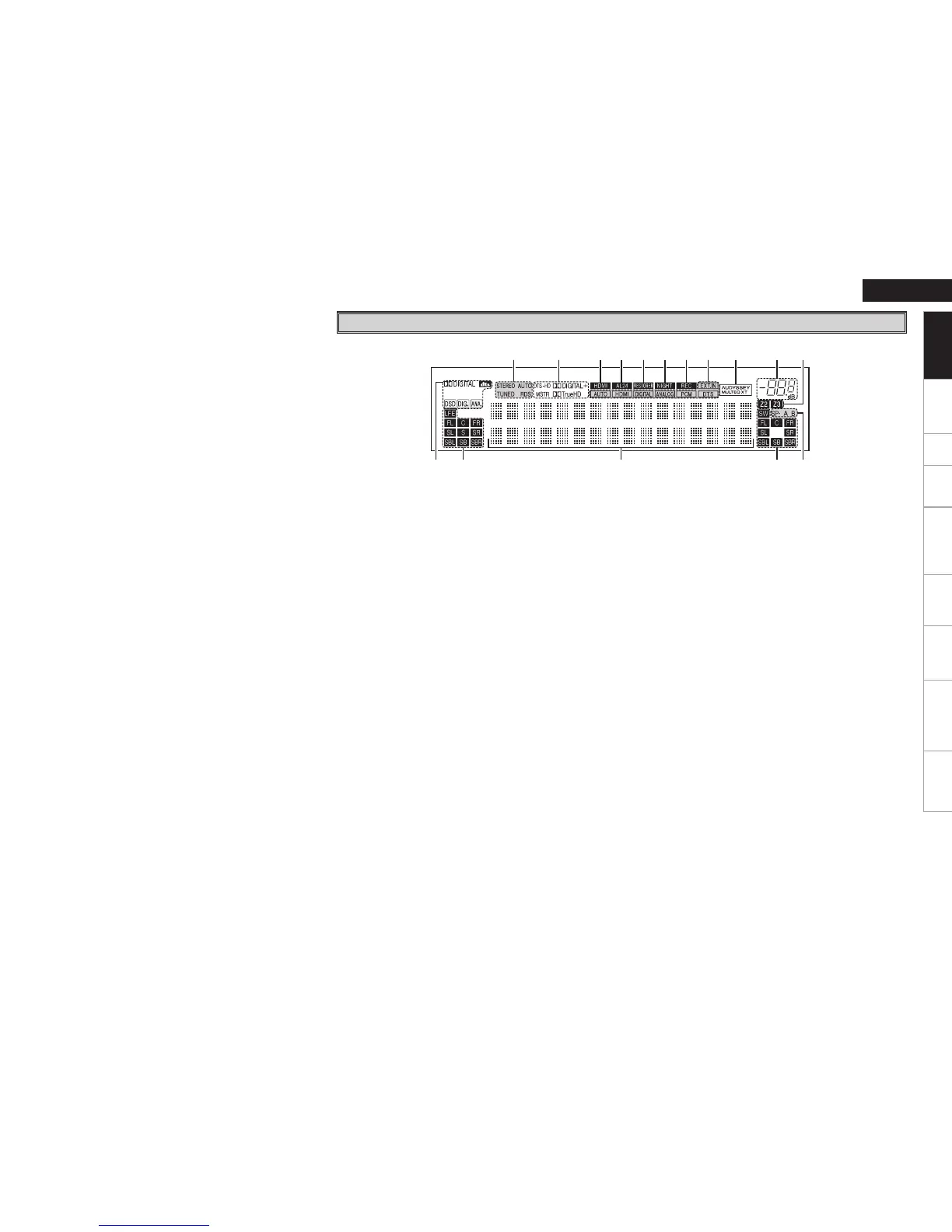

q Input signal indicators
w Input signal channel indicators
These light when digital signals are input.
e Information display
The input source name, surround mode, setting values and other
information are displayed here.
r Output signal channel indicators
t Front speaker indicator
These light according to the settings of the front A and B
speakers.
y Multi-zone indicators
These light when the power for the respective zone is turned on.
u Master volume indicator
i AUDYSSEY MULTEQ XT indicator
This lights when MultEQ XT is selected.
o Input mode indicators
Q0 Recording output source indicator
This lights when the REC OUT mode is selected.
Q1 NIGHT indicator
This lights when the night mode is selected.
Q2 RESTORER indicator
This lights when the RESTORER mode is selected.
Q3 AL24 indicator
This lights when AL24 Processing Plus is activated (vpage 67).
Q4 HDMI indicator
This lights when playing using HDMI connections.
Q5 Decoder indicators
These light when the respective decoders are operating.
Q6 Tuner reception mode indicators
This lights according to the reception conditions when the input
source is set to “TUNER”.
• AUTO
This lights when in the auto tuning mode.
• STEREO
In the FM mode, this lights when receiving analog stereo
broadcasts.
• TUNED
This lights when the broadcast is properly tuned in.
• RDS
This lights when receiving RDS broadcasts.
Display
Getting Started
W3 RETURN button ········································································(19)
W4 V.AUX INPUT connectors ························································(16)
W5 SETUP MIC jack ······································································· (22)
W6 MULTEQ XT button ································································· (43)
W7 DYNAMIC VOLUME button ···················································· (44)
b About Dynamic Volume
Audyssey Dynamic Volume™ solves the problem of large variations
in volume level between television programs, commercials, and
between the soft and loud passages of movies.
Audyssey Dynamic EQ™ is integrated into Dynamic Volume so that
as the playback volume is adjusted automatically, the perceived
bass response, tonal balance, surround impression, and dialog
clarity remain the same.
b About Dynamic EQ
Audyssey Dynamic EQ solves the problem of deteriorating sound
quality as volume is decreased by taking into account human
perception and room acoustics. Audyssey Dynamic EQ works in
tandem with Audyssey MultEQ
®
XT to provide well-balanced sound
for every listener at any volume level.
W8 SPEAKERS button ··································································· (48)
W9 SURROUND BACK button ······················································ (43)
E0 STATUS button ······································································· (46)
E1 AUDIO DELAY button ····························································· (45)
E2 RESTORER button ··································································· (45)
E3 DIRECT/STEREO button ························································· (39)
E4 PURE DIRECT button ······························································ (40)
E5 DSP SIMULATION button ······················································· (39)
E6 STANDARD button ·································································· (40)
