Denon AVR-2809 User Manual

Remote Control Unit
Getting Started

Connections Setup Playback Remote Control Multi-zone Information Troubleshooting
ENGLISH
Specifications
q
Q0
w
e
t
r
y
u
i
o
Q1
Q3
Q5
Q6
Q4
Q2
Q7
Q8
Q9
W0
W1
W3
W6
W8
W7
W5
W4
W2

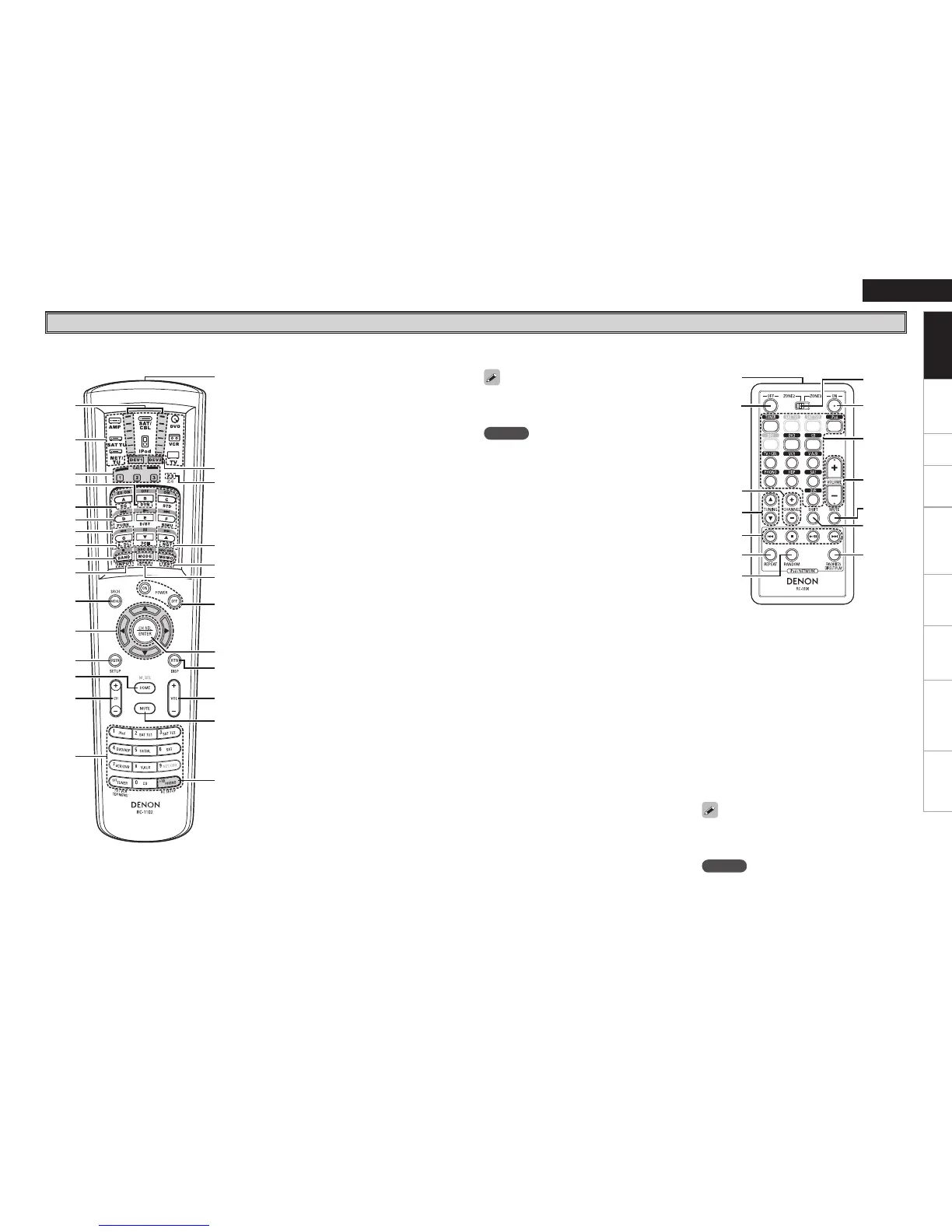

q Signal transmission indicator ··················· (56)
w Mode select buttons ·································· (56)
e Quick select / System call buttons ·····(55, 60)
r DYNAMIC VOLUME button (DYN) ············ (44)
t MultEQ XT button (EQ) ······························ (43)
y Surround mode buttons ····················(38 ~ 40)
• Standard button (STD) ··························· (38)
• Pure Direct button (PURE) ······················ (40)
• Direct/Stereo button (D/ST) ·················· (39)
• DSP simulation button (SIMU) ·············· (39)
• 7CH button ··············································· (39)
u System buttons ·····································(57, 58)
i Audio delay button (A. DL) ························(45)
o Tuner system buttons ································ (49)
Q0 Input mode button (INPUT) ······················· (36)
Q1 Menu / Search button (MENU / SRCH) ···· (19)
Q2 Cursor buttons (uio p) ························· (19)
Q3 RESTORER button (RSTR) ························· (45)
Q4 HOME button ·············································· (56)
Q5 Channel buttons (CH) ································· (49)
Q6 Input source select /
Number buttons ··································· (48, 49)
Q7 Remote control signal transmitter ············· (4)
Q8 Device select indicators (DEV1 / DEV2) ···(56)
Q9 ZONE3 select indicators (Z3) ····················· (56)
W0 Night button (NGT) ···································· (45)
W1 Test tone button (TEST) ···························· (27)
W2 Front speaker select button (SPKR) ········· (50)
W3 POWER buttons ·········································· (50)
W4 Channel select (CH SEL) /
ENTER button ······································· (19, 55)
W5 Return button (RTN) ·································· (19)
W6 Master volume control buttons (VOL) ·····(48)
W7 Muting button (MUTE) ························ (48, 64)
W8 Main remote control unit setup button
(RC SETUP) ·················································(56)
q
i
o
Q0
Q1
Q4
Q2
Q3
w
e
r
t
y
u
q Remote control signal transmitter ············· (4)
w Zone power off button (OFF) ···················· (64)
e CHANNEL buttons ······································ (61)
r TUNING buttons ········································· (61)
t System buttons ·········································· (61)
y REPEAT button ··········································· (61)
u RANDOM button ········································ (61)
i ZONE2/ZONE3 select switch ···················· (61)
o Zone power on button (ON) ······················ (64)
Q0 Input source select buttons ······················· (64)
Q1 Volume control buttons (VOLUME) ········· (64)
Q2 Muting button (MUTE) ······························ (64)
Q3 SHIFT button ··············································· (61)
n Main remote control unit (RC-1102) n Sub remote control unit (RC-1106)
The time for which the backlight stays on can
be changed (vpage 61 “Setting the Time the
Backlight Stays Lit”).
NOTE
• The M. SEL, NET/USB, SAT TU1 and SAT TU2
buttons cannot be used.
• The ZONE2 mode QUICK SELECT (1 ~ 3), A.DL,
NGT, INPUT, SPKR, TEST and surround mode
buttons cannot be used.
• The ZONE4 mode cannot be used.
NOTE
The DTU, SAT TU1 and SAT TU2 buttons cannot be
used.
The FAVORITES DIRECT PLAY button can function
when the control dock for iPod ASD-3N/3W is
used.
