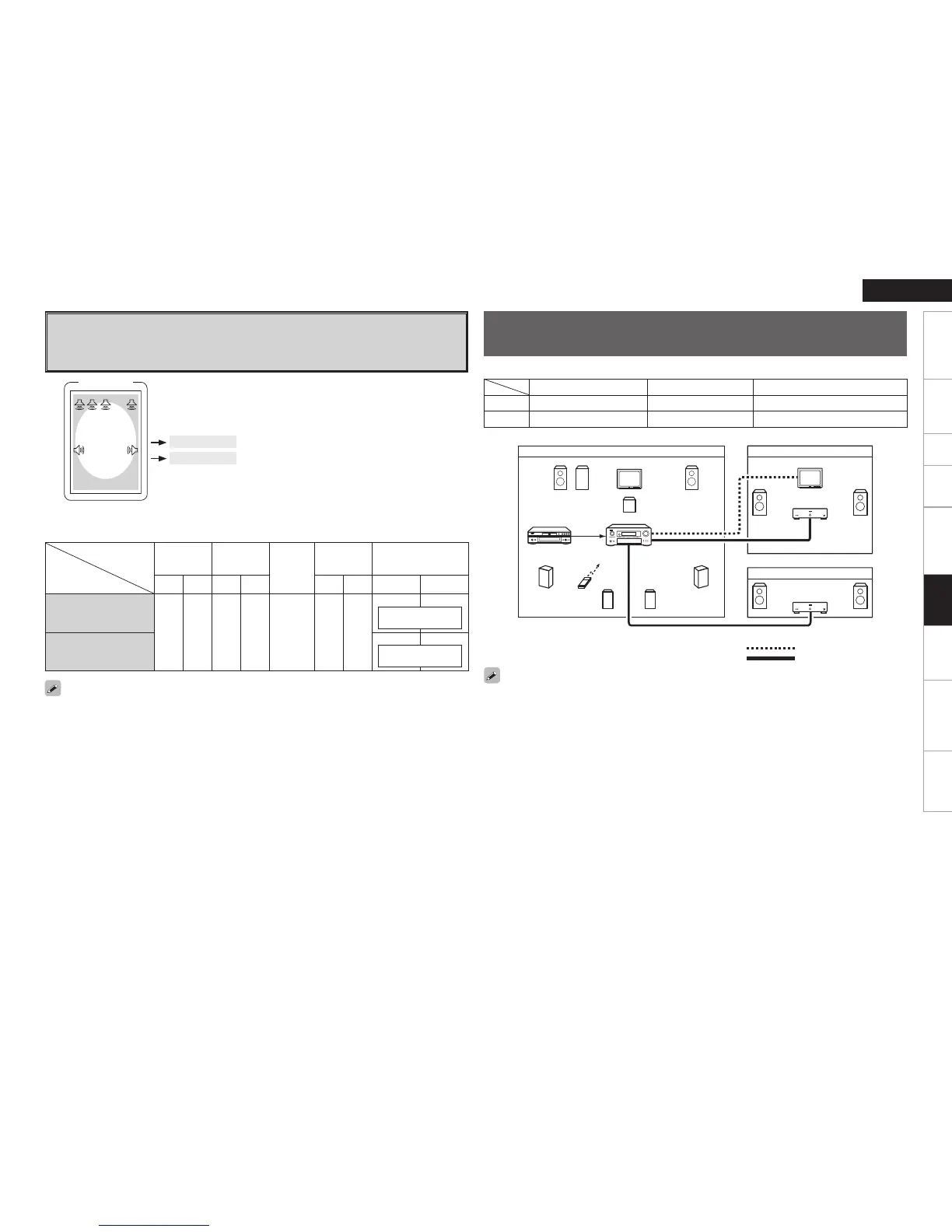

Setting 3 :
F Making bi-amp connections for the FL and FR channels in the MAIN ZONE
and conducting 5.1-channel playback
(switching with other modes not possible)
MAIN ZONE
5.1ch
FL/FR
Bi-Amp
Front A Bi-Amp
Amp Assign mode:
Front B Bi-Amp
n Amp Assign mode setting and speakers connected to the various speaker
terminals
Speaker terminal
Amp Assign mode
FRONT-A FRONT-B
CENTER
SURROUND
SURROUND BACK /
AMP ASSIGN
R L R L R L R L
Front A Bi-Amp
FR-A FL-A FR-B FL-B C SR SL
FR FL
Front B Bi-Amp
FR FL
FL-A/FR-A Bi-Amp
connection
FL-B/FR-B Bi-Amp
connection
The Front A or Front B channel for Bi-Amp use is output from the speakers connected to the SURR.BACK/
AMP ASSIGN terminals.
ZONE3 audio output
MAIN ZONE (7.1-channel system)
Monitor
ZONE2
ZONE3
Blu-ray Disc player /
DVD player
Input
ZONE2
audio output
ZONE2
video output
AVR-2809
Monitor
Power amplifier
Power amplifier
: Multi-zone video cable
: Multi-zone audio cable
• When only using one speaker for ZONE2 or ZONE3, set to “Mono”. In this case, the ZONE2 (ZONE3)
monaural output is output from the ZONE2 (ZONE3) pre-out L and R connectors, so connect as desired.
• Separate power amplifiers are needed for ZONE2 and ZONE3.
Connectors for audio output Audio signals Connectors for video output
ZONE2 ZONE2 PRE OUT Stereo ZONE2 VIDEO OUT
ZONE3 ZONE3 PRE OUT Stereo –
Multi-zone Settings and Operations with Zone
Output
Prepare power amplifiers for ZONE2 and ZONE3.
Remote
control unit
Multi-zone
To Next Page
