Denon AVR-4800 - Remote Control Unit Layout

17

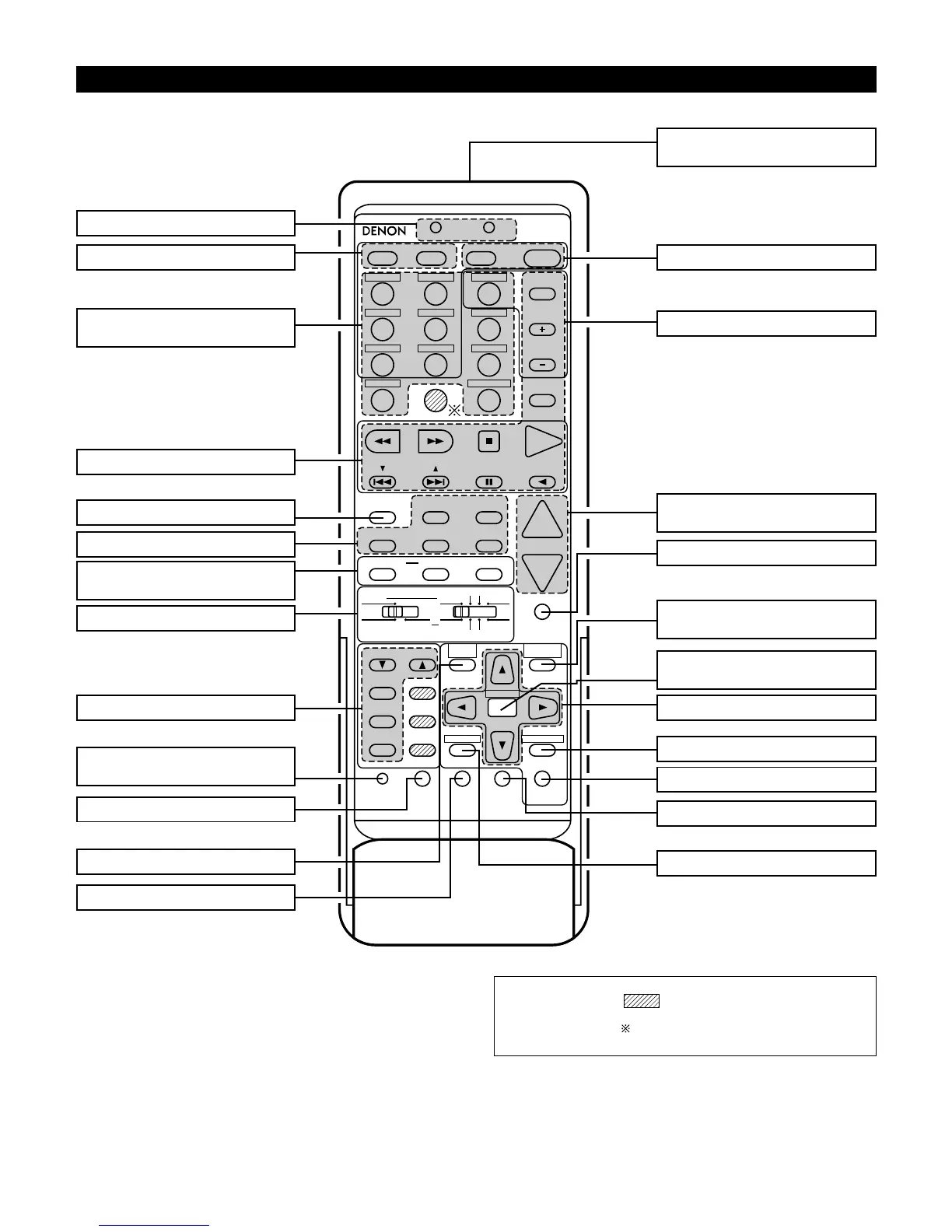

Remote control unit
• For details on the functions of these parts, refer to the pages given in parentheses ( ).
DVD
START LEARNED/TX
HOME THX CINEMA
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKER DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION 5CH / 7CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS V.AUX PHONO
VCR-1 CD
MD / TAPE-1 CHANNEL
VCR-2
TAPE-2 MON
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
RC-869
123
4
SET
A / B
CALL OFF
ENTER
ON / SOURCE
56
789
+10 0
LEDs (indicators)................................(36)
SYSTEM CALL buttons......................(37)
System buttons..................................(32)
HOME THX CINEMA button..............(49)
Surround buttons...............................(54)
Mode selector switches ....................(32)
Tuner system buttons..................(32, 57)
Test tone button.................................(46)
SYSTEM SETUP button.....................(18)
Multi source button ...........................(43)
USE/LEARN selector
button.................................................(36)
INPUT MODE selector
buttons...............................................(40)
Input source selector
buttons...............................................(40)
Remote control signal
transmitter .........................................(31)
Master volume control
buttons...............................................(41)
SURROUND PARAMETER
button.................................................(54)
Channel select/enter
button.................................................(18)
Power buttons ...................................(39)
Tuner buttons.....................................(58)
MUTING button .................................(42)
Cursor buttons...................................(18)
ON SCREEN button...........................(42)
DVD SETUP button............................(35)
SPEAKER button................................(42)
STATUS button.............................(35, 42)
NOTE
• The shaded buttons do not function with the AVR-4800.
(Nothing happens when they are pressed.)
The button indicated , however, can be used with the learning
function.
