Denon AVR-4800 User Manual

25

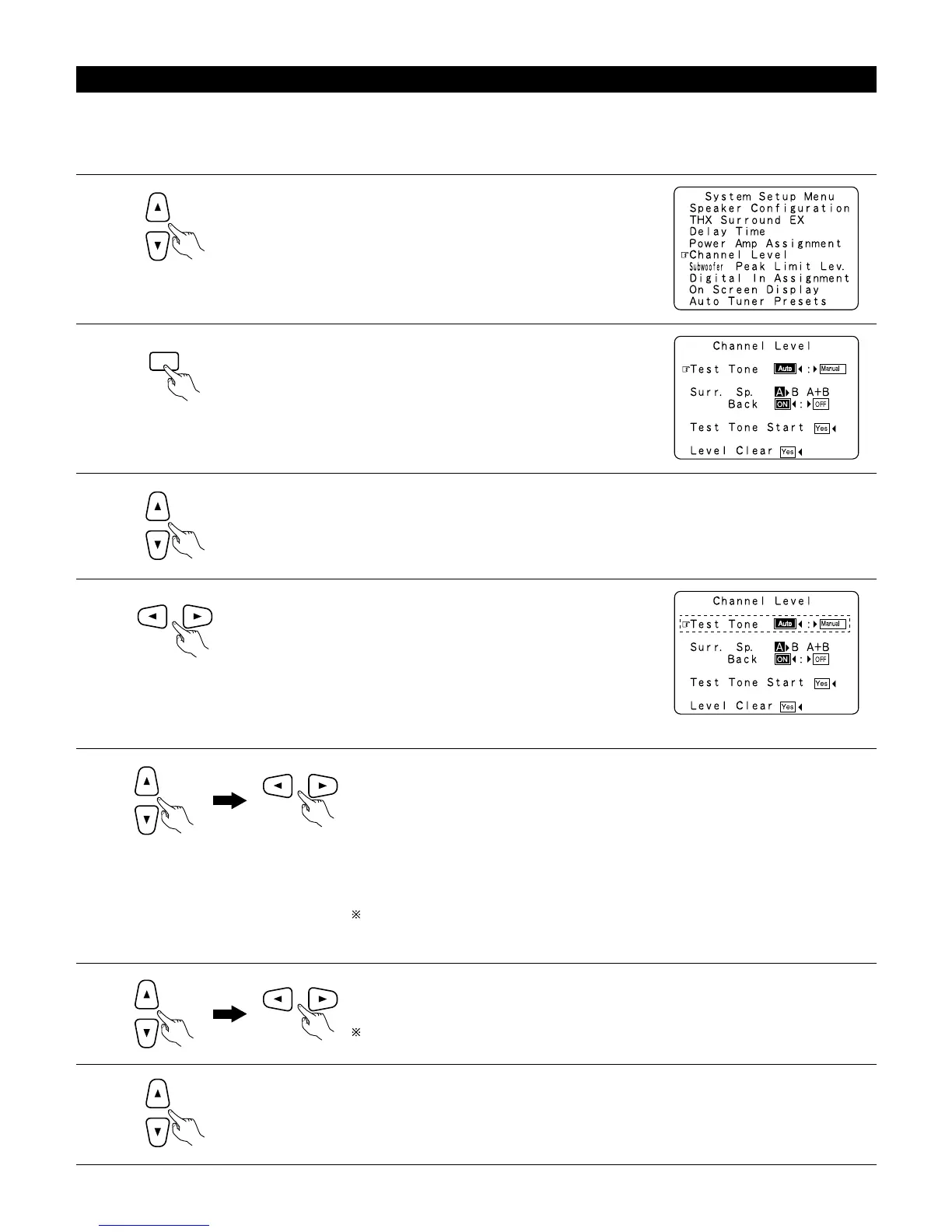

Setting the channel level
• Use this setting to adjust so that the playback level between the different channels is equal.
• From the listening position, listen to the test tones produced from the speakers to adjust the level.
• The level can also be adjusted directly from the remote control unit. (For details, see page 46.)
• When using both surround speakers A and B, their playback levels can be adjusted separately.
1
At the System Setup Menu select “Channel Level”.
2
Switch to the Channel Level screen.
ENTER
3
Select “Test Tone Mode”.
4
Select the mode.
Select “Auto” or “Manual”.
• Auto:
Adjust the level while listening to the test tones produced automatically
from the different speakers.
• Manual:
Select the speaker from which you want to produce the test tone to
adjust the level.
Example: When the “Auto” mode is selected
5
Select “Surr. Sp.”, then select the surround speaker(s) from which you want to produce the test
tone (A, B or A+B).
• Surr. Sp.: A
Adjusts the balance of the playback level between the channels when using surround speaker
A.
• Surr. Sp.: B
Adjusts the balance of the playback level between the channels when using surround speaker
B.
• Surr. Sp.: A+B
Adjusts the balance of the playback level between the channels when using surround
speakers A and B at the same time.
The “Surr. Sp.” can only be selected when both surround speakers A and B have been
selected at the “Speaker Configuration” (when both A and B have been set to “Large” or
“Small”).
7
Select “Test Tone Start”.
6
Select “Back” and make the surround back speaker settings.
Set to “ON” to play using the surround back speaker(s), to “OFF” if you do not want to use the
surround back speaker(s).
This is not displayed if “None” is set for “Surround Sp. Back” at the “Speaker Configuration”
screen.

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
