45

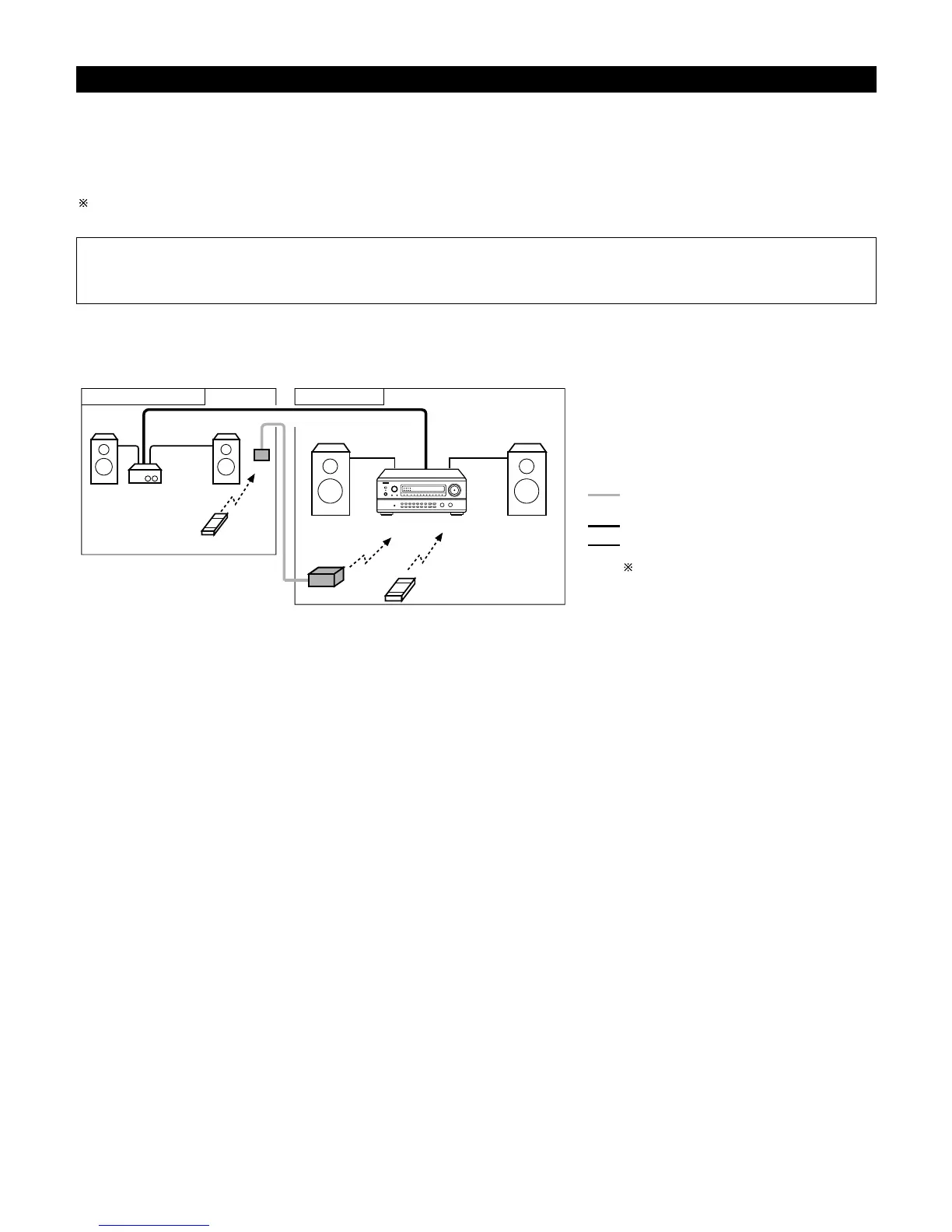

Multi-source and multi-zone playback
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
When the outputs of the MULTI SOURCE AUDIO OUT terminals are wired and connected to integrated amplifiers installed in other rooms,
different sources can be played in rooms other than the main room in which this unit and the playback devices are installed. (Refer to ANOTHER
ROOM on the diagram below.)
When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and connected between the main room and
another room, the remote-controllable devices in the main room can be controlled from another room using the remote control unit.
To control playback devices other than the ones above, either use that device’s remote control unit or preset a separately sold programmable
remote control unit.
NOTES:
For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
For instructions on installation and operation of separately sold devices, refer to the devices’ operating instructions.
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
RC-617
AVR-4800
RC-616
ANOTHER ROOM MAIN ROOM
PROGRAMMABLE
REMOTE
CONTROL UNIT
SYSTEM REMOTE
CONTROL UNIT RC-869
INTEGRATED
AMPLIFIER
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
MULTI SOURCE AUDIO signal cable
SPEAKER cable
Refer to CONNECTIONS on pages 6 to 15.
Room to Room Remote Control jacks
When the OUT jack is connected, the signals input to the IN jack are output from the OUT jack directly. (Example: RC616 signals are output.)
Do not connect only the OUT jack.
(The signals from the AVR-4800’s remote sensor are not output to this jack.)

Other manuals for Denon AVR-4800

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Denon AVR-4800 and is the answer not in the manual?

Denon AVR-4800 Specifications

Power Amplifier IconPower Amplifier
stereo rated output125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)
Analog Audio IconAnalog Audio
input sensitivity / input impedance200 mV / 47 kΩ/kohms
frequency response10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio105 dB (DIRECT mode)
Digital Audio IconDigital Audio
D/A output rated output2 V (at 0 dB playback)
total harmonic distortion0.005% (1 kHz, at 0 dB)
S/N ratio105 dB
Phono Equalizer IconPhono Equalizer
input sensitivity2.5 mV
RIAA deviation±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio74 dB (A weighting, with 5 mV input)
Video IconVideo
standard video jacks input/output level and impedance1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedanceY signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedanceY signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms
Tuner IconTuner
receiving range87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)MONO 80 dB, STEREO 75 dB
General IconGeneral
power supplyAC 120 V, 60 Hz
power consumption10.9 A
maximum external dimensions434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)
Remote Control Unit IconRemote Control Unit
batteriesR6P/AA Type (two batteries)
external dimensions70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight200 g (Approx. 7 oz) (including batteries)
