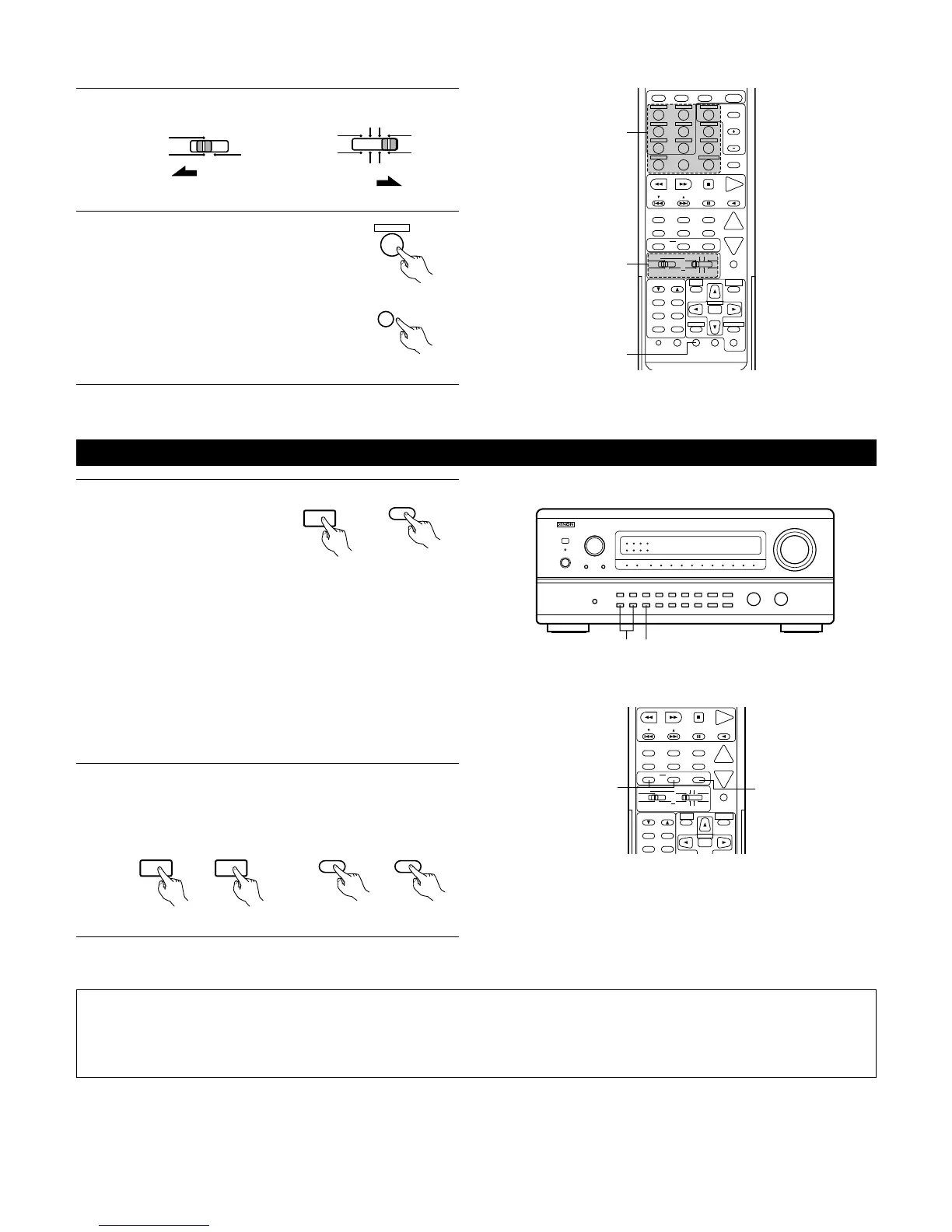

[3] Remote control unit operations during multi-source playback (selecting the source)
1
Set the slide switch to “AUDIO” and “MULTI”.
AVR/AVC VIDEO
AUDIO
DVD TV
VDP VCR
CD
MD
MULTI
DECK
(Remote control unit)
2
Press the input source
button.
The multi source switches
directly.
The remote control unit’s MULTI button
can be operated at positions other than
“MULTI”.
The multi source switches in order each
time the multi button is pressed.
CD
8
MULTI
(Remote control unit)
Example: CD
(Remote control unit)
DVD
START LEARNED/TX
HOME THX CINEMA
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKER SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION 5CH / 7CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS V.AUX PHONO
VCR-1 CD
MD / TAPE-1 CHANNEL
VCR-2
TAPE-2 MON
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
123
4
SET
A / B
CALL OFF
ENTER
ON / SOURCE
56
789
+10
0
2
1
2
Playback using the external input (EXT. IN) jacks
1
Set the external input
(6CH/8CH EXT. IN) mode.
Press the 6CH/8CH EXT. IN
(on the EXT. IN button on
the remote control unit) to
switch the external input.
Once this is selected, the input signals connected to the FL
(front left), FR (front right), C (center), SL (surround left) and
SR (surround right) channels of the EXT. IN jacks are output
directly to the front (left and right), center and surround (left
and right) speaker systems as well as the pre-out jacks
without passing through the surround circuitry.
In addition, the signal input to the SW (subwoofer) jack is
output to the PRE OUT SUBWOOFER jack.
When 6CH/8CH EXT. IN is selected, the input signals
connected to the EL (effect left) and ER (effect right) jacks
are output to the PRE OUT EFFECT/SB (left and right)
jacks.
6CH / 8CH
EXT. IN
EXT.IN
(Main unit) (Remote control unit)
2
Canceling the external input mode
To cancel the external input (6CH/8CH EXT. IN) setting, press
the INPUT MODE or ANALOG button to switch to the desired
input mode. (See page 40.)
INPUT MODE
ANALOG
(Remote control unit)
INPUT MODE
ANALOG
(Main unit)
• When the input mode is set to the external input (6CH/8CH EXT. IN), the play mode (DIRECT, STEREO, DOLBY/DTS SURROUND, HOME THX
CINEMA, WIDE SCREEN, 5CH/7CH STEREO or DSP SIMULATION) cannot be set.
NOTES:
• In play modes other than the external input mode, the signals connected to these jacks cannot be played. In addition, signals cannot be
output from channels not connected to the input jacks.
• The external input mode can be set for any input source. To watch video while listening to sound, select the input source to which the video
signal is connected, then set this mode.
21
HOME THX CINEMA
TUNING
BAND
TITLE
MENU/GUIDE
MODE
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION 5CH / 7CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
ENTER
2
1

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
