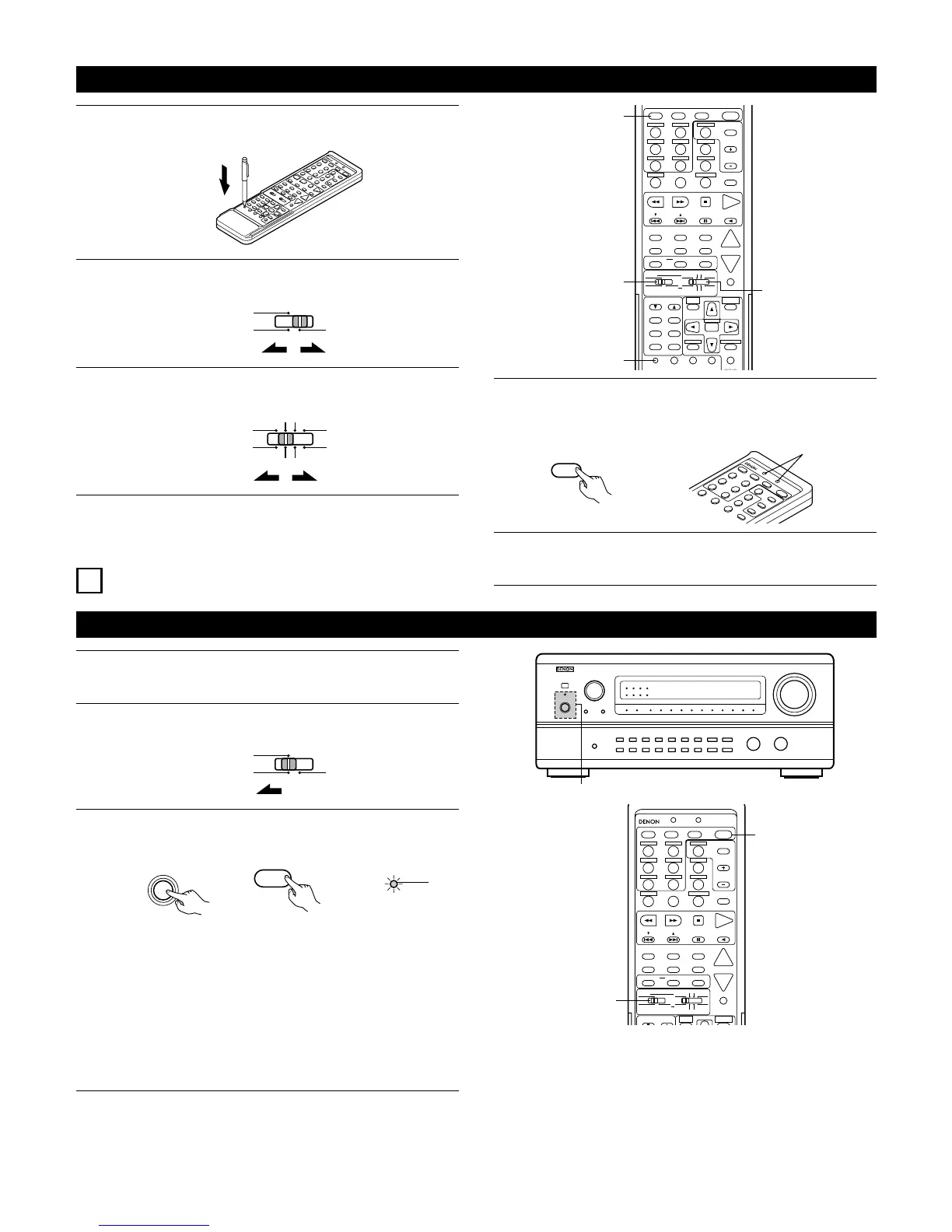

39
Clearing “learned” remote control signals
1
Press the USE/LEARN selector button with the tip of a pen,
etc., to set the learn mode.
2
To clear “learned” remote control signals, set the slide switch
to the position at which the signals were “learned”.
AVR/AVC VIDEO
AUDIO
3
Set the slide switch to the position at which the signals were
“learned”.
DVD TV
VDP VCR
CD
MD
MULTI
DECK
DVD
START LEARNED/TX
HOME THX CINEMA
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKER DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION
5CH / 7CH STEREO
STEREO
INPUT MODE
ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS V.AUX PHONO
VCR-1 CD
MD
/
TAPE-1
CHANNEL
VCR-2
TAPE-2 MON
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
123
4
SET
A / B
CALL OFF
ENTER
ON
/
SOURCE
56
789
+10
0
4
2
1,5
3
4
Press the SYSTEM CALL SET button, and hold it in for at least
four seconds.
When both the START and LEARNED/TX LEDs light
simultaneously, all the stored codes are cleared.
SET
Lit
5
Press the USE/LEARN selector button.
9
OPERATION
Before operating
1
Refer to “CONNECTIONS” (pages 6 to 15) and check that all
connections are correct.
2
Set the remote control unit’s slide switch to the AUDIO
position. (only when operating with the remote control unit)
AVR/AVC VIDEO
AUDIO
3
Turn on the power.
Press the POWER operation switch (button).
ON / STANDBY
ON
/
SOURCE
ON/STANDBY
Lights
(Main unit) (Remote control unit)
3
DVD
START LEARNED/TX
HOME THX CINEMA
TUNING
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION
5CH / 7CH STEREO
STEREO
INPUT MODE
ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS V.AUX PHONO
VCR-1 CD
MD
/
TAPE-1
CHANNEL
VCR-2
TAPE-2 MON
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM
SETUP
SURROUND
PARAMETER
RC-869
123
4
SET
A / B
CALL OFF
ON
/
SOURCE
56
789
+10
0
2
3
When pressed, the power turns on and the display lights. The
sound is muted for several seconds, after which the unit operates
normally.
When pressed again, the power turns off, the standby mode is set
and the display turns off.
Whenever the ON/STANDBY button is in the STANDBY state, the
apparatus is still connected to the AC line voltage. Please be sure
to unplug the cord when you leave home for, say, a vacation.
