Denon AVR-4800 User Manual

23

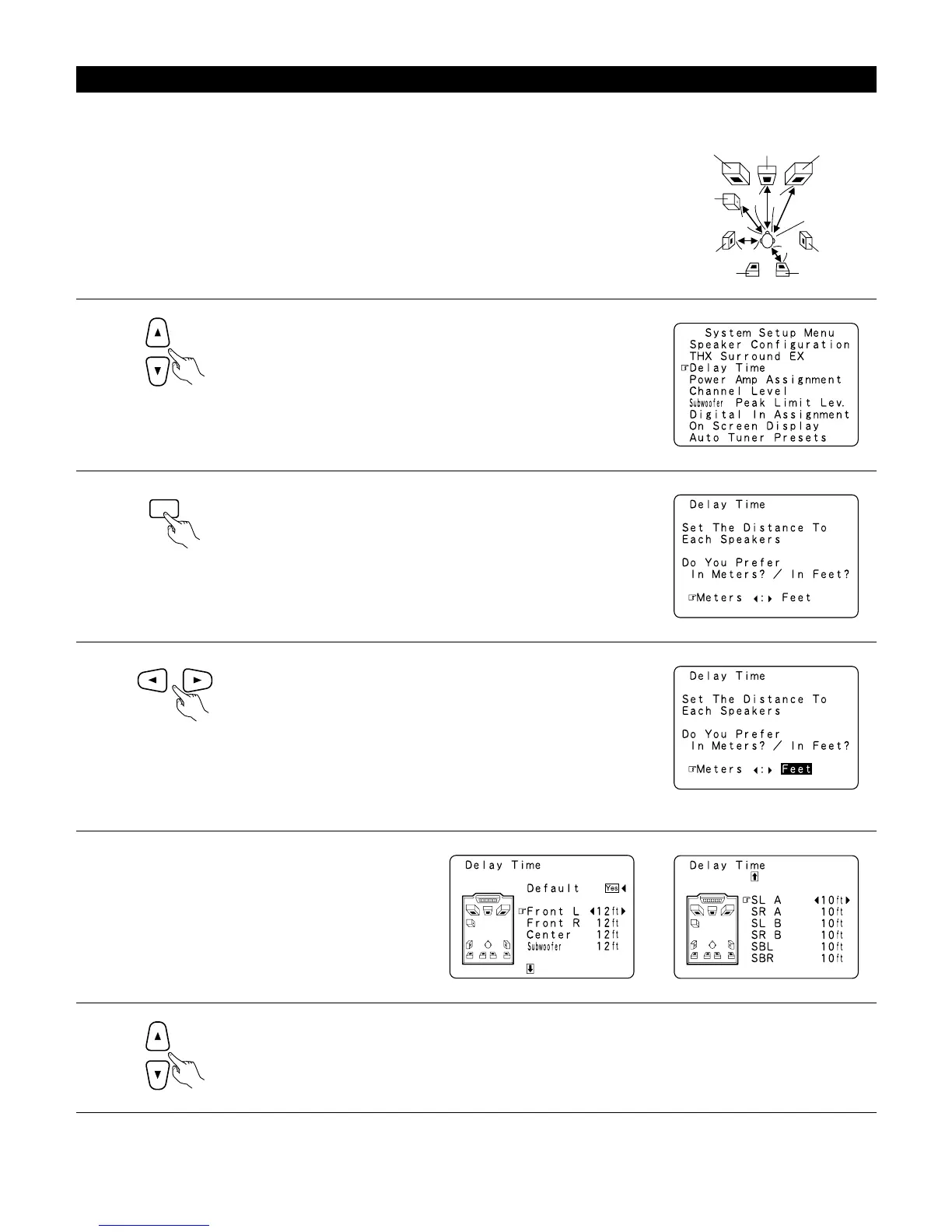

Setting the delay time
• Input the distance between the listening position and the different speakers to set the delay time for the surround mode.
• The delay time can be set separately for surround speakers A and B.
Preparations:
Measure the distances between the listening position and the speakers (L1 to L5 on the diagram at
the right).
L1: Distance between center speaker and listening position
L2: Distance between front speakers and listening position
L3: Distance between surround speakers and listening position
L4: Distance between surround back speakers and listening position
L5: Distance between subwoofer and listening position
L1
L2
L5
L3
L4
1
At the System Setup Menu select “Delay Time”.
Center FRFL
Subwoofer
SL
Listening position
SR
SBRSBL
2
Switch to the Delay Time screen.
ENTER
3
Select the desired unit, meters or feet.
Select (darken) the desired units, “Meters” or “Feet”.
4
Once “Meters” or “Feet” is selected in Step 3, the
Delay Time screen appears automatically.
5
Select the speaker to be set.
Example: When “Feet” is selected

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
