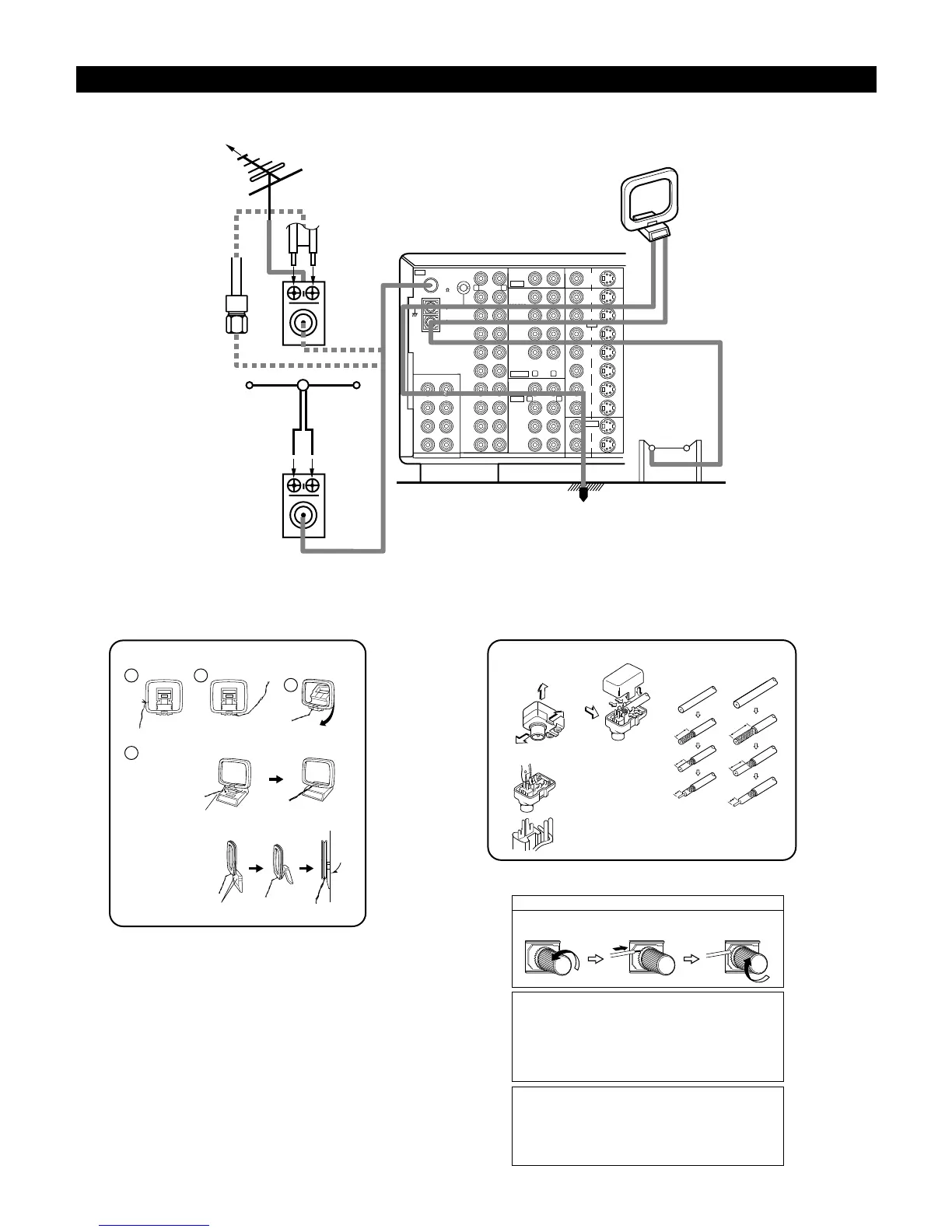

Connecting the antenna terminals
R L
OUT
OUT
OUT
PRE OUT
PHONO
FRONT
CENTER
EFECT
/ SB
SURROUND
SIGNAL
GND
CD
DVD
VDP
TV
/
DBS
V.AUX
VCR
-
1
VCR
-
2
MD
/
TAPE-1
TAPE-2
MONITOR
SOURCE
MULTI
OUT-1
MONITOR
OUT-2
DVD
VDP
TV
/
DBS
V.AUX
VCR
-
1
VCR
-
2
VCR
-
1
VCR
-
2
VCR
-
1
VCR
-
2
MD
/
TAPE-1
TAPE-2
6CH EXT. IN
FR
SW
SR
ER
FL
C
SL
EL
8CH EXT. IN AUDIO VIDEO S-VIDEO
SUB
WOOFER
R L
R L
IN
IN
LOOP
ANT.
AM
FM
COAX.
75
ANTENNA TERMINALS
SB-R
SB/
SB-L
DIRECTION OF
BROADCASTING
STATION
AM LOOP
ANTENNA
(Supplied)
FM ANTENNA
GROUND
AM OUTDOOR
ANTENNA
300 Ω/ohms
TERMINALS
FM ANTENNA
ADAPTER
(Supplied)
FM INDOOR
ANTENNA
(Supplied)
300 Ω/ohms
FEEDER
CABLE
75 Ω/ohms
COAXIAL
CABLE
F-type converter plug (attached)
• When using the FM antenna
attach to this apparatus
• An F-type FM antenna cable plug can be connected directly.
• If the FM antenna cable’s plug is not of the F-type, connect using the
included antenna adapter.
AM loop antenna assembly
Connect to the AM
antenna terminals.
Bend in the reverse
direction.
Remove the vinyl tie
and take out the
connection line.
a. With the antenna
on top any stable
surface.
b. With the antenna
attached to a
wall.
Mount
Installation hole
Mount on wall, etc.
14mm
9mm
14mm
19mm
5mm
5mm
5C-2V3C-2V
Open the cover
ANTENNA ADAPTER
REMOVE
CLAMP
75 Ω/ohms COAXIAL CABLE
CLAMP
CLAMP
PULL
PULL
SHUT
Connection of AM antennas
1. Loosen by turning
counterclockwise.
2. Insert the
cord.
3. Tighten by turning
clockwise.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC which provides
guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
Notes:
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect
the AM loop antenna.
• Make sure AM loop antenna lead terminals do not touch
metal parts of the panel.
FM antenna adapter assembly

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
