Denon AVR-4800 User Manual

58

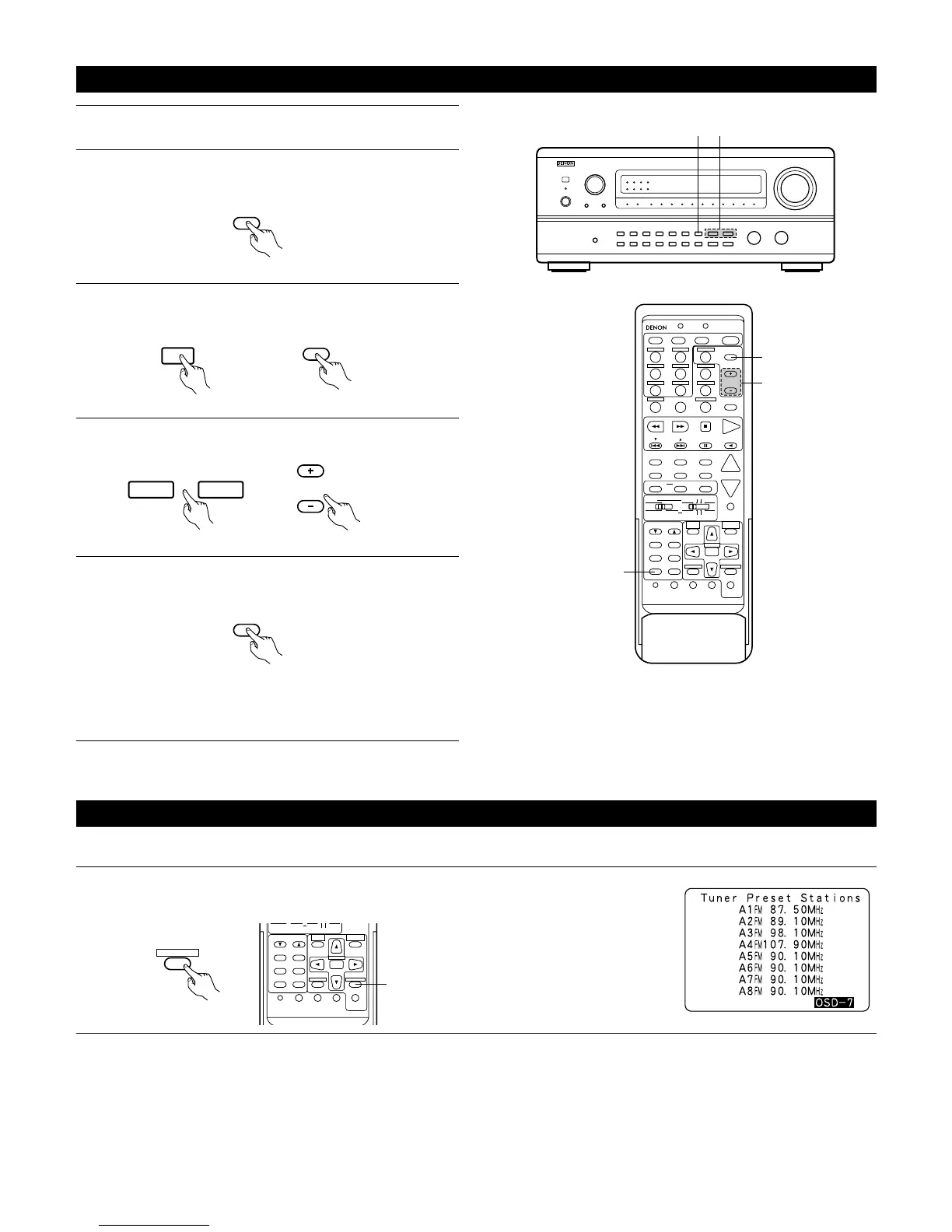

Preset memory
1
Use the “Auto tuning” or “Manual tuning” operation to tune
in the station to be preset in the memory.
2
Press the MEMORY button.
MEMORY
3
Press the SHIFT button and select the desired memory block
(A to E).
SHIFT
SHIFT
(Main unit) (Remote control unit)
4
Press the PRESET UP or DOWN button to select the desired
preset channel (1 to 8).
DOWN UP
CHANNEL
(Main unit) (Remote control unit)
5
Press the MEMORY button again to store the station in the
preset memory.
MEMORY
To preset other channels, repeat steps 2 to 5.
A total of 40 broadcast stations can be preset — 8 stations
(channels 1 to 8) in each of blocks A to E.
34
DVD
START LEARNED/TX
HOME THX CINEMA
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKER DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
DOLBY / DTS
SURROUND
DIRECT
DSP SIMULATION 5CH / 7CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS V.AUX PHONO
VCR-1 CD
MD / TAPE-1 CHANNEL
VCR-2
TAPE-2 MON
TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
RC-869
123
4
SET
A / B
CALL OFF
ENTER
ON / SOURCE
56
789
+10
0
3
4
2,5
Checking the preset stations
The preset broadcast stations can be checked on the on screen display.
1
Press the ON SCREEN button repeatedly until the “Tuner Preset Stations” screen appears on the
on screen display.
RETURN
ON SCREEN
TUNING
BAND
TITLE
MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKER DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
AVR/AVC VIDEO DVD TV
VDP VCR
SYSTEM
SETUP
SURROUND
PARAMETER
CH SELECT
SELECT
ENTER
1

Denon AVR-4800 Specifications

Power Amplifier

stereo rated output	125 W + 125 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
surround rated output	125 W x 5 ch (8 Ω/ohms, 1 kHz with 0.7% T.H.D.)
dynamic power	170 W x 2 ch (8 Ω/ohms), 270 W x 2 ch (4 Ω/ohms), 350 W x 2 ch (2 Ω/ohms)

Analog Audio

input sensitivity / input impedance	200 mV / 47 kΩ/kohms
frequency response	10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode)
S/N ratio	105 dB (DIRECT mode)

Digital Audio

D/A output rated output	2 V (at 0 dB playback)
total harmonic distortion	0.005% (1 kHz, at 0 dB)
S/N ratio	105 dB

Phono Equalizer

input sensitivity	2.5 mV
RIAA deviation	±1 dB (20 Hz to 20 kHz)
signal-to-noise ratio	74 dB (A weighting, with 5 mV input)

Video

standard video jacks input/output level and impedance	1 Vp-p, 75 Ω/ohms
S-video jacks input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; C signal — 0.286 Vp-p, 75 Ω/ohms
color component video terminal input/output level and impedance	Y signal — 1 Vp-p, 75 Ω/ohms; Cb signal — 0.7 Vp-p, 75 Ω/ohms; Cr signal — 0.7Vp-p, 75 Ω/ohms

Tuner

receiving range	87.5 MHz ~ 107.9 MHz, 520 kHz ~ 1710 kHz
usable sensitivity	1.0 µV (11.2 dBf), 18 µV
signal to noise ratio (IHF-A)	MONO 80 dB, STEREO 75 dB

General

power supply	AC 120 V, 60 Hz
power consumption	10.9 A
maximum external dimensions	434 (W) x 181 (H) x 494 (D) mm (17-3/32” x 7-1/8” x 19-29/64”)

Remote Control Unit

batteries	R6P/AA Type (two batteries)
external dimensions	70 (W) x 215 (H) x 24 (D) mm (2-3/4” x 8-15/32” x 15/16”)
weight	200 g (Approx. 7 oz) (including batteries)
